P12

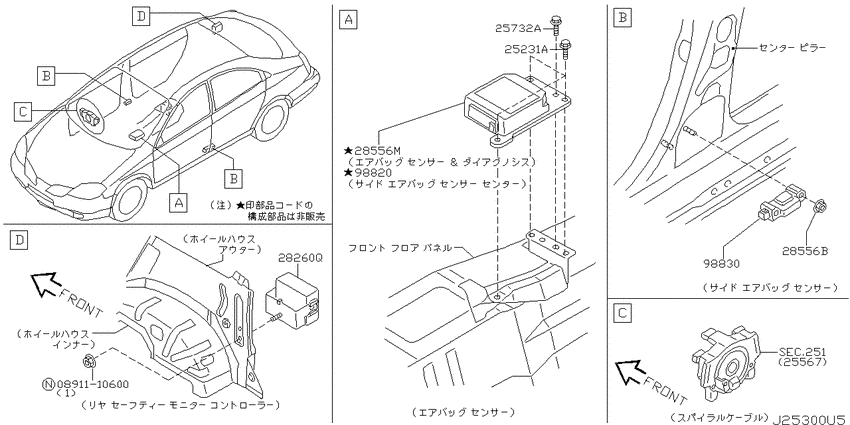

Electrical unit (2003-07-01 ~ ; ﾎﾞﾃﾞｨ(1); S +W) 4
| # | OEM | Part name |
|---|---|---|
| 28260 | 28260-AU000 | Controller Assy-Rear, Safety Monitor |
| 28556 | 28556-AU025 | Sensor & Diagnosis-Air Bag |
| 98820 | 98820-AW725 | Sensor-Side Air Bag Center |
| 891110600 | 08911-10600 | ナツト,ヘクサゴン |
| OEM | Part name | Category |
|---|---|---|
| 08911-10600 | ナツト,ヘクサゴン | Electrical unit (2003-07-01 ~ ; ﾎﾞﾃﾞｨ(1); S +W) |
| 28260-AU000 | Controller Assy-Rear, Safety Monitor | Electrical unit (2003-07-01 ~ ; ﾎﾞﾃﾞｨ(1); S +W) |
| 28556-AU025 | Sensor & Diagnosis-Air Bag | Electrical unit (2003-07-01 ~ ; ﾎﾞﾃﾞｨ(1); S +W) |
| 98820-AW725 | Sensor-Side Air Bag Center | Electrical unit (2003-07-01 ~ ; ﾎﾞﾃﾞｨ(1); S +W) |
