Search › Model › P12
P12

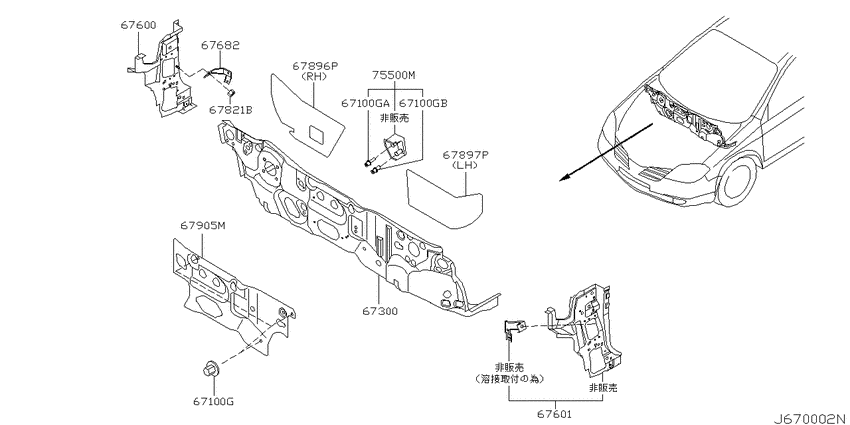

Dash panel & fitting (2003-07-01 ~ ; S +W) 9
| # | OEM | Part name |
|---|---|---|
| 67100 | 67841-AU000 | Clip-Canoe |
| 67100 | 67841-AU001 | Clip-Canoe |
| 67300 | 67300-AV230 | Dash-Lower |
| 67600 | 76240-AW000 | Dash-Side, Rh |
| 67601 | 76241-AU000 | Dash-Side, Lh |
| 67682 | 68128-AU000 | Bracket-Instrument Mounting Side, Rh |
| 67896 | 67357-4M420 | Insulator-Dash Lower, Rh |
| 67897 | 67357-4M410 | Insulator-Dash Lower, Lh |
| 75500 | 67840-AU010 | Footrest Assy |
| OEM | Part name | Category |
|---|---|---|
| 67300-AV230 | Dash-Lower | Dash panel & fitting (2003-07-01 ~ ; S +W) |
| 67357-4M410 | Insulator-Dash Lower, Lh | Dash panel & fitting (2003-07-01 ~ ; S +W) |
| 67357-4M420 | Insulator-Dash Lower, Rh | Dash panel & fitting (2003-07-01 ~ ; S +W) |
| 67840-AU010 | Footrest Assy | Dash panel & fitting (2003-07-01 ~ ; S +W) |
| 67841-AU000 | Clip-Canoe | Dash panel & fitting (2003-07-01 ~ ; S +W) |
| 67841-AU001 | Clip-Canoe | Dash panel & fitting (2003-07-01 ~ ; S +W) |
| 68128-AU000 | Bracket-Instrument Mounting Side, Rh | Dash panel & fitting (2003-07-01 ~ ; S +W) |
| 76240-AW000 | Dash-Side, Rh | Dash panel & fitting (2003-07-01 ~ ; S +W) |
| 76241-AU000 | Dash-Side, Lh | Dash panel & fitting (2003-07-01 ~ ; S +W) |
