P12

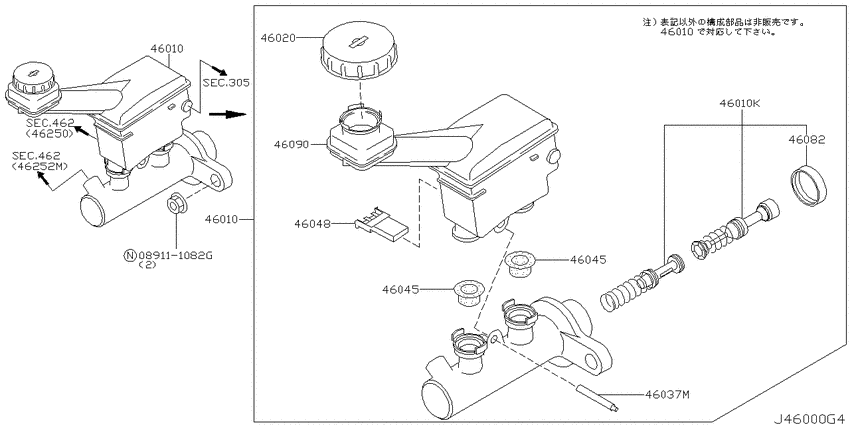

Brake master cylinder (2003-09-01 ~ ; ヒョウジュン; QR25DD) 9
| # | OEM | Part name |
|---|---|---|
| 46010 | 46010-AU000 | Cylinder Assy-Brake Master |
| 46010 | 46010-AU006 | Cylinder Assy-Brake Master |
| 46010 | 46011-AU026 | Piston Kit-Tandem Brake Master Cylinder |
| 46020 | 46020-64J21 | Cap Assy-Oil Reservoir Tank |
| 46037 | 46037-5V200 | Pin-Spring |
| 46048 | 46048-64J21 | Indicator Assy-Level |
| 46082 | 46082-5V200 | Ring-Snap |
| 46082 | 46082-R9000 | Ring-Snap |
| 46090 | 46091-AU000 | Tank-Oil Reservoir |
| OEM | Part name | Category |
|---|---|---|
| 46010-AU000 | Cylinder Assy-Brake Master | Brake master cylinder (2003-09-01 ~ ; ヒョウジュン; QR25DD) |
| 46010-AU006 | Cylinder Assy-Brake Master | Brake master cylinder (2003-09-01 ~ ; ヒョウジュン; QR25DD) |
| 46011-AU026 | Piston Kit-Tandem Brake Master Cylinder | Brake master cylinder (2003-09-01 ~ ; ヒョウジュン; QR25DD) |
| 46020-64J21 | Cap Assy-Oil Reservoir Tank | Brake master cylinder (2003-09-01 ~ ; ヒョウジュン; QR25DD) |
| 46037-5V200 | Pin-Spring | Brake master cylinder (2003-09-01 ~ ; ヒョウジュン; QR25DD) |
| 46048-64J21 | Indicator Assy-Level | Brake master cylinder (2003-09-01 ~ ; ヒョウジュン; QR25DD) |
| 46082-5V200 | Ring-Snap | Brake master cylinder (2003-09-01 ~ ; ヒョウジュン; QR25DD) |
| 46082-R9000 | Ring-Snap | Brake master cylinder (2003-09-01 ~ ; ヒョウジュン; QR25DD) |
| 46091-AU000 | Tank-Oil Reservoir | Brake master cylinder (2003-09-01 ~ ; ヒョウジュン; QR25DD) |
