Search › Model › P11E
P11E

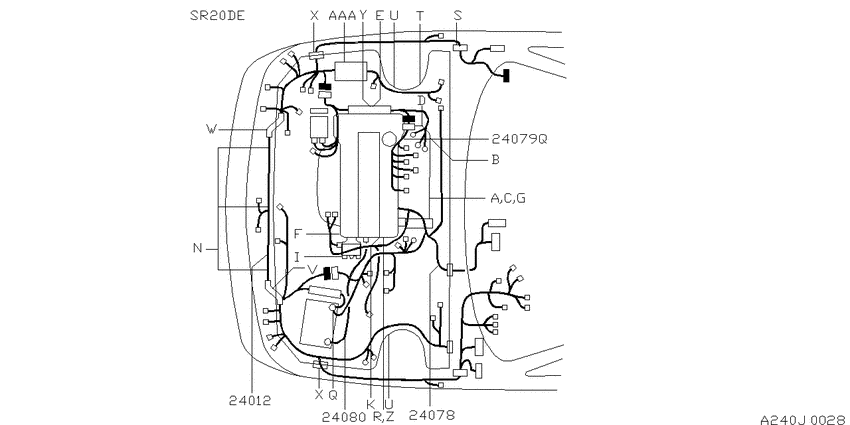

Wiring (1996-11-01 ~ ; エンジンルーム; 5HB) 7
| # | OEM | Part name |
|---|---|---|
| 24012 | 24012-6F106 | Harness Assy-Engine Room |
| 24012 | 24012-6F110 | Harness Assy-Engine Room |
| 24012 | 24012-6F111 | Harness Assy-Engine Room |
| 24078 | 24011-6F100 | Harness Assy-Egi |
| 24078 | 24011-6F105 | Harness Assy-Egi |
| 24079 | 24079-2F201 | Harness Assy-Engine Room Sub |
| 24080 | 24080-2F200 | Cable Assy-Battery Earth |
| OEM | Part name | Category |
|---|---|---|
| 24011-6F100 | Harness Assy-Egi | Wiring (1996-11-01 ~ ; エンジンルーム; 5HB) |
| 24011-6F105 | Harness Assy-Egi | Wiring (1996-11-01 ~ ; エンジンルーム; 5HB) |
| 24012-6F106 | Harness Assy-Engine Room | Wiring (1996-11-01 ~ ; エンジンルーム; 5HB) |
| 24012-6F110 | Harness Assy-Engine Room | Wiring (1996-11-01 ~ ; エンジンルーム; 5HB) |
| 24012-6F111 | Harness Assy-Engine Room | Wiring (1996-11-01 ~ ; エンジンルーム; 5HB) |
| 24079-2F201 | Harness Assy-Engine Room Sub | Wiring (1996-11-01 ~ ; エンジンルーム; 5HB) |
| 24080-2F200 | Cable Assy-Battery Earth | Wiring (1996-11-01 ~ ; エンジンルーム; 5HB) |
