Search › Model › P11E
P11E

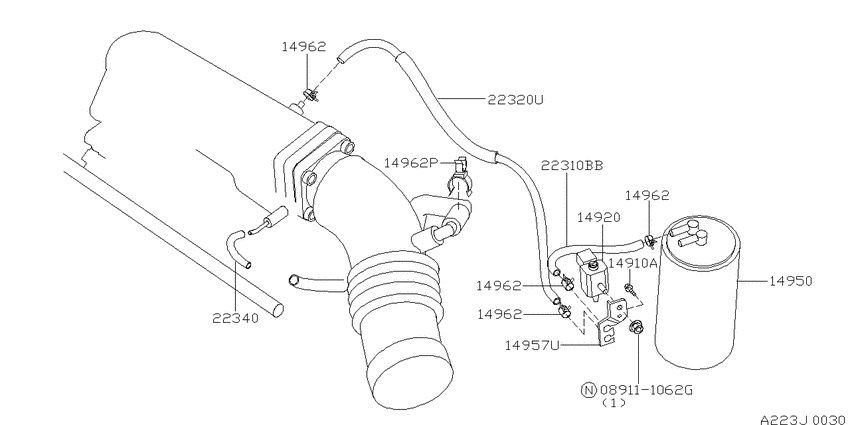

Vacuum piping (1996-11-01 ~ ; SR20DE) 11
| # | OEM | Part name |
|---|---|---|
| 14910 | 01436-01671 | SCREW |
| 14920 | 14930-38U00 | Valve Assy-Control |
| 14920 | 14930-38U10 | Valve Assy-Control |
| 14950 | 14950-3J505 | Canister Assy-Evaporation |
| 14957 | 14932-2J910 | Bracket-Valve |
| 14962 | 16439-U6801 | Clamp-Hose, B |
| 14962 | 24220-78J05 | Clamp-Hose, B |
| 22310 | 01993-0142E | Hose-Vacuum Control |
| 22320 | 22320-2F201 | Hose-Vacuum Control, B |
| 22340 | 01993-0080E | Hose |
| 22340 | 01993-0100E | Hose |
| OEM | Part name | Category |
|---|---|---|
| 01436-01671 | SCREW | Vacuum piping (1996-11-01 ~ ; SR20DE) |
| 01993-0080E | Hose | Vacuum piping (1996-11-01 ~ ; SR20DE) |
| 01993-0100E | Hose | Vacuum piping (1996-11-01 ~ ; SR20DE) |
| 01993-0142E | Hose-Vacuum Control | Vacuum piping (1996-11-01 ~ ; SR20DE) |
| 14930-38U00 | Valve Assy-Control | Vacuum piping (1996-11-01 ~ ; SR20DE) |
| 14930-38U10 | Valve Assy-Control | Vacuum piping (1996-11-01 ~ ; SR20DE) |
| 14932-2J910 | Bracket-Valve | Vacuum piping (1996-11-01 ~ ; SR20DE) |
| 14950-3J505 | Canister Assy-Evaporation | Vacuum piping (1996-11-01 ~ ; SR20DE) |
| 16439-U6801 | Clamp-Hose, B | Vacuum piping (1996-11-01 ~ ; SR20DE) |
| 22320-2F201 | Hose-Vacuum Control, B | Vacuum piping (1996-11-01 ~ ; SR20DE) |
| 24220-78J05 | Clamp-Hose, B | Vacuum piping (1996-11-01 ~ ; SR20DE) |
