Search › Model › P11E
P11E

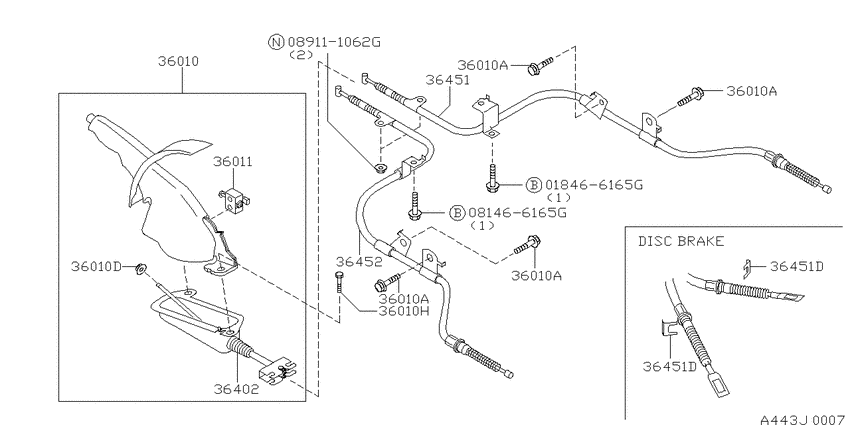

Parking brake control (1996-11-01 ~ ; SR20DE) 9
| # | OEM | Part name |
|---|---|---|
| 36010 | 36010-2F020 | Device Assy-Parking Brake Control |
| 36010 | 54459-0M001 | Bolt |
| 36010 | 01225-00511 | NUT |
| 36010 | 01436-01701 | Bolt |
| 36011 | 36011-2F000 | Switch Assy-Parking Brake Lamp |
| 36402 | 36402-2F000 | Cable Assy-Parking Brake, Front |
| 36451 | 36530-2F200 | Cable Assy-Brake, Rear Rh |
| 36451 | 36406-01P00 | Plate-Cable Lock |
| 36452 | 36531-2F200 | Cable Assy-Brake, Rear Lh |
| OEM | Part name | Category |
|---|---|---|
| 01225-00511 | NUT | Parking brake control (1996-11-01 ~ ; SR20DE) |
| 01436-01701 | Bolt | Parking brake control (1996-11-01 ~ ; SR20DE) |
| 36010-2F020 | Device Assy-Parking Brake Control | Parking brake control (1996-11-01 ~ ; SR20DE) |
| 36011-2F000 | Switch Assy-Parking Brake Lamp | Parking brake control (1996-11-01 ~ ; SR20DE) |
| 36402-2F000 | Cable Assy-Parking Brake, Front | Parking brake control (1996-11-01 ~ ; SR20DE) |
| 36406-01P00 | Plate-Cable Lock | Parking brake control (1996-11-01 ~ ; SR20DE) |
| 36530-2F200 | Cable Assy-Brake, Rear Rh | Parking brake control (1996-11-01 ~ ; SR20DE) |
| 36531-2F200 | Cable Assy-Brake, Rear Lh | Parking brake control (1996-11-01 ~ ; SR20DE) |
| 54459-0M001 | Bolt | Parking brake control (1996-11-01 ~ ; SR20DE) |
