Search › Model › P11E
P11E

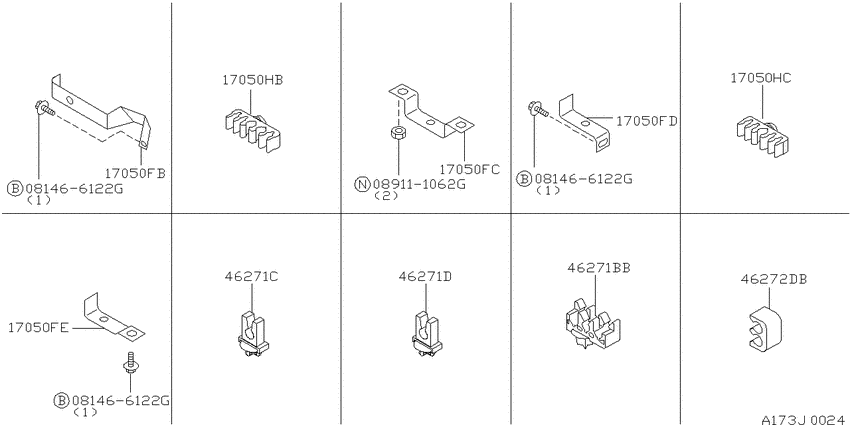

Fuel piping (1996-11-01 ~ ; クリップ; SR20DE) 9
| # | OEM | Part name |
|---|---|---|
| 17050 | 17571-9F903 | Clamp |
| 17050 | 17571-9F902 | Clamp |
| 17050 | 01935-0009E | Clamp |
| 17050 | 01935-0008E | Clamp |
| 17050 | 01561-0055E | Insulator |
| 17050 | 01561-0038E | Insulator |
| 46271 | 46271-9F910 | Clip |
| 46271 | 46271-5F000 | Insulator |
| 46272 | 46272-9F902 | Insulator |
| OEM | Part name | Category |
|---|---|---|
| 01561-0038E | Insulator | Fuel piping (1996-11-01 ~ ; クリップ; SR20DE) |
| 01561-0055E | Insulator | Fuel piping (1996-11-01 ~ ; クリップ; SR20DE) |
| 01935-0008E | Clamp | Fuel piping (1996-11-01 ~ ; クリップ; SR20DE) |
| 01935-0009E | Clamp | Fuel piping (1996-11-01 ~ ; クリップ; SR20DE) |
| 17571-9F902 | Clamp | Fuel piping (1996-11-01 ~ ; クリップ; SR20DE) |
| 17571-9F903 | Clamp | Fuel piping (1996-11-01 ~ ; クリップ; SR20DE) |
| 46271-5F000 | Insulator | Fuel piping (1996-11-01 ~ ; クリップ; SR20DE) |
| 46271-9F910 | Clip | Fuel piping (1996-11-01 ~ ; クリップ; SR20DE) |
| 46272-9F902 | Insulator | Fuel piping (1996-11-01 ~ ; クリップ; SR20DE) |
