P11E

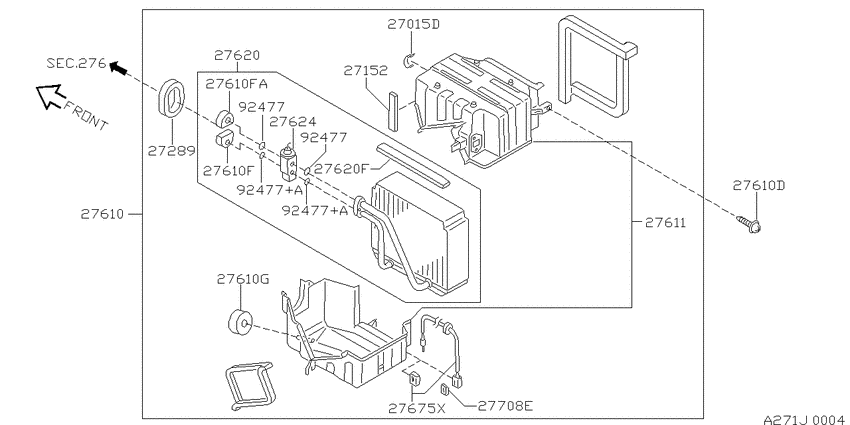

Cooling unit (1996-11-01 ~ ; 5HB) 12
| # | OEM | Part name |
|---|---|---|
| 27015 | 21476-B0100 | Clip-Cooler Case |
| 27015 | 21476-C5500 | Clip |
| 27152 | 27174-2J000 | Seal |
| 27610 | 27270-2J000 | Cooling Unit Assy |
| 27610 | 01456-00461 | SCREW |
| 27610 | 92798-2J001 | Seal |
| 27610 | 27287-2J010 | Seal |
| 27611 | 27284-2J000 | Case Assy-Cooling Unit |
| 27620 | 27280-2J000 | Evaporator Assy-Cooler |
| 27620 | 27288-2J000 | Insulator |
| 27624 | 92200-2J000 | Valve Assy-Expansion |
| 27708 | 27293-41B00 | Bracket |
| OEM | Part name | Category |
|---|---|---|
| 01456-00461 | SCREW | Cooling unit (1996-11-01 ~ ; 5HB) |
| 21476-B0100 | Clip-Cooler Case | Cooling unit (1996-11-01 ~ ; 5HB) |
| 21476-C5500 | Clip | Cooling unit (1996-11-01 ~ ; 5HB) |
| 27174-2J000 | Seal | Cooling unit (1996-11-01 ~ ; 5HB) |
| 27270-2J000 | Cooling Unit Assy | Cooling unit (1996-11-01 ~ ; 5HB) |
| 27280-2J000 | Evaporator Assy-Cooler | Cooling unit (1996-11-01 ~ ; 5HB) |
| 27284-2J000 | Case Assy-Cooling Unit | Cooling unit (1996-11-01 ~ ; 5HB) |
| 27287-2J010 | Seal | Cooling unit (1996-11-01 ~ ; 5HB) |
| 27288-2J000 | Insulator | Cooling unit (1996-11-01 ~ ; 5HB) |
| 27293-41B00 | Bracket | Cooling unit (1996-11-01 ~ ; 5HB) |
| 92200-2J000 | Valve Assy-Expansion | Cooling unit (1996-11-01 ~ ; 5HB) |
| 92798-2J001 | Seal | Cooling unit (1996-11-01 ~ ; 5HB) |
