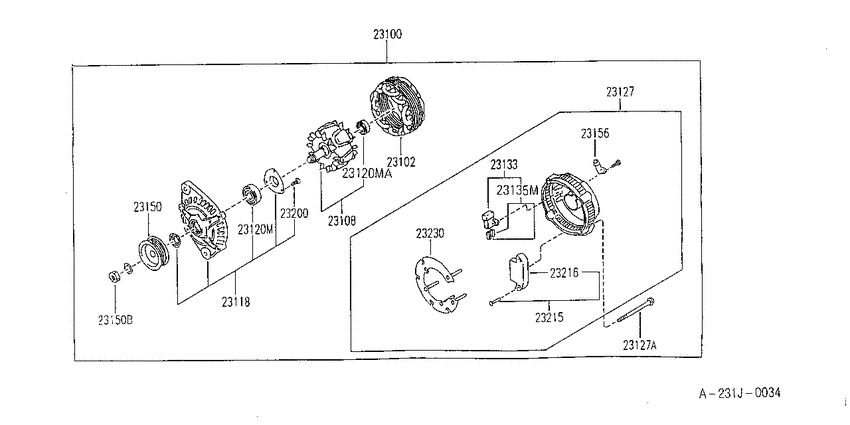

| 01221-00241 |
NUT |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23100-64J00 |
Alternator Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23100-64J03 |
Alternator Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23100-64J05 |
Alternator Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23102-0M800 |
Stator Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23102-64J00 |
Stator Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23108-4P00A |
Rotor Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23108-64J00 |
Rotor Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23108-65F00 |
Rotor Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23118-64J00 |
Cover Assy-Front |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23120-0M000 |
Bearing-Ball |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23120-0M005 |
Bearing-Ball |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23120-58S01 |
Bearing-Ball |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23120-60U00 |
Bearing-Ball |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23127-64J00 |
Cover Assy-Rear |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23127-64J02 |
Cover Assy-Rear |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23127-64J05 |
Cover Assy-Rear |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23131-58S00 |
Bolt-Through |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23133-64J00 |
Holder Assy-Brush |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23142-64J00 |
Brush Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23150-64J00 |
Pulley Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23153-43G06 |
Nut Assy-Pulley |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23153-60U00 |
Nut Assy-Pulley |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23156-64J00 |
Terminal Assy-B |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23200-Q4601 |
Screw Set |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23215-64J00 |
Regulator Assy-Ic |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23215-64J03 |
Regulator Assy-Ic |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23216-64J00 |
Condenser |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23216-64J02 |
Condenser |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23230-1E400 |
Diode Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23230-64J00 |
Diode Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
| 23230-64J05 |
Diode Assy |
Alternator (1991-07-01 ~ 1994-09-01; SR20DE) |
