Search › Model › P10
P10

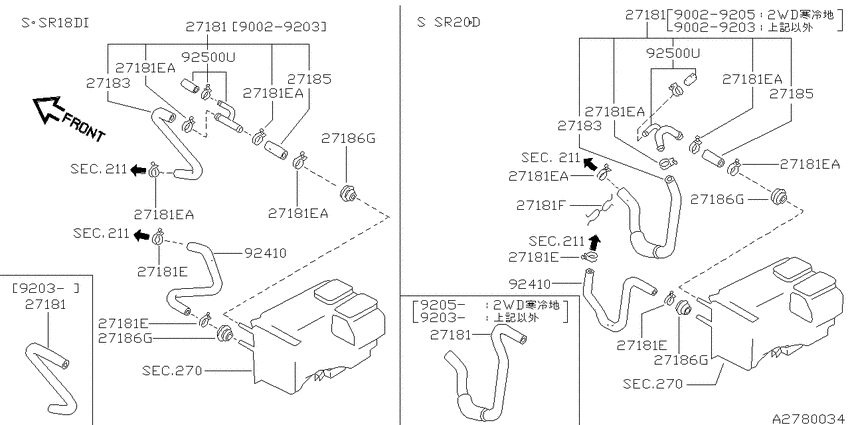

Heater piping (1994-09-01 ~ ; S) 12
| # | OEM | Part name |
|---|---|---|
| 27181 | 92400-56J01 | Hose-Front Heater |
| 27181 | 92400-56J11 | Hose-Front Heater |
| 27181 | 01555-00231 | CLAMP |
| 27181 | 01555-00251 | CLIP |
| 27181 | 01552-01051 | CLIP |
| 27181 | 27181-51E00 | DOOR ASSY-VENT,NO.1 |
| 27185 | 27185-51E00 | DOOR ASSY-FOOT |
| 27186 | 92580-01E00 | GROMMET-RUBBER |
| 27186 | 92580-78E00 | GROMMET-RUBBER |
| 27186 | 92580-78E01 | GROMMET-RUBBER |
| 92410 | 92410-56J00 | ホ-ス,ヒ-タ- アウトレツト |
| 92410 | 92410-56J10 | ホ-ス,ヒ-タ- アウトレツト |
| OEM | Part name | Category |
|---|---|---|
| 01552-01051 | CLIP | Heater piping (1994-09-01 ~ ; S) |
| 01555-00231 | CLAMP | Heater piping (1994-09-01 ~ ; S) |
| 01555-00251 | CLIP | Heater piping (1994-09-01 ~ ; S) |
| 27181-51E00 | DOOR ASSY-VENT,NO.1 | Heater piping (1994-09-01 ~ ; S) |
| 27185-51E00 | DOOR ASSY-FOOT | Heater piping (1994-09-01 ~ ; S) |
| 92400-56J01 | Hose-Front Heater | Heater piping (1994-09-01 ~ ; S) |
| 92400-56J11 | Hose-Front Heater | Heater piping (1994-09-01 ~ ; S) |
| 92410-56J00 | ホ-ス,ヒ-タ- アウトレツト | Heater piping (1994-09-01 ~ ; S) |
| 92410-56J10 | ホ-ス,ヒ-タ- アウトレツト | Heater piping (1994-09-01 ~ ; S) |
| 92580-01E00 | GROMMET-RUBBER | Heater piping (1994-09-01 ~ ; S) |
| 92580-78E00 | GROMMET-RUBBER | Heater piping (1994-09-01 ~ ; S) |
| 92580-78E01 | GROMMET-RUBBER | Heater piping (1994-09-01 ~ ; S) |
