Search › Model › P10
P10

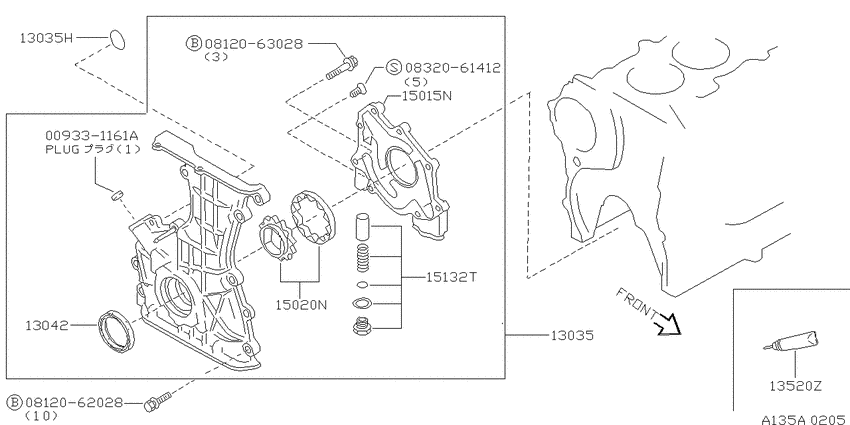

Front cover & fitting (1992-09-01 ~ 1994-09-01; SR20DE) 9
| # | OEM | Part name |
|---|---|---|
| 13035 | 13500-53J00 | Cover Assy-Front |
| 13035 | 15066-77A00 | Seal-O Ring |
| 13042 | 13510-40F00 | Seal-Oil, Crankshaft Front |
| 15132 | 15132-20J25 | Valve Set-Regulator, Oil Pump |
| 15132 | 15132-42L00 | Valve Assy-Oil Regulator |
| 15132 | 13500-70Y00 | Cover Assy-Front, Timing Chain |
| 812062028 | 08120-62028 | Bolt-hexagon |
| 812063028 | 08120-63028 | Bolt-hexagon |
| 832061412 | 08320-61412 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08120-62028 | Bolt-hexagon | Front cover & fitting (1992-09-01 ~ 1994-09-01; SR20DE) |
| 08120-63028 | Bolt-hexagon | Front cover & fitting (1992-09-01 ~ 1994-09-01; SR20DE) |
| 08320-61412 | スクリユ-,マシン | Front cover & fitting (1992-09-01 ~ 1994-09-01; SR20DE) |
| 13500-53J00 | Cover Assy-Front | Front cover & fitting (1992-09-01 ~ 1994-09-01; SR20DE) |
| 13500-70Y00 | Cover Assy-Front, Timing Chain | Front cover & fitting (1992-09-01 ~ 1994-09-01; SR20DE) |
| 13510-40F00 | Seal-Oil, Crankshaft Front | Front cover & fitting (1992-09-01 ~ 1994-09-01; SR20DE) |
| 15066-77A00 | Seal-O Ring | Front cover & fitting (1992-09-01 ~ 1994-09-01; SR20DE) |
| 15132-20J25 | Valve Set-Regulator, Oil Pump | Front cover & fitting (1992-09-01 ~ 1994-09-01; SR20DE) |
| 15132-42L00 | Valve Assy-Oil Regulator | Front cover & fitting (1992-09-01 ~ 1994-09-01; SR20DE) |
