Search › Model › P10
P10

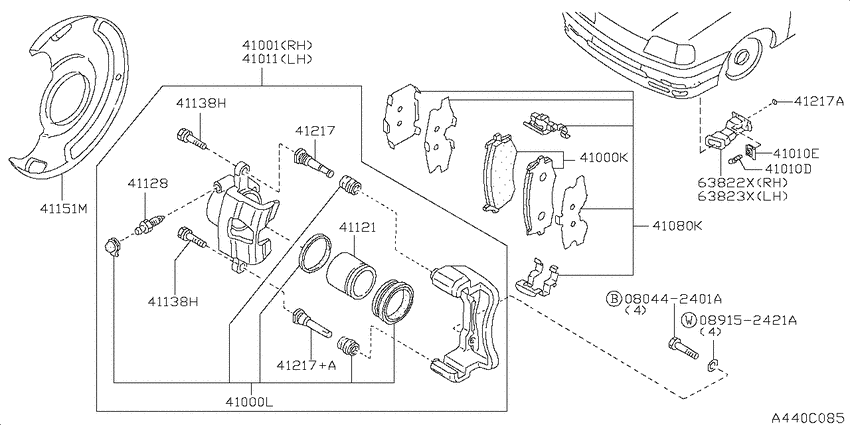

Front brake (1994-01-01 ~ 1994-09-01; *4WD.SR20DE +*SR20DE.TE) 8
| # | OEM | Part name |
|---|---|---|
| 41001 | 41001-71E02 | CALIPER ASSY-FRONT RH,W/O PADS OR SHIMS |
| 41010 | 76882-D4002 | Nut-Spring |
| 41011 | 41011-71E02 | CALIPER ASSY-FRONT LH,W/O PADS OR SHIMS |
| 41080 | 41080-71E26 | HARDWARE KIT-FRONT DISC BRAKE PAD |
| 41138 | 44141-N9500 | Pin-Bolt |
| 41217 | 44139-16E01 | PIN |
| 63822 | 63822-76J00 | Guide-Air, Brake |
| 63823 | 63823-76J00 | Guide-Air, Brake |
| OEM | Part name | Category |
|---|---|---|
| 41001-71E02 | CALIPER ASSY-FRONT RH,W/O PADS OR SHIMS | Front brake (1994-01-01 ~ 1994-09-01; *4WD.SR20DE +*SR20DE.TE) |
| 41011-71E02 | CALIPER ASSY-FRONT LH,W/O PADS OR SHIMS | Front brake (1994-01-01 ~ 1994-09-01; *4WD.SR20DE +*SR20DE.TE) |
| 41080-71E26 | HARDWARE KIT-FRONT DISC BRAKE PAD | Front brake (1994-01-01 ~ 1994-09-01; *4WD.SR20DE +*SR20DE.TE) |
| 44139-16E01 | PIN | Front brake (1994-01-01 ~ 1994-09-01; *4WD.SR20DE +*SR20DE.TE) |
| 44141-N9500 | Pin-Bolt | Front brake (1994-01-01 ~ 1994-09-01; *4WD.SR20DE +*SR20DE.TE) |
| 63822-76J00 | Guide-Air, Brake | Front brake (1994-01-01 ~ 1994-09-01; *4WD.SR20DE +*SR20DE.TE) |
| 63823-76J00 | Guide-Air, Brake | Front brake (1994-01-01 ~ 1994-09-01; *4WD.SR20DE +*SR20DE.TE) |
| 76882-D4002 | Nut-Spring | Front brake (1994-01-01 ~ 1994-09-01; *4WD.SR20DE +*SR20DE.TE) |
