Search › Model › P06V
P06V

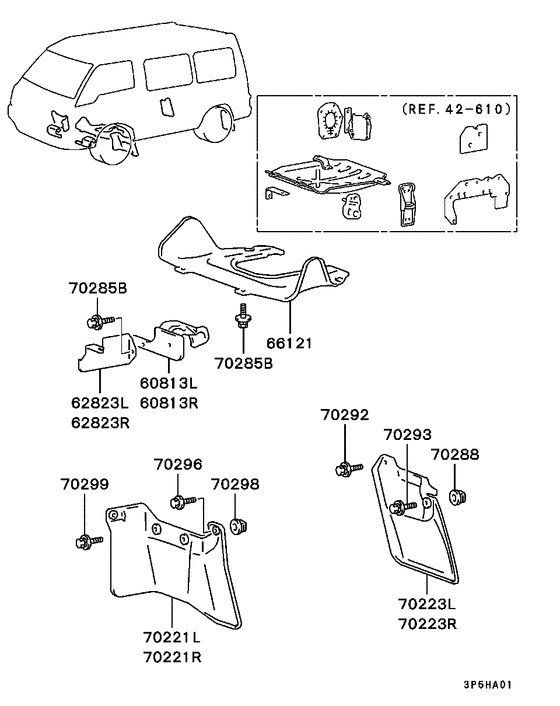

Mud guard,shield & stone guard (ALL) 9
| # | OEM | Part name |
|---|---|---|
| 60813 | MB485444 | PLATE, SNOW PLOW FR GUARD, LH |
| 60813 | MB485445 | PLATE, SNOW PLOW FR GUARD, RH |
| 70221 | MB417035 | MUD GUARD, FR LH |
| 70221 | MB417036 | MUD GUARD, FR RH |
| 70285 | MF243649 | BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 |
| 70296 | MS452393 | SCREW, OVERFENDER - Washer assembled,6x20 |
| 70296 | MS452398 | SCREW, SPLASH SHIELD - Tapping washer assembled,6x25 |
| 70298 | MB223246 | GROMMET, FR DOOR LOCKING - Screw,6 |
| 70299 | MU001190 | BOLT, RR MUD GUARD - Washer,6x20 |
| OEM | Part name | Category |
|---|---|---|
| MB223246 | GROMMET, FR DOOR LOCKING - Screw,6 | Mud guard,shield & stone guard (ALL) |
| MB417035 | MUD GUARD, FR LH | Mud guard,shield & stone guard (ALL) |
| MB417036 | MUD GUARD, FR RH | Mud guard,shield & stone guard (ALL) |
| MB485444 | PLATE, SNOW PLOW FR GUARD, LH | Mud guard,shield & stone guard (ALL) |
| MB485445 | PLATE, SNOW PLOW FR GUARD, RH | Mud guard,shield & stone guard (ALL) |
| MF243649 | BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 | Mud guard,shield & stone guard (ALL) |
| MS452393 | SCREW, OVERFENDER - Washer assembled,6x20 | Mud guard,shield & stone guard (ALL) |
| MS452398 | SCREW, SPLASH SHIELD - Tapping washer assembled,6x25 | Mud guard,shield & stone guard (ALL) |
| MU001190 | BOLT, RR MUD GUARD - Washer,6x20 | Mud guard,shield & stone guard (ALL) |
