Search › Model › P04W
P04W

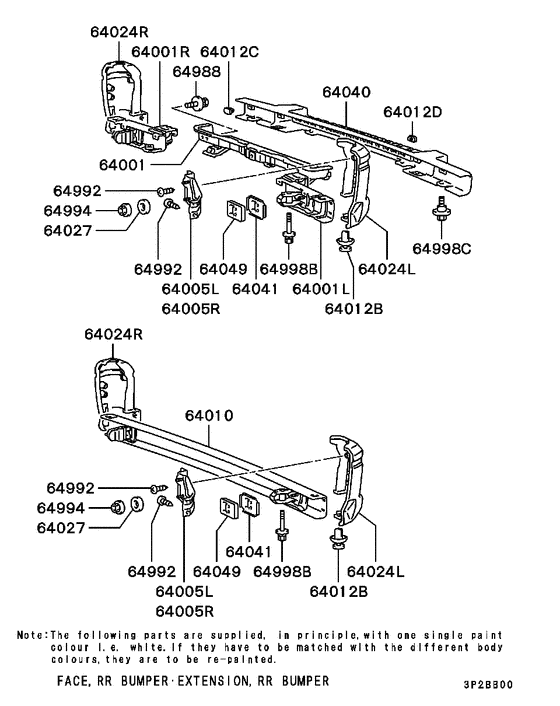

Rear bumper & support 22
| # | OEM | Part name |
|---|---|---|
| 64001 | MB428275 | REINFORCEMENT, RR BUMPER |
| 64001 | MB428265 | REINFORCEMENT, RR BUMPER, LH |
| 64001 | MB428266 | REINFORCEMENT, RR BUMPER, RH |
| 64005 | MB428231 | BRACKET, RR BUMPER SIDE, LH |
| 64005 | MB428232 | BRACKET, RR BUMPER SIDE, RH |
| 64012 | MB253964 | CLIP, FR BUMPER |
| 64012 | MB121032 | CLIP, FR BUMPER - 9x11 |
| 64012 | MB428317 | CLIP, RR BUMPER - 15.5x8 |
| 64024 | MB706888 | EXTENSION,RR BUMPER,LH |
| 64024 | MB706895 | EXTENSION,RR BUMPER,RH |
| 64027 | MB406419 | GASKET, RR BUMPER BRACKET |
| 64040 | MB701753 | FACE, RR BUMPER |
| 64040 | MB701751 | FACE, RR BUMPER |
| 64041 | MB428252 | PLATE, RR BUMPER STAY |
| 64049 | MB428250 | GASKET, RR BUMPER STAY |
| 64988 | MS240145 | BOLT, ENG CONTROL EQUIP - Washer assembled,8x20 |
| 64992 | MF453030 | SCREW, ENG CONTROL EQUIP - Tapping,5x10 |
| 64994 | MS440522 | NUT, FUEL TANK - Washer assembled,6 |
| 64998 | MU240010 | BOLT, RR BUMPER - Washer assembled,8x70 |
| 64998 | MB311524 | BOLT, RADIATOR GRILLE - Flange,6x14 |
| 64998 | MB311707 | BOLT, RADIATOR GRILLE - Flange,6x14 |
| 64998 | MB325005 | BOLT, RADIATOR GRILLE - Flange,6x14 |
| OEM | Part name | Category |
|---|---|---|
| MB121032 | CLIP, FR BUMPER - 9x11 | Rear bumper & support |
| MB253964 | CLIP, FR BUMPER | Rear bumper & support |
| MB311524 | BOLT, RADIATOR GRILLE - Flange,6x14 | Rear bumper & support |
| MB311707 | BOLT, RADIATOR GRILLE - Flange,6x14 | Rear bumper & support |
| MB325005 | BOLT, RADIATOR GRILLE - Flange,6x14 | Rear bumper & support |
| MB406419 | GASKET, RR BUMPER BRACKET | Rear bumper & support |
| MB428231 | BRACKET, RR BUMPER SIDE, LH | Rear bumper & support |
| MB428232 | BRACKET, RR BUMPER SIDE, RH | Rear bumper & support |
| MB428250 | GASKET, RR BUMPER STAY | Rear bumper & support |
| MB428252 | PLATE, RR BUMPER STAY | Rear bumper & support |
| MB428265 | REINFORCEMENT, RR BUMPER, LH | Rear bumper & support |
| MB428266 | REINFORCEMENT, RR BUMPER, RH | Rear bumper & support |
| MB428275 | REINFORCEMENT, RR BUMPER | Rear bumper & support |
| MB428317 | CLIP, RR BUMPER - 15.5x8 | Rear bumper & support |
| MB701751 | FACE, RR BUMPER | Rear bumper & support |
| MB701753 | FACE, RR BUMPER | Rear bumper & support |
| MB706888 | EXTENSION,RR BUMPER,LH | Rear bumper & support |
| MB706895 | EXTENSION,RR BUMPER,RH | Rear bumper & support |
| MF453030 | SCREW, ENG CONTROL EQUIP - Tapping,5x10 | Rear bumper & support |
| MS240145 | BOLT, ENG CONTROL EQUIP - Washer assembled,8x20 | Rear bumper & support |
| MS440522 | NUT, FUEL TANK - Washer assembled,6 | Rear bumper & support |
| MU240010 | BOLT, RR BUMPER - Washer assembled,8x70 | Rear bumper & support |
