Search › Model › P04V
P04V

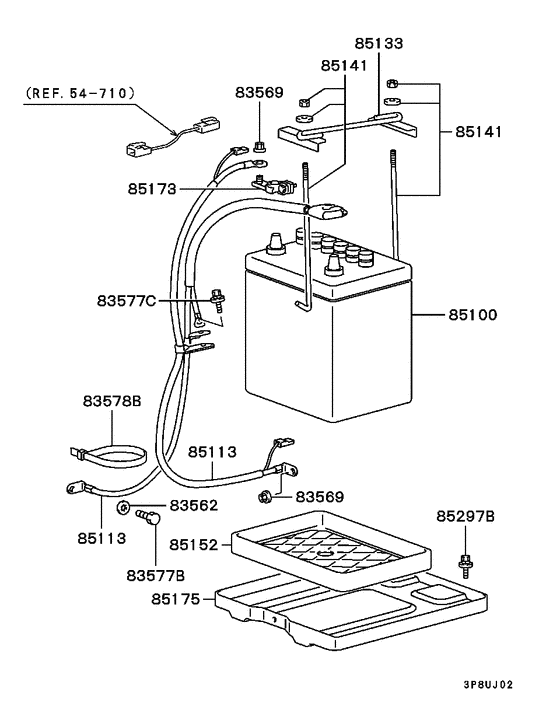

Battery cable & bracket 20
| # | OEM | Part name |
|---|---|---|
| 83562 | MF450886 | WASHER, FUEL TANK - Tooth,10 |
| 83569 | MS440503 | NUT - Washer assembled,8 |
| 83577 | MF100081 | BOLT, ROCKER COVER - 10x16 |
| 83577 | MB133273 | BOLT, FUEL LINE - Washer assembled,6x16 |
| 83578 | MB249338 | BAND, ROCKER COVER - L=129.5 |
| 85100 | MB286744 | BATTERY |
| 85100 | MB572345 | BATTERY |
| 85113 | MB510955 | CABLE, BATTERY WIRING - (+),650 |
| 85113 | MB542502 | CABLE, BATTERY WIRING - (-),800 |
| 85133 | MA604588 | HOLDER, BATTERY - 132(148) |
| 85133 | MB487689 | HOLDER, BATTERY - 173 or 131(286.5) |
| 85141 | MB241247 | L-BOLT KIT, BATTERY - 6x205 |
| 85141 | MB241963 | L-BOLT KIT, BATTERY - 6x238 |
| 85141 | MB860420 | L-BOLT KIT, BATTERY - 6x205 |
| 85152 | MA105020 | SEAT,BATTERY |
| 85152 | MB045993 | SEAT, BATTERY |
| 85173 | MB571173 | TERMINAL, BATTERY - (+) |
| 85175 | MB434210 | TRAY, BATTERY |
| 85297 | MS240141 | BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 |
| 85297 | MS240155 | BOLT, WINDSHIELD - Washer assembled,6x16 |
| OEM | Part name | Category |
|---|---|---|
| MA105020 | SEAT,BATTERY | Battery cable & bracket |
| MA604588 | HOLDER, BATTERY - 132(148) | Battery cable & bracket |
| MB045993 | SEAT, BATTERY | Battery cable & bracket |
| MB133273 | BOLT, FUEL LINE - Washer assembled,6x16 | Battery cable & bracket |
| MB241247 | L-BOLT KIT, BATTERY - 6x205 | Battery cable & bracket |
| MB241963 | L-BOLT KIT, BATTERY - 6x238 | Battery cable & bracket |
| MB249338 | BAND, ROCKER COVER - L=129.5 | Battery cable & bracket |
| MB286744 | BATTERY | Battery cable & bracket |
| MB434210 | TRAY, BATTERY | Battery cable & bracket |
| MB487689 | HOLDER, BATTERY - 173 or 131(286.5) | Battery cable & bracket |
| MB510955 | CABLE, BATTERY WIRING - (+),650 | Battery cable & bracket |
| MB542502 | CABLE, BATTERY WIRING - (-),800 | Battery cable & bracket |
| MB571173 | TERMINAL, BATTERY - (+) | Battery cable & bracket |
| MB572345 | BATTERY | Battery cable & bracket |
| MB860420 | L-BOLT KIT, BATTERY - 6x205 | Battery cable & bracket |
| MF100081 | BOLT, ROCKER COVER - 10x16 | Battery cable & bracket |
| MF450886 | WASHER, FUEL TANK - Tooth,10 | Battery cable & bracket |
| MS240141 | BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 | Battery cable & bracket |
| MS240155 | BOLT, WINDSHIELD - Washer assembled,6x16 | Battery cable & bracket |
| MS440503 | NUT - Washer assembled,8 | Battery cable & bracket |
