Search › Model › P02V

P02V

Mitsubishi L300 · 1986 · 3,180 parts · 196 categories

3,180 items

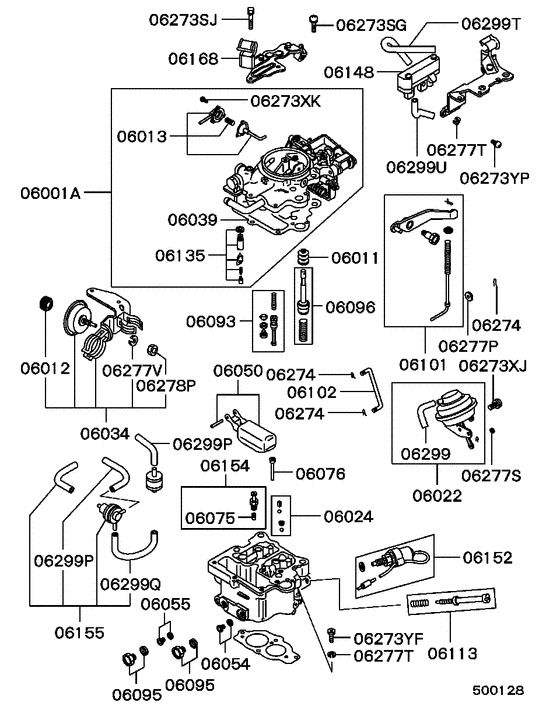

Carburetor (ALL (INR PARTS UPR)) 49

#	OEM	Part name
6001	MD615111	AIR HORN ASSY,CARB
6001	MD615304	AIR HORN ASSY,CARB
6011	MD615066	BOOT, CARB ACCEL PUMP PLUNGER
6012	MD601551	BOOT, CARB DASHPOT
6013	MD615402	BREAKER KIT, CARB CHOKE
6013	MD615404	BREAKER KIT,CARB CHOKE
6022	MD615081	CHAMBER KIT, CARB DEPRESSION
6024	MD615043	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET
6034	MD601866	DASHPOT KIT,CARB
6039	MD601701	GASKET, CARB AIR HORN
6039	MD615269	GASKET, CARB AIR HORN
6050	MD615053	FLOAT & PIN KIT, CARB
6054	MD601622	JET,CARB MAIN PRIMARY
6055	MD601833	JET, CARB MAIN SECONDARY - #165
6075	MD601635	JET, CARB POWER - #55
6076	MD601761	JET, CARB SLOW - #52-75
6093	MD601584	PISTON KIT, CARB POWER
6095	MD601605	PLUG KIT, CARB
6096	MD601612	PLUNGER KIT, CARB ACCEL PUMP
6101	MD601933	ROD KIT,CARB ACCEL PUMP
6102	MD615048	ROD, CARB CHOKE LEVER
6113	MD601809	ADJUSTING SCREW KIT, CARB SPEED
6135	MD601818	NEEDLE VALVE KIT, CARB FLOAT
6148	MD615025	VALVE, CARB IDLE COMPENSATOR
6152	MD601817	VALVE, CARB FUEL CUT-OFF SOLENOID
6154	MD601636	VALVE, CARB POWER
6155	MD601916	VALVE,CARB SERVO
6168	MD615090	BRACKET KIT, CARB ACCEL CABLE
6273	MF350052	SCREW, CARB INR
6273	MF350054	SCREW, LPG TANK - Washer assembled,5x25
6273	MD601773	SCREW, CARB INR
6273	MD601398	SCREW, CARB INR
6273	MD601604	SCREW, CARB INR
6273	MD615078	SCREW, CARB INR
6273	MD601121	SCREW, CARB INR
6274	MD601051	SNAP RING, CARB INR
6274	MD601959	SNAP RING, CARB INR
6277	MF450002	WASHER, CARB INR - Plain,4
6277	MF450001	WASHER, CARB INR - Plain,3
6277	MF450403	WASHER, EXTERIOR MARK - Spring,5
6277	MF450405	WASHER, CYLINDER HEAD - Spring,8
6278	MF430005	NUT, ROCKER COVER - 8
6278	MF430725	NUT, CYLINDER HEAD - Jam,8
6299	MD601736	HOSE,CARB IDLE COMPENSATOR
6299	MD601872	HOSE,CARB INR
6299	MD601869	VALVE,CARB DELAY
6299	MD615027	HOSE,CARB SERVO VALVE TO DELAY VALVE
6299	MD615138	HOSE, CARB INR - 50
6299	MD601909	HOSE, CARB INR - 4x85

OEM	Part name	Category
MD601051	SNAP RING, CARB INR	Carburetor (ALL (INR PARTS UPR))
MD601121	SCREW, CARB INR	Carburetor (ALL (INR PARTS UPR))
MD601398	SCREW, CARB INR	Carburetor (ALL (INR PARTS UPR))
MD601551	BOOT, CARB DASHPOT	Carburetor (ALL (INR PARTS UPR))
MD601584	PISTON KIT, CARB POWER	Carburetor (ALL (INR PARTS UPR))
MD601604	SCREW, CARB INR	Carburetor (ALL (INR PARTS UPR))
MD601605	PLUG KIT, CARB	Carburetor (ALL (INR PARTS UPR))
MD601612	PLUNGER KIT, CARB ACCEL PUMP	Carburetor (ALL (INR PARTS UPR))
MD601622	JET,CARB MAIN PRIMARY	Carburetor (ALL (INR PARTS UPR))
MD601635	JET, CARB POWER - #55	Carburetor (ALL (INR PARTS UPR))
MD601636	VALVE, CARB POWER	Carburetor (ALL (INR PARTS UPR))
MD601701	GASKET, CARB AIR HORN	Carburetor (ALL (INR PARTS UPR))
MD601736	HOSE,CARB IDLE COMPENSATOR	Carburetor (ALL (INR PARTS UPR))
MD601761	JET, CARB SLOW - #52-75	Carburetor (ALL (INR PARTS UPR))
MD601773	SCREW, CARB INR	Carburetor (ALL (INR PARTS UPR))
MD601809	ADJUSTING SCREW KIT, CARB SPEED	Carburetor (ALL (INR PARTS UPR))
MD601817	VALVE, CARB FUEL CUT-OFF SOLENOID	Carburetor (ALL (INR PARTS UPR))
MD601818	NEEDLE VALVE KIT, CARB FLOAT	Carburetor (ALL (INR PARTS UPR))
MD601833	JET, CARB MAIN SECONDARY - #165	Carburetor (ALL (INR PARTS UPR))
MD601866	DASHPOT KIT,CARB	Carburetor (ALL (INR PARTS UPR))
MD601869	VALVE,CARB DELAY	Carburetor (ALL (INR PARTS UPR))
MD601872	HOSE,CARB INR	Carburetor (ALL (INR PARTS UPR))
MD601909	HOSE, CARB INR - 4x85	Carburetor (ALL (INR PARTS UPR))
MD601916	VALVE,CARB SERVO	Carburetor (ALL (INR PARTS UPR))
MD601933	ROD KIT,CARB ACCEL PUMP	Carburetor (ALL (INR PARTS UPR))
MD601959	SNAP RING, CARB INR	Carburetor (ALL (INR PARTS UPR))
MD615025	VALVE, CARB IDLE COMPENSATOR	Carburetor (ALL (INR PARTS UPR))
MD615027	HOSE,CARB SERVO VALVE TO DELAY VALVE	Carburetor (ALL (INR PARTS UPR))
MD615043	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET	Carburetor (ALL (INR PARTS UPR))
MD615048	ROD, CARB CHOKE LEVER	Carburetor (ALL (INR PARTS UPR))
MD615053	FLOAT & PIN KIT, CARB	Carburetor (ALL (INR PARTS UPR))
MD615066	BOOT, CARB ACCEL PUMP PLUNGER	Carburetor (ALL (INR PARTS UPR))
MD615078	SCREW, CARB INR	Carburetor (ALL (INR PARTS UPR))
MD615081	CHAMBER KIT, CARB DEPRESSION	Carburetor (ALL (INR PARTS UPR))
MD615090	BRACKET KIT, CARB ACCEL CABLE	Carburetor (ALL (INR PARTS UPR))
MD615111	AIR HORN ASSY,CARB	Carburetor (ALL (INR PARTS UPR))
MD615138	HOSE, CARB INR - 50	Carburetor (ALL (INR PARTS UPR))
MD615269	GASKET, CARB AIR HORN	Carburetor (ALL (INR PARTS UPR))
MD615304	AIR HORN ASSY,CARB	Carburetor (ALL (INR PARTS UPR))
MD615402	BREAKER KIT, CARB CHOKE	Carburetor (ALL (INR PARTS UPR))
MD615404	BREAKER KIT,CARB CHOKE	Carburetor (ALL (INR PARTS UPR))
MF350052	SCREW, CARB INR	Carburetor (ALL (INR PARTS UPR))
MF350054	SCREW, LPG TANK - Washer assembled,5x25	Carburetor (ALL (INR PARTS UPR))
MF430005	NUT, ROCKER COVER - 8	Carburetor (ALL (INR PARTS UPR))
MF430725	NUT, CYLINDER HEAD - Jam,8	Carburetor (ALL (INR PARTS UPR))
MF450001	WASHER, CARB INR - Plain,3	Carburetor (ALL (INR PARTS UPR))
MF450002	WASHER, CARB INR - Plain,4	Carburetor (ALL (INR PARTS UPR))
MF450403	WASHER, EXTERIOR MARK - Spring,5	Carburetor (ALL (INR PARTS UPR))
MF450405	WASHER, CYLINDER HEAD - Spring,8	Carburetor (ALL (INR PARTS UPR))
