NZE181

Toyota AURIS-COROLLA · 2012 · 3,362 parts · 190 categories

3,362 items

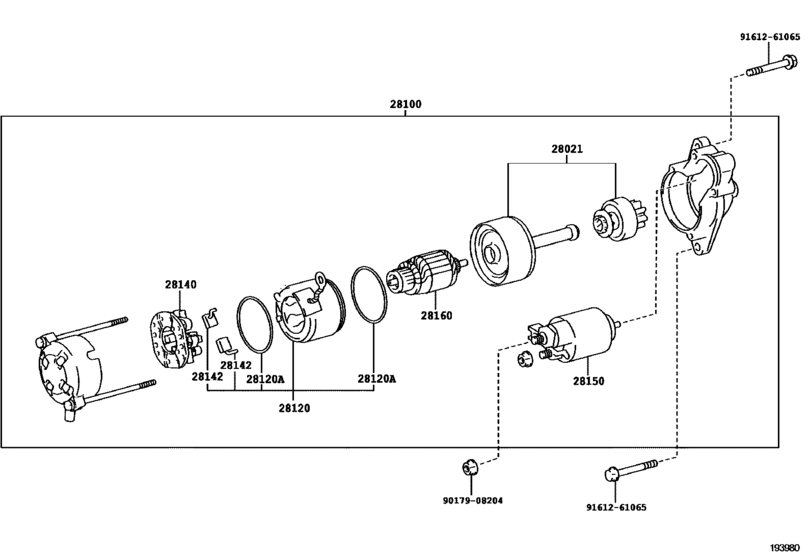

Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181) 25

#	OEM	Part name
28021	28021-21100	Clutch Sub-Assy, Starter Center Bearing
28021	28021-70020	Clutch Sub-Assy, Starter Center Bearing
28100	28100-21021	Starter Assy
28100	28100-21022	Starter Assy
28100	28100-21031	Starter Assy
28100	28100-21032	Starter Assy
28100	28100-21100	Starter Assy
28100	28100-21120	Starter Assy
28120	28120-21100	Yoke Assy, Starter
28120	28120-40130	Yoke Assy, Starter
28120	28120-47120	Yoke Assy, Starter
28120	90099-14092	Ring, O(For Starter Yoke)
28140	28140-21100	Holder Assy, Starter Brush
28140	28140-70020	Holder Assy, Starter Brush
28142	28142-70020	Brush, Starter
28150	28150-21020	Switch Assy, Magnet Starter
28150	28150-21100	Switch Assy, Magnet Starter
28150	28150-21120	Switch Assy, Magnet Starter
28160	28160-38070	Armature Assy, Starter
28160	28160-70021	Armature Assy, Starter
28160	28160-70050	Armature Assy, Starter
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER
9161261065	91612-61065	Bolt(For Transaxle & Engine Setting)
9161261065	90119-A0104	Bolt with Washer

OEM	Part name	Category
28021-21100	Clutch Sub-Assy, Starter Center Bearing	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28021-70020	Clutch Sub-Assy, Starter Center Bearing	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28100-21021	Starter Assy	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28100-21022	Starter Assy	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28100-21031	Starter Assy	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28100-21032	Starter Assy	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28100-21100	Starter Assy	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28100-21120	Starter Assy	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28120-21100	Yoke Assy, Starter	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28120-40130	Yoke Assy, Starter	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28120-47120	Yoke Assy, Starter	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28140-21100	Holder Assy, Starter Brush	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28140-70020	Holder Assy, Starter Brush	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28142-70020	Brush, Starter	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28150-21020	Switch Assy, Magnet Starter	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28150-21100	Switch Assy, Magnet Starter	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28150-21120	Switch Assy, Magnet Starter	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28160-38070	Armature Assy, Starter	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28160-70021	Armature Assy, Starter	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
28160-70050	Armature Assy, Starter	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
90080-18070	NUT, WWASHER	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
90099-14092	Ring, O(For Starter Yoke)	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
90119-A0104	Bolt with Washer	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
90179-08204	Nut	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
91612-61065	Bolt(For Transaxle & Engine Setting)	Starter ([08.2012 - ] 12V 0.8KW, 1.0KW (1208- )1NZFE..NZE181)
