NZE181

Toyota AURIS-COROLLA · 2012 · 3,362 parts · 190 categories
NZE181 ×

← Back to categories

3,362 items

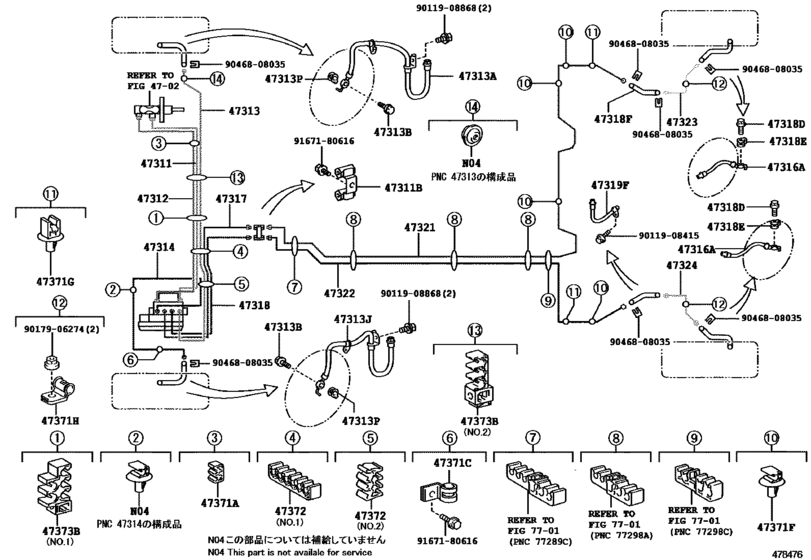

Brake Tube & Clamp ([08.2012 - 03.2015] ﾌﾞﾚｰｷﾁｭｰﾌﾞ (1208-1503)NZE181) 48
#OEMPart name
47311 47311-12C20 Tube, Front Brake, No.1
47311 47311-12C21 Tube, Front Brake, No.1
47311 90412-10285 Way, No.1(For Front Brake Tube)
47312 47312-12750 Tube, Front Brake, No.2
47312 47312-12751 Tube, Front Brake, No.2
47313 47313-12830 Tube, Front Brake, No.3
47313 47313-12A10 Tube, Front Brake, No.3
47313 90947-02G30 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 90947-02G31 Hose, Flexible, No.2(For Front)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-12750 Tube, Front Brake, No.4
47314 47314-12770 Tube, Front Brake, No.4
47316 90947-02F87 Hose, Flexible(For Rear Brake Tube)
47317 47317-12560 Tube, Front Brake, No.7
47317 47317-12580 Tube, Front Brake, No.7
47318 47318-12700 Tube, Front Brake, No.8
47318 47318-12720 Tube, Front Brake, No.8
47318 90947-02F85 Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR RH)
47319 90947-02F86 Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR LH)
47321 47321-12290 Tube, Rear Brake, No.1
47321 47321-12430 Tube, Rear Brake, No.1
47322 47322-12450 Tube, Rear Brake, No.2
47322 47322-12590 Tube, Rear Brake, No.2
47323 47323-12230 Tube, Rear Brake, No.3
47323 47323-47050 Tube, Rear Brake, No.3
47324 47324-12190 Tube, Rear Brake, No.4
47324 47324-47050 Tube, Rear Brake, No.4
47371 90464-00899 Clamp, Brake Tube, No.1
47371 90949-01E22 Clamp, Brake Tube, No.1
47371 90461-10781 Clamp, Brake Tube, No.6
47371 90949-01D17 Clamp(For Clutch Master Cylinder Tube)
47371 90949-01D29 Clamp(For Clutch Tube)
47371 90461-10843 Clamp, Tube
47372 90464-00892 Clamp, Brake Tube, No.2
47372 90464-00933 Clamp, Brake Tube, No.2
47372 90949-01E21 Clamp, Brake Tube, No.2
47372 90949-01E23 Clamp, Brake Tube, No.2
47373 90949-01D43 Clamp, Brake Tube, No.3
47373 90949-01D71 Clamp, Brake Tube, No.3 - BRAKE TUBE, NO.4
47373 90949-01E20 Clamp, Brake Tube, No.3
47373 90949-01E24 Clamp, Brake Tube, No.3
9011908415 90119-08415 New Genuine Part
9011908868 90119-08868 BOLT WWASHER
9017906274 90179-06274 Nut
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9167180616 91671-80616 BOLT FLANGE
