Search › Model › NZE170
NZE170

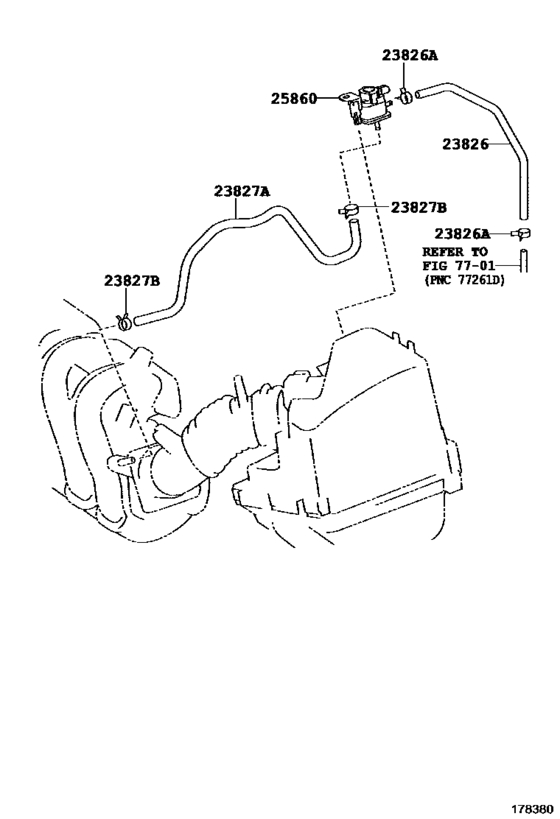

Vacuum Piping ([07.2014 - ] (1407- )2NZFE) 6
| # | OEM | Part name |
|---|---|---|
| 23826 | 23826-0D110 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 23826 | 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 23827 | 23827-0M060 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| 25860 | 25860-0D100 | Valve Assy, Vacuum Switching, No.1 |
| OEM | Part name | Category |
|---|---|---|
| 23826-0D110 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([07.2014 - ] (1407- )2NZFE) |
| 23827-0M060 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([07.2014 - ] (1407- )2NZFE) |
| 25860-0D100 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([07.2014 - ] (1407- )2NZFE) |
| 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([07.2014 - ] (1407- )2NZFE) |
| 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([07.2014 - ] (1407- )2NZFE) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([07.2014 - ] (1407- )2NZFE) |
