| 32000-52120 |
Converter Assy, Torque |

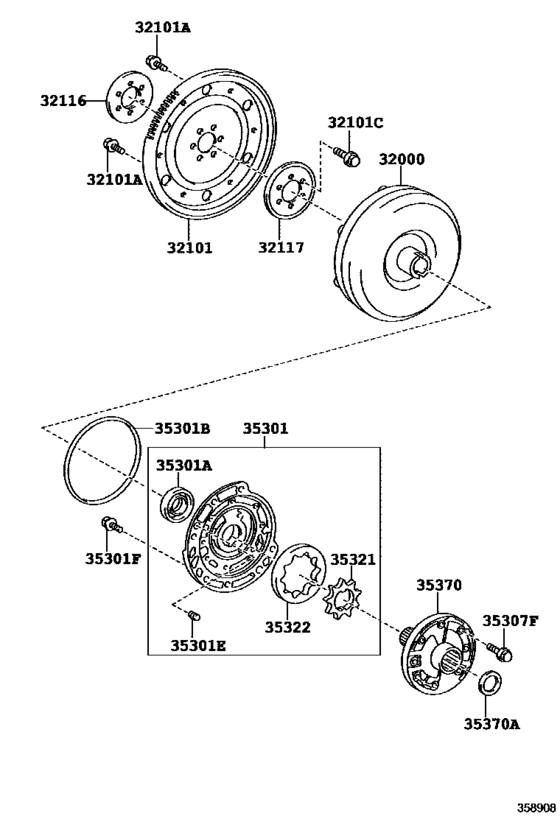

Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 32101-52021 |
Gear Sub-Assy, Drive Plate & Ring |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 32116-52030 |
Spacer, Drive Plate, Front |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 32117-52030 |
Spacer, Drive Plate, Rear |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 35035-52030 |
Body Sub-Assy, Front Oil Pump |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 35321-52010 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 35321-52020 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 35321-52030 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 35321-52040 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 35321-52050 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 35322-52010 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 35322-52020 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 35322-52030 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 35322-52040 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 35322-52050 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 35370-52010 |
Shaft Assy, Stator |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 90105-08376 |
Bolt (For Front Oil Pump Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 90105-10048 |
Bolt, Flywheel Setting |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 90109-08113 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 90119-06559 |
Bolt (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 90119-08498 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 90250-10034 |
Pin, Straight (For Transaxle Case) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 90301-99123 |
Ring, O (For Front Oil Pump Body) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 90311-38075 |
Seal, Oil (For Transaxle Housing) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 90374-32007 |
Bearing, Thrust Needle Roller(For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
| 90374-32008 |
Bearing, Thrust Needle Roller(For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) |
