Search › Model › NZE170

NZE170

Toyota COROLLA-ALTIS · 2014 · 2,523 parts · 183 categories

2,523 items

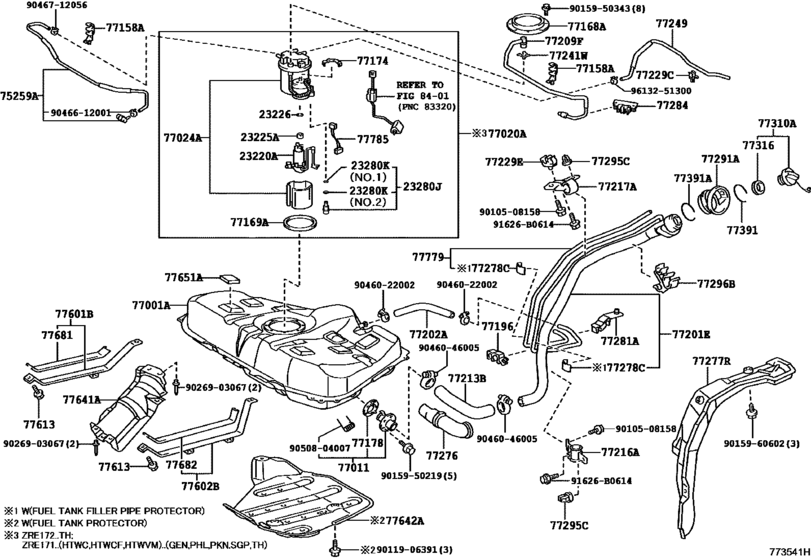

Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN) 68

#	OEM	Part name
23220	23220-0M060	Pump Assy, Fuel W/filter
23220	23220-0M061	Pump Assy, Fuel W/filter
23225	23225-0V030	Spacer, Fuel Pump
23226	90301-T0035	Ring, O(For Fuel Pump)
23280	23280-21010	Regulator Assy, Fuel Pressure
23280	90301-04013	Ring, O(For Fuel Pump)
23280	90301-15024	Ring, O(For Fuel Pump)
75259	77259-02060	Hose, Fuel
77001	77001-02760	Tank Sub-Assy, Fuel
77011	77011-02040	Pipe Sub-Assy, Fuel Tank Filler, Lower
77024	77024-02260	Plate Sub-Assy, Fuel Suction
77158	77158-20040	Support, Tank Suction Tube
77168	77168-52020	Plate, Fuel Tank Vent Tube Set
77169	77169-52010	Gasket, Fuel Suction Tube Set
77174	77174-02130	Support, Fuel Suction, No.1
77178	77178-0A010	Gasket, Fuel Tank Filler Pipe, Lower
77196	77196-12060	Clamp, Evaporation Vent Tube, No.1
77201	77201-02410	Pipe Sub-Assy, Fuel Tank Filler
77202	95313-13034	Hose, Fuel, No.1 (For Breather Tube)
77209	77209-02200	Tube Sub-Assy, Fuel Tank Main
77213	77213-32090	Hose, Fuel Tank To Filler Pipe
77216	77216-02140	Support, Fuel Tank Filler Pipe, No.1
77217	77217-02100	Support, Fuel Tank Filler Pipe, No.2
77229	77229-12110	Clamp, Breather Tube
77229	77229-12100	Clamp, Breather Tube
77241	77241-33011	Clip, Tube Joint
77249	77249-02030	Hose, Fuel Emission
77276	77276-12120	Protector, Fuel Hose
77277	77277-02190	Protector, Fuel Tank Filler Pipe
77278	77278-02080	Protector, Fuel Tank Filler Pipe, No.2
77281	77281-12110	Clamp, Fuel Filler Pipe
77284	77289-52100	Clamp, Fuel Tube, No.3
77291	77291-02190	Shield, Fuel Tank Filler Pipe
77295	77295-12070	Grommet, Fuel Tube
77296	77296-12070	Plate, Fuel Tube Support
77310	77300-0K010	Cap Assy, Fuel Tank
77310	77300-12020	Cap Assy, Fuel Tank
77316	77316-0K020	Gasket, Fuel Tank Cap
77316	77316-52040	Gasket, Fuel Tank Cap
77391	77391-06110	Ring, Fuel Inlet Box
77391	77391-02020	Ring, Fuel Inlet Box
77601	77601-02090	Band Sub-Assy, Fuel Tank, No.1 Rh
77602	77602-02090	Band Sub-Assy, Fuel Tank, No.1 Lh
77613	90119-10971	Bolt, Fuel Tank Band Set
77641	77641-02150	Protector, Fuel Tank, No.1
77651	77651-02060	Cushion, Fuel Tank, No.1
77681	77616-02050	Seat, Fuel Tank Band, Rh
77681	77616-68010	Seat, Fuel Tank Band, Rh
77682	77681-02060	Seat, Fuel Tank Band, Lh
77682	77681-12070	Seat, Fuel Tank Band, Rh
77779	77779-02140	Tube, Charcoal Canister Outlet
77785	77785-02110	Harness, Fuel Pump
91626	91626-B0614	BOLT, W/WASHER
9010508158	90105-08158	Plug(For Fuel Sub-Tank)
9011906391	90119-06391	Bolt, W/Washer
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9015950343	90159-50343	SCREW, W-WASHER
9015960602	90159-60602	SCREW
9026903067	90269-03067	RIVET
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046005	90460-46005	Clamp (For Fuel Filler Pipe)
9046612001	90466-12001	Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)
9046712056	90467-12056	Clamp Or Clip(For Throttle Body Hose)
9046712056	90466-T0048	New Genuine Part
9050804007	90508-04007	New Genuine Part
9613251300	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
23220-0M060	Pump Assy, Fuel W/filter	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
23220-0M061	Pump Assy, Fuel W/filter	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
23225-0V030	Spacer, Fuel Pump	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
23280-21010	Regulator Assy, Fuel Pressure	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77001-02760	Tank Sub-Assy, Fuel	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77011-02040	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77024-02260	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77158-20040	Support, Tank Suction Tube	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77168-52020	Plate, Fuel Tank Vent Tube Set	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77169-52010	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77174-02130	Support, Fuel Suction, No.1	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77178-0A010	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77196-12060	Clamp, Evaporation Vent Tube, No.1	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77201-02410	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77209-02200	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77213-32090	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77216-02140	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77217-02100	Support, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77229-12100	Clamp, Breather Tube	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77229-12110	Clamp, Breather Tube	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77241-33011	Clip, Tube Joint	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77249-02030	Hose, Fuel Emission	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77259-02060	Hose, Fuel	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77276-12120	Protector, Fuel Hose	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77277-02190	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77278-02080	Protector, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77281-12110	Clamp, Fuel Filler Pipe	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77289-52100	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77291-02190	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77295-12070	Grommet, Fuel Tube	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77296-12070	Plate, Fuel Tube Support	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77300-0K010	Cap Assy, Fuel Tank	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77300-12020	Cap Assy, Fuel Tank	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77316-0K020	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77316-52040	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77391-02020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77391-06110	Ring, Fuel Inlet Box	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77601-02090	Band Sub-Assy, Fuel Tank, No.1 Rh	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77602-02090	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77616-02050	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77616-68010	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77641-02150	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77651-02060	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77681-02060	Seat, Fuel Tank Band, Lh	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77681-12070	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77779-02140	Tube, Charcoal Canister Outlet	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
77785-02110	Harness, Fuel Pump	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90105-08158	Plug(For Fuel Sub-Tank)	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90119-06391	Bolt, W/Washer	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90119-10971	Bolt, Fuel Tank Band Set	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90159-50219	BOLT	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90159-50343	SCREW, W-WASHER	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90159-60602	SCREW	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90159-A0057	New Genuine Part	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90269-03067	RIVET	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90301-04013	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90301-15024	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90301-T0035	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90460-22001	CLAMP	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90460-22002	CLAMP	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90466-12001	Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90466-T0048	New Genuine Part	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90467-12056	Clamp Or Clip(For Throttle Body Hose)	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
90508-04007	New Genuine Part	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
91626-B0614	BOLT, W/WASHER	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
95313-13034	Hose, Fuel, No.1 (For Breather Tube)	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([10.2013 - ] FUEL TANK (1310- )NZE170,ZRE17#..HTWC,HTWCF,HTWVM..ARL, GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 183
Collected: 2026-08-02
