NZE170

Toyota COROLLA-ALTIS · 2014 · 2,523 parts · 183 categories

2,523 items

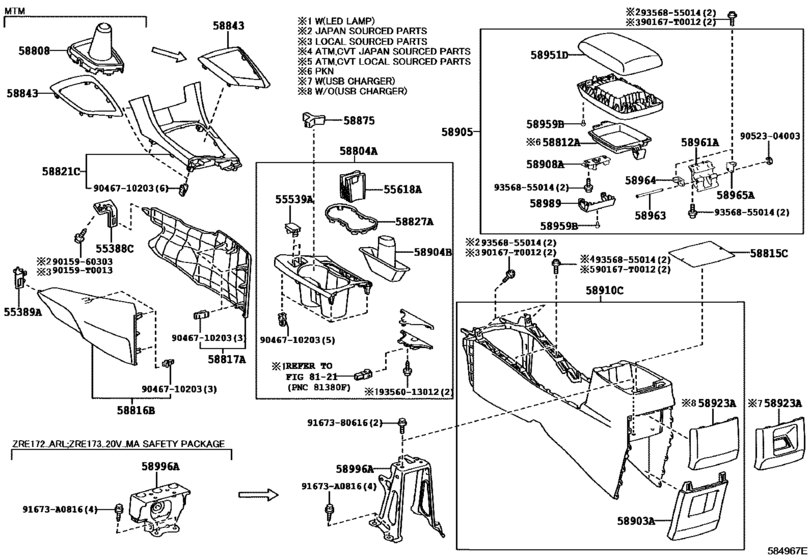

Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH) 39

#	OEM	Part name
55388	55389-02060	Bracket, Console Mounting, Rh - CONSOLE MOUNTING, LH
55389	55388-02080	Bracket, Console Mounting, Rh
55539	55539-0D090-C0	Cover, Spare Switch Hole
55618	55618-02260-C0	Holder, Console Box Cup
58804	58804-02360-C0	Panel Sub-Assy, Console, Upper
58804	58804-02361-C0	Panel Sub-Assy, Console, Upper
58812	58812-02250	Box, Console, Lower
58815	58815-02340	Carpet, Console Box
58816	58816-02270-C0	Insert, Console Box
58816	58816-02330-C0	Insert, Console Box
58817	58817-02270-C0	Insert, Console Box, Front No.2
58817	58817-02340-C0	Insert, Console Box, Front No.2
58821	58821-02800-C0	Panel, Console, Upper
58827	58827-02140	Garnish, Console Box Pocket
58843	58843-02630	Bezel, Shifting Hole
58875	58875-02010	Spacer, Console Box
58903	58903-02040-C0	Panel Sub-Assy, Console Rear End
58904	58904-02300-C0	Cover Sub-Assy, Parking Brake Hole
58905	58905-02B50-A1	Door Sub-Assy, Console Compartment
58908	58908-02140	Lock Sub-Assy, Console Compartment Door
58910	58910-02500-C0	Box Assy, Console, Rear
58923	58923-02220-C0	Panel, Console Rear End
58951	58951-02A10-A0	Door, Console Compartment, Outer
58959	90541-03078	Cushion(For Cup Holder)
58961	58961-02160	Hinge, Console Compartment Door Male
58963	58963-02060	Shaft, Console Compartment Door Hinge
58964	58964-02200	Stopper, Console Compartment Door, No.1
58965	58965-02210	Stopper, Console Compartment Door, No.2
58989	58989-02180	Panel, Console Compartment Door
58996	58996-02150	Bracket, Console Box Mounting, No.2
90159	90159-T0013	New Genuine Part
90167	90167-T0012	Direct
90167	93568-55014	Screw
91673	91673-A0816	BOLT FLANGE
9015960303	90159-60303	SCREW
9046710203	90467-10203	Direct
9052304003	90523-04003	New Genuine Part
9167380616	91673-80616	Bolt, W/washer
9356013012	93560-13012	New Genuine Part

OEM	Part name	Category
55388-02080	Bracket, Console Mounting, Rh	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
55389-02060	Bracket, Console Mounting, Rh - CONSOLE MOUNTING, LH	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
55539-0D090-C0	Cover, Spare Switch Hole	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
55618-02260-C0	Holder, Console Box Cup	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58804-02360-C0	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58804-02361-C0	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58812-02250	Box, Console, Lower	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58815-02340	Carpet, Console Box	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58816-02270-C0	Insert, Console Box	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58816-02330-C0	Insert, Console Box	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58817-02270-C0	Insert, Console Box, Front No.2	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58817-02340-C0	Insert, Console Box, Front No.2	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58821-02800-C0	Panel, Console, Upper	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58827-02140	Garnish, Console Box Pocket	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58843-02630	Bezel, Shifting Hole	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58875-02010	Spacer, Console Box	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58903-02040-C0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58904-02300-C0	Cover Sub-Assy, Parking Brake Hole	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58905-02B50-A1	Door Sub-Assy, Console Compartment	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58908-02140	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58910-02500-C0	Box Assy, Console, Rear	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58923-02220-C0	Panel, Console Rear End	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58951-02A10-A0	Door, Console Compartment, Outer	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58961-02160	Hinge, Console Compartment Door Male	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58963-02060	Shaft, Console Compartment Door Hinge	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58964-02200	Stopper, Console Compartment Door, No.1	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58965-02210	Stopper, Console Compartment Door, No.2	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58989-02180	Panel, Console Compartment Door	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
58996-02150	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
90159-60303	SCREW	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
90159-T0013	New Genuine Part	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
90167-T0012	Direct	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
90467-10203	Direct	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
90523-04003	New Genuine Part	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
90541-03078	Cushion(For Cup Holder)	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
91673-80616	Bolt, W/washer	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
91673-A0816	BOLT FLANGE	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
93560-13012	New Genuine Part	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
93568-55014	Screw	Console Box & Bracket ([12.2013 - ] (1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH)
