NZE170

Toyota COROLLA-ALTIS · 2014 · 2,523 parts · 183 categories

2,523 items

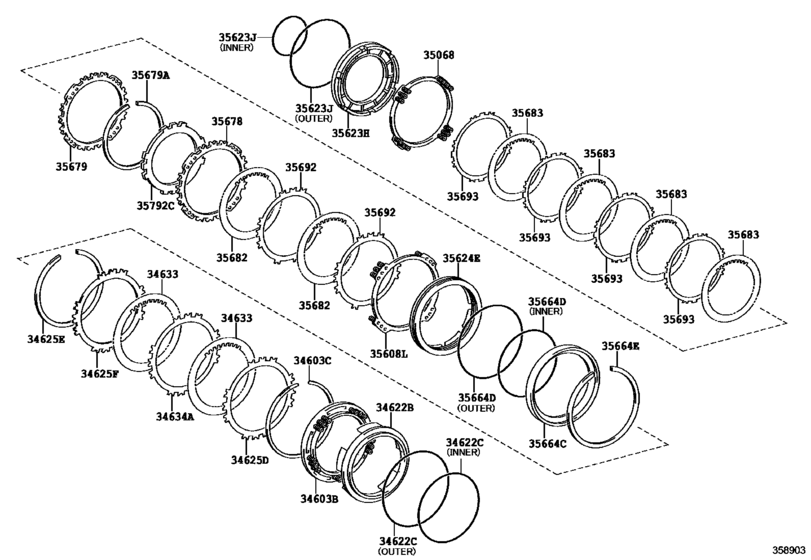

Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC) 31

#	OEM	Part name
34603	34603-52010	Spring Sub-Assy, Overdrive Brake Return
34603	90520-99047	Ring, Hole Snap(For Overdrive Brake Return Spring)
34622	34622-52010	Piston, 2Nd Coast & Overdrive Brake
34622	90301-99113	Ring, O(For 2Nd Coast & Overdrive)
34622	90301-99115	Ring, O(For 2Nd Coast & Overdrive)
34625	34625-52010	Flange, 2Nd Coast & Overdrive Brake
34625	34625-52020	Flange, 2Nd Coast & Overdrive Brake
34625	34625-52030	Flange, 2Nd Coast & Overdrive Brake
34625	34625-52040	Flange, 2Nd Coast & Overdrive Brake
34625	34625-52050	Flange, 2Nd Coast & Overdrive Brake
34625	90520-99046	Ring, Hole Snap(For 2Nd Coast & Overdrive Brake Flange)
34625	34625-52100	Flange, 2Nd Coast & Overdrive Brake
34633	34633-52040	Disc, 2Nd Coast & Overdrive Brake
34634	34634-52010	Plate, 2Nd Coast & Overdrive Brake
35068	35068-52020	Spring Sub-Assy, 1St & Reverse Brake Return
35608	35608-52010	Spring Sub-Assy, 2Nd Brake Piston Return
35623	35623-52020	Piston, 1St & Reverse Brake
35623	90301-97002	Ring, O (For 1St & Reverse Brake)
35623	90301-99195	Ring, O (For 1St & Reverse Brake)
35624	35624-52010	Piston, 2Nd Brake
35664	35664-52010	Cylinder, 2Nd Brake
35664	90301-99114	Ring, O(For 2Nd Brake Cylinder)
35664	90301-99116	Ring, O (For Brake Piston No.2)
35678	35678-52010	Flange, Brake(For 2Nd Brake)
35679	35679-52010	Flange, Brake(For 1St & Reverse)
35679	90520-99042	Ring, Hole Snap(For Brake Flange)
35682	35682-52010	Disc, Brake(For 2Nd Brake)
35683	35683-52070	Disc, Brake(For 1St & Reverse)
35692	35692-52010	Plate, Brake(For 2Nd Brake)
35693	35693-52020	Plate, Brake (For 1St & Reverse)
35792	35792-52030	Clutch, 1 Way, No.2

OEM	Part name	Category
34603-52010	Spring Sub-Assy, Overdrive Brake Return	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
34622-52010	Piston, 2Nd Coast & Overdrive Brake	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
34625-52010	Flange, 2Nd Coast & Overdrive Brake	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
34625-52020	Flange, 2Nd Coast & Overdrive Brake	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
34625-52030	Flange, 2Nd Coast & Overdrive Brake	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
34625-52040	Flange, 2Nd Coast & Overdrive Brake	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
34625-52050	Flange, 2Nd Coast & Overdrive Brake	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
34625-52100	Flange, 2Nd Coast & Overdrive Brake	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
34633-52040	Disc, 2Nd Coast & Overdrive Brake	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
34634-52010	Plate, 2Nd Coast & Overdrive Brake	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
35068-52020	Spring Sub-Assy, 1St & Reverse Brake Return	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
35608-52010	Spring Sub-Assy, 2Nd Brake Piston Return	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
35623-52020	Piston, 1St & Reverse Brake	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
35624-52010	Piston, 2Nd Brake	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
35664-52010	Cylinder, 2Nd Brake	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
35678-52010	Flange, Brake(For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
35679-52010	Flange, Brake(For 1St & Reverse)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
35682-52010	Disc, Brake(For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
35683-52070	Disc, Brake(For 1St & Reverse)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
35692-52010	Plate, Brake(For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
35693-52020	Plate, Brake (For 1St & Reverse)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
35792-52030	Clutch, 1 Way, No.2	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
90301-97002	Ring, O (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
90301-99113	Ring, O(For 2Nd Coast & Overdrive)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
90301-99114	Ring, O(For 2Nd Brake Cylinder)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
90301-99115	Ring, O(For 2Nd Coast & Overdrive)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
90301-99116	Ring, O (For Brake Piston No.2)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
90301-99195	Ring, O (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
90520-99042	Ring, Hole Snap(For Brake Flange)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
90520-99046	Ring, Hole Snap(For 2Nd Coast & Overdrive Brake Flange)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
90520-99047	Ring, Hole Snap(For Overdrive Brake Return Spring)	Brake No.3, 1St & Reverse Brake (Atm) ([07.2014 - ] U441E (1407- )NZE170..4FC)
