NZE154

Toyota AURIS-COROLLA · 2006 · 4,294 parts · 198 categories

← Back to categories

4,294 items

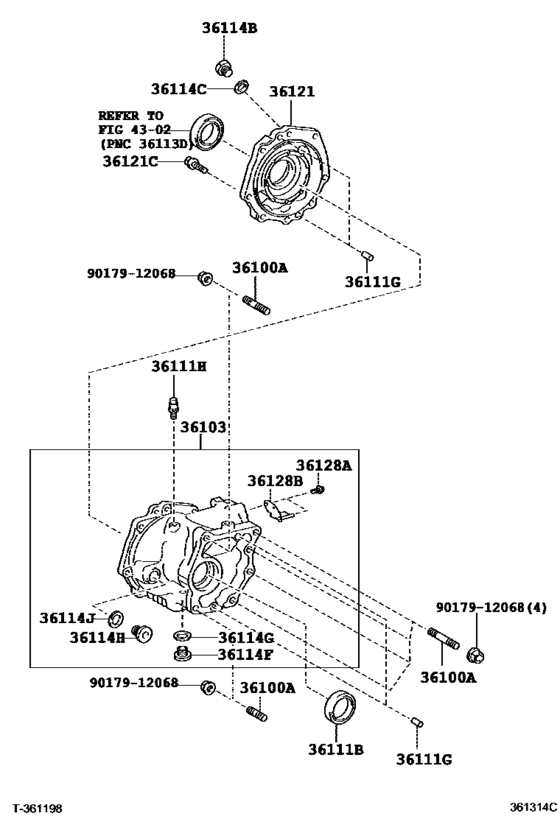

Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154) 18

#	OEM	Part name
36100	90116-12028	Bolt, Stud (For Transfer & Transaxle Setting)
36100	90116-12034	Bolt, Stud (For Transfer & Transaxle Setting)
36100	90116-12041	Bolt, Stud (For Transfer & Transaxle Setting)
36103	36103-52010	Case Sub-Assy, Transfer
36103	33621-48020	Label, Transaxle Oil Information
36103	36103-42051	Case Sub-Assy, Transfer
36111	90311-49001	Seal, Oil (For Transfer Case)
36111	90250-10017	Pin, Straight(For Clutch Housing Set)
36111	90930-03133	Plug, Breather
36114	90341-18006	Plug (No magnet)
36114	12157-10010	Gasket (For Drain Plug)
36114	90341-18051	Plug, Drain(Hv)
36114	90341-18023	Plug, W/head Straight Screw, No.1
36121	36121-52020	Cover, Transfer Case, No.1
36121	91552-81030	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
36128	91621-60614	Bolt(For Transaxle & Engine Setting)
36128	36128-52010	Deflector, Breather Oil
9017912068	90179-12068	Nut(For Transaxle Case Cover)

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
33621-48020	Label, Transaxle Oil Information	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
36103-42051	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
36103-52010	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
36121-52020	Cover, Transfer Case, No.1	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
36128-52010	Deflector, Breather Oil	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
90116-12028	Bolt, Stud (For Transfer & Transaxle Setting)	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
90116-12034	Bolt, Stud (For Transfer & Transaxle Setting)	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
90116-12041	Bolt, Stud (For Transfer & Transaxle Setting)	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
90179-12068	Nut(For Transaxle Case Cover)	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
90250-10017	Pin, Straight(For Clutch Housing Set)	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
90311-49001	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
90341-18006	Plug (No magnet)	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
90341-18023	Plug, W/head Straight Screw, No.1	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
90341-18051	Plug, Drain(Hv)	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
90930-03133	Plug, Breather	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
91552-81030	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
91621-60614	Bolt(For Transaxle & Engine Setting)	Transfer Case & Extension Housing ([10.2006 - ] (0610- )NZE154,ZRE154)
