Search › Model › NZE154

NZE154

Toyota AURIS-COROLLA · 2006 · 4,294 parts · 198 categories

4,294 items

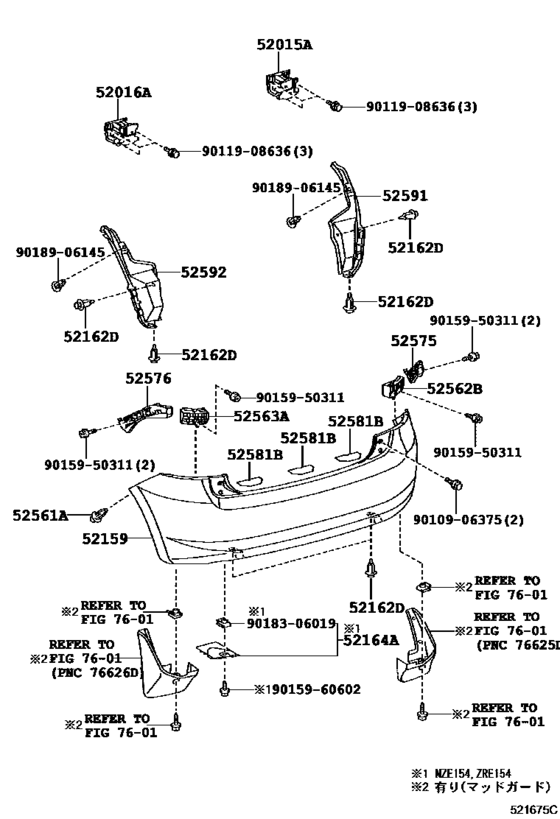

Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910)) 43

#	OEM	Part name
52015	52015-12330	Arm Sub-Assy, Rear Bumper, Rh
52016	52016-12300	Arm Sub-Assy, Rear Bumper, Lh
52159	52159-12A20-A1	Cover, Rear Bumper
52159	52159-12A20-B0	Cover, Rear Bumper
52159	52159-12A20-B1	Cover, Rear Bumper
52159	52159-12933	Cover, Rear Bumper
52159	52159-12A20-C0	Cover, Rear Bumper
52159	52159-12A20-D1	Cover, Rear Bumper
52159	52159-12A20-J0	Cover, Rear Bumper
52159	52159-12A20-J1	Cover, Rear Bumper
52159	52159-12A20-J2	Cover, Rear Bumper
52159	52159-12A20-K0	Cover, Rear Bumper
52159	52159-12B20-A1	Cover, Rear Bumper
52159	52159-12B20-B0	Cover, Rear Bumper
52159	52159-12B20-B1	Cover, Rear Bumper
52159	52159-12B20-C0	Cover, Rear Bumper
52159	52159-12B20-D0	Cover, Rear Bumper
52159	52159-12939	Cover, Rear Bumper
52159	52159-12B20-J1	Cover, Rear Bumper
52159	52159-12B20-J2	Cover, Rear Bumper
52159	52159-12B20-J3	Cover, Rear Bumper
52162	52161-16010	Clip
52162	52161-0K040	Clip
52162	52161-02020	Clip
52164	52164-12060	Plate, Rear Bumper, Lh
52561	90467-05090-B1	Clip, Rear Bumper Side
52562	52562-12110	Retainer, Rear Bumper, Upper Rh
52563	52563-12030	Retainer, Rear Bumper, Upper Lh
52575	52575-12150	Retainer, Rear Bumper Side, Rh
52576	52576-12150	Retainer, Rear Bumper Side, Lh
52581	52581-12140	Protector, Rear Bumper
52581	52581-13030	Protector, Rear Bumper
52591	52591-12190	Seal, Rear Bumper Side, Rh
52591	52591-12260	Seal, Rear Bumper Side, Rh
52592	52592-12110	Seal, Rear Bumper Side, Lh
52592	52592-12180	Seal, Rear Bumper Side, Lh
9010906375	90109-06375	BOLT
9011908636	90119-08636	BOLT
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015960602	90159-60602	SCREW
9018306019	90183-06019	Clip, Outside Moulding, No.1
9018906145	90189-06145	GROMMET SCREW

OEM	Part name	Category
52015-12330	Arm Sub-Assy, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52016-12300	Arm Sub-Assy, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12933	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12939	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12A20-A1	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12A20-B0	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12A20-B1	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12A20-C0	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12A20-D1	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12A20-J0	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12A20-J1	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12A20-J2	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12A20-K0	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12B20-A1	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12B20-B0	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12B20-B1	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12B20-C0	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12B20-D0	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12B20-J1	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12B20-J2	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52159-12B20-J3	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52161-02020	Clip	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52161-0K040	Clip	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52161-16010	Clip	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52164-12060	Plate, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52562-12110	Retainer, Rear Bumper, Upper Rh	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52563-12030	Retainer, Rear Bumper, Upper Lh	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52575-12150	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52576-12150	Retainer, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52581-12140	Protector, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52581-13030	Protector, Rear Bumper	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52591-12190	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52591-12260	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52592-12110	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
52592-12180	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
90109-06375	BOLT	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
90119-08636	BOLT	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
90159-50311	SCREW	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
90159-60602	SCREW	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
90159-A0034	SCREW WWASHER	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
90183-06019	Clip, Outside Moulding, No.1	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
90189-06145	GROMMET SCREW	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
90467-05090-B1	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([10.2006 - 10.2009] (0610-0910))
