NZE154

Toyota AURIS-COROLLA · 2006 · 4,294 parts · 198 categories
NZE154 ×

← Back to categories

4,294 items

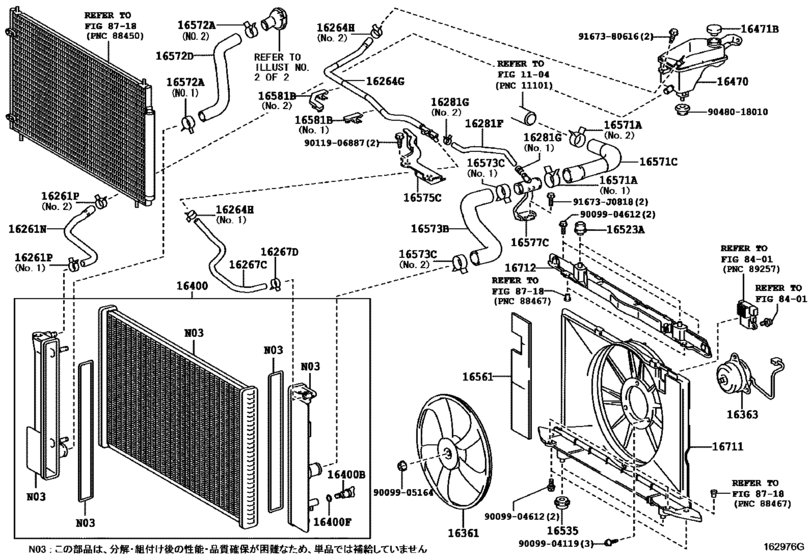

Radiator & Water Outlet ([10.2006 - ] (0610- )1NZFE) 82
#OEMPart name
16261 16261-21110 Hose, Water By-Pass, No.2
16261 16261-21150 Hose, Water By-Pass, No.2
16261 96136-42201 Clip(For Ventilation Hose No.2)
16261 96136-42501 Clip(For Ventilation Hose)
16261 96136-52201 Clip(For Ventilation Hose No.2)
16261 96136-52501 Clip(For Water By-Pass Hose No.1)
16261 16261-21070 Hose, Water By-Pass
16261 90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96135-51300 Clamp, Hose
16261 96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
16262 16262-21030 Hose, Water Inlet
16264 16264-21090 Hose, Water By-Pass, No.2
16264 90467-15022 Clip Or Clamp(For Ventilation Hose)
16264 96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)
16264 96136-52101 Clip(For Ventilation Hose)
16264 16264-21060 Hose, Water By-Pass, No.2
16267 16267-21030 Hose, Water By-Pass, No.4
16267 16267-21040 Hose, Water By-Pass, No.4
16267 16267-21020 Hose, Water By-Pass, No.3
16268 16268-21050 Pipe, Water By-Pass, No.1
16268 16258-21020 Gasket(For Water By-Pass Pipe)
16268 16258-21021 Gasket(For Water By-Pass Pipe)
16281 16281-21030 Hose, Water By-Pass, No.5
16281 90467-17013 Clamp Or Clip(For Water By-Pass Hose No.4)
16281 96136-41901 Clip Or Clamp(For Ventilation Hose)
16281 96136-51901 Clip(For Water By-Pass Hose No.2)
16281 16281-21020 Hose, Water By-Pass, No.4
16283 16283-21010 Hose, Water By-Pass, No.6
16283 16283-21011 Hose, Water By-Pass, No.6
16321 16321-21020 Inlet, Water
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16331 90916-03126 Thermostat
16331 90916-03142 Thermostat
16351 16351-21010 Outlet, Water By-Pass
16361 16361-22100 Fan
16363 16363-22120 Motor, Cooling Fan
16381 16381-21040 Bar, Fan Belt Adjusting
16400 16400-22160 Radiator Assy
16400 16417-21280 Cock Sub-Assy, Radiator Drain
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16470 16480-22080 Tank Assy, Radiator Reserve
16471 16475-28120 Cap Sub-Assy, Reserve Tank
16471 16475-51010 Cap Sub-Assy, Radiator Reserve Tank
16471 16475-28140 Cap Sub-Assy, Radiator Reserve Tank
16523 16523-21060 Cushion, Radiator Support
16535 16535-74230 Support, Radiator, Lower
16561 16561-22030 Seal, Radiator To Support, No.1
16571 96136-43901 Clamp Or Clip, Hose(For Radiator Inlet)
16571 96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)
16571 16571-21110 Hose, Radiator, No.1
16572 16572-21080 Hose, Radiator, No.2
16573 16573-21030 Hose, Radiator, No.3
16573 90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)
16575 16575-22020 Bracket, Water Hose Clamp, No.1
16575 16575-37020 Bracket, Water Hose Clamp, No.1
16575 16575-21020 Bracket, Water Hose Clamp, No.2
16577 16577-21020 Pipe, Radiator
16581 16581-22110 Clamp, Hose(For Water Hose)
16581 16581-22120 Clamp, Hose(For Water Hose)
16581 16581-21020 Clamp, Hose(For Water Hose)
16581 16581-21030 Clamp, Hose(For Water Hose)
16581 16581-21060 Clamp, Hose(For Water Hose)
16581 16581-21070 Clamp, Hose(For Water Hose)
16581 16581-21080 Clamp, Hose(For Water Hose)
16711 16711-22140 Shroud, Fan
16712 16712-22040 Shroud, Fan, No.2
16712 16712-22041 Shroud, Fan, No.2
91621 91621-G0818 Bolt(For Automatic Transmission Case Protector)
91673 91673-J0818 New Genuine Part
9011908 90119-08A53 BOLT WWASHER
9009904119 90099-04119 BOLT WASHER HEAD
9009904612 90099-04612 Bolt
9009905164 90099-05164 Nut
9011606127 90116-06127 Bolt, Stud(For Oil Pan)
9011906887 90119-06887 New Genuine Part
9012606019 90126-06019 New Genuine Part
9017906299 90179-06299 Nut, Wire Adjusting, No.1
9048018010 90480-18010 Grommet, Radiator Reserve Tank Hose
9167180614 91671-80614 Bolt (For Transmission Control Cable Bracket)
9167380616 91673-80616 Bolt, W/washer
9415180801 94151-80801 NUT FLANGE
9613441900 96134-41900 Clip Or Clamp(For Ventilation Hose)
