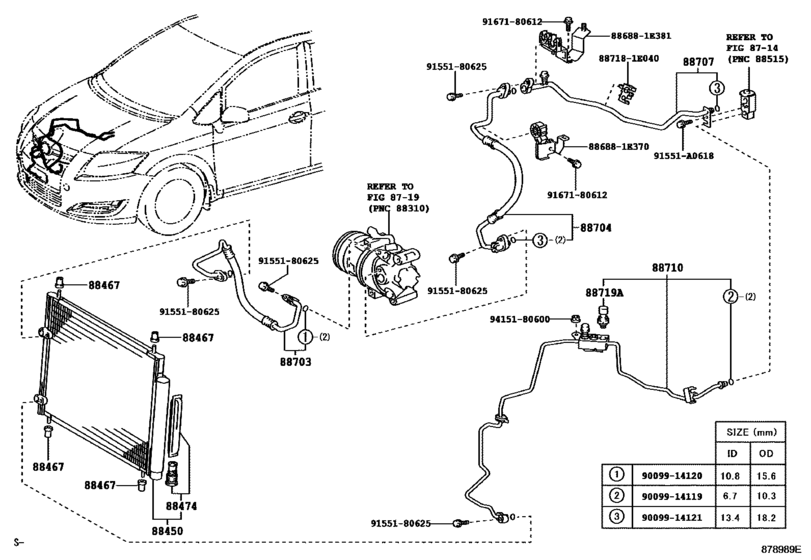

| 16716-28010 |
Cushion, Fan Shroud |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 88450-12280 |
Condenser Assy, W/receiver |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 88474-12030 |
Dryer, Cooler |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 88688-1E370 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 88688-1E381 |
Bracket, Cooler Refrigerant Hose, No.2 |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 88703-12870 |
Hose Sub-Assy, Discharge |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 88704-1A220 |
Hose Sub-Assy, Suction |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 88707-12250 |
Pipe Sub-Assy, Suction |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 88710-12790 |
Tube Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 88718-1E040 |
Clamp(For Cooler Refrigerant Pipe), No.1 |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 88719-33020 |
Sensor, Airconditioner Pressure |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 90099-14119 |
Ring, O(For Cooler Refrigerant Liquid Pipe) |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 90099-14119-TH |
O RING |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 91551-80625 |
Bolt(For Camshaft Housing Set) |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 91551-A0618 |
BOLT FLANGE |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 91671-80612 |
Bolt |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
| 94151-80600 |
Nut, Cap(For Cylinder Head Cover) |
Heating & Air Conditioning - Cooler Piping ([10.2006 - ] (0610- )NZE15#) |
