Search › Model › NZE154

NZE154

Toyota AURIS-COROLLA · 2006 · 4,294 parts · 198 categories

4,294 items

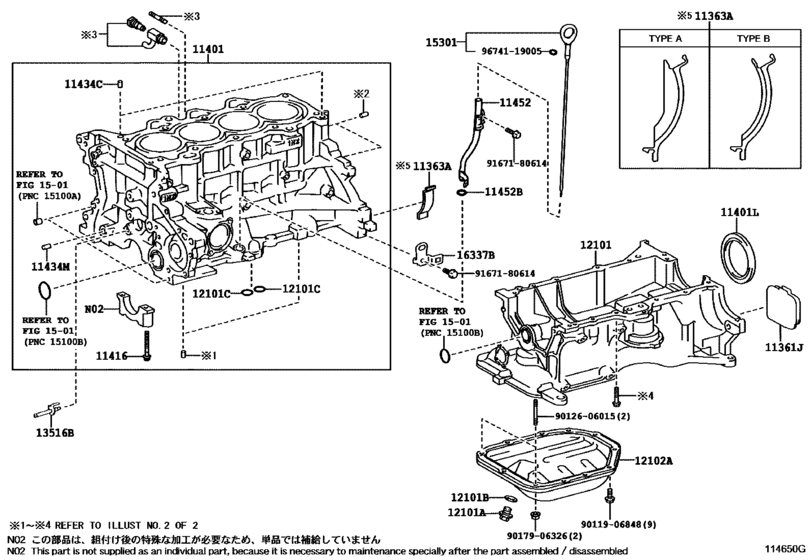

Cylinder Block ([10.2006 - ] (0610- )1NZFE) 47

#	OEM	Part name
11361	11361-21011	Cover, Flywheel Housing Under
11363	11363-21010	Cover, Flywheel Housing Side
11363	11363-33010	Cover, Flywheel Housing Side
11401	11401-29865	Block Sub-Assy, Cylinder
11401	11401-80882	Block Sub-Assy, Cylinder
11401	12315-21044	Bracket, Engine Mounting, Rh(For Transverse Engine)
11401	15100-21062	Pump Assy, Oil
11401	91551-80635	Bolt(For Head To Camshaft Bearing Cap)
11401	91551-C0830	BOLT FLANGE
11401	11401-29866	Block Sub-Assy, Cylinder
11401	11401-29867	Block Sub-Assy, Cylinder
11401	11401-29868	Block Sub-Assy, Cylinder
11401	90311-75016	Seal, Engine Rear Oil
11401	90311-75022	Seal, Engine Rear Oil
11401	90311-75019	Seal, Engine Rear Oil
11415	90910-09107	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	90910-09087	Plug, Water Drain Cock(For Cylinder Block)
11416	90910-02125	Bolt(For Crankshaft Bearing Cap Set)
11432	90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)
11434	90250-08120	Pin, Straight, No.1
11434	90250-10030	Pin, Straight(For Clutch Housing Set)
11434	90250-10113	Pin, Straight(For Timing Gear Cover Set)
11452	11452-21030	Guide, Oil Level Gage
11452	96721-19010	Ring, O(For Oil Level Gage Guide)
12101	12111-21033	Pan Sub-Assy, Oil
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-T0004	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12101	96722-24020	Ring, O(For Oil Pan)
12102	12102-21010	Pan Sub-Assy, Oil, No.2
13516	13516-21010	Jet, Oil
13516	13516-21011	Jet, Oil
15301	15301-21030	Gage Sub-Assy, Oil Level
15301	15301-21060	Gage Sub-Assy, Oil Level
15301	15301-21062	GAGE SUB-ASSY OIL
15301	15301-21040	Gage Sub-Assy, Oil Level
16337	16337-21010	Stay, Water Outlet, No.1
9011908	90119-08B47	New Genuine Part
9011908	90119-08B48	New Genuine Part
9011908	90119-08B49	BOLT WWASHER
9011906848	90119-06848	BOLT WWASHER
9012606015	90126-06015	Bolt, Stud(For Oil Pan)
9012608037	90126-08037	Bolt, Stud(For Oil Strainer)
9017906326	90179-06326	NUT W-WASHER
9017906326	90182-A0010	New Genuine Part
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9674119005	96741-19005	O-Ring (For Oil Level Gage)

OEM	Part name	Category
11361-21011	Cover, Flywheel Housing Under	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
11363-21010	Cover, Flywheel Housing Side	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
11363-33010	Cover, Flywheel Housing Side	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
11401-29865	Block Sub-Assy, Cylinder	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
11401-29866	Block Sub-Assy, Cylinder	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
11401-29867	Block Sub-Assy, Cylinder	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
11401-29868	Block Sub-Assy, Cylinder	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
11401-80882	Block Sub-Assy, Cylinder	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
11452-21030	Guide, Oil Level Gage	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
12102-21010	Pan Sub-Assy, Oil, No.2	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
12111-21033	Pan Sub-Assy, Oil	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
12315-21044	Bracket, Engine Mounting, Rh(For Transverse Engine)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
13516-21010	Jet, Oil	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
13516-21011	Jet, Oil	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
15100-21062	Pump Assy, Oil	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
15301-21030	Gage Sub-Assy, Oil Level	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
15301-21040	Gage Sub-Assy, Oil Level	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
15301-21060	Gage Sub-Assy, Oil Level	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
15301-21062	GAGE SUB-ASSY OIL	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
16337-21010	Stay, Water Outlet, No.1	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90119-06848	BOLT WWASHER	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90119-08B47	New Genuine Part	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90119-08B48	New Genuine Part	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90119-08B49	BOLT WWASHER	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90126-06015	Bolt, Stud(For Oil Pan)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90126-08037	Bolt, Stud(For Oil Strainer)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90179-06326	NUT W-WASHER	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90182-A0010	New Genuine Part	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90250-08120	Pin, Straight, No.1	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90250-10030	Pin, Straight(For Clutch Housing Set)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90311-75016	Seal, Engine Rear Oil	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90311-75019	Seal, Engine Rear Oil	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90311-75022	Seal, Engine Rear Oil	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90341-T0004	Plug(For Oil Pan Drain)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90910-02125	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90910-09087	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
90910-09107	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
91551-80635	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
91551-C0830	BOLT FLANGE	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
96721-19010	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
96722-24020	Ring, O(For Oil Pan)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
96741-19005	O-Ring (For Oil Level Gage)	Cylinder Block ([10.2006 - ] (0610- )1NZFE)
