Search › Model › NZE151
NZE151

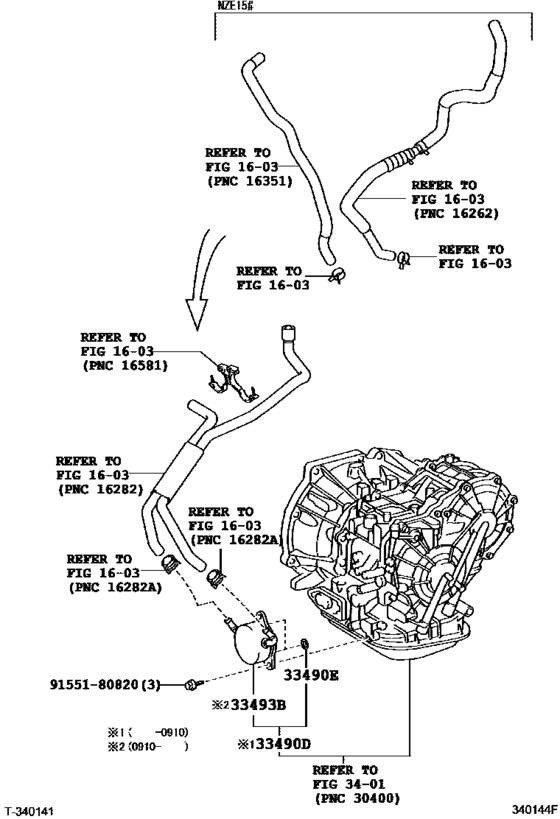

Oil Cooler & Tube(Cvt) ([10.2006 - ] K310,K311,K310F,K311F (0610- )CVFC) 7
| # | OEM | Part name |
|---|---|---|
| 33490 | 33490-12020 | Cooler Assy, Transmission Oil |
| 33490 | 33493-12020 | Cooler, Oil |
| 33490 | 90301-20012 | Ring, O (For Transmission Oil Cooler) |
| 33490 | 33490-12060 | Cooler Assy, Transmission Oil |
| 33490 | 33493-12050 | Cooler, Oil |
| 33490 | 90301-19020 | Ring, O (For Transmission Oil Cooler) |
| 9155180820 | 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) |
| OEM | Part name | Category |
|---|---|---|
| 33490-12020 | Cooler Assy, Transmission Oil | Oil Cooler & Tube(Cvt) ([10.2006 - ] K310,K311,K310F,K311F (0610- )CVFC) |
| 33490-12060 | Cooler Assy, Transmission Oil | Oil Cooler & Tube(Cvt) ([10.2006 - ] K310,K311,K310F,K311F (0610- )CVFC) |
| 33493-12020 | Cooler, Oil | Oil Cooler & Tube(Cvt) ([10.2006 - ] K310,K311,K310F,K311F (0610- )CVFC) |
| 33493-12050 | Cooler, Oil | Oil Cooler & Tube(Cvt) ([10.2006 - ] K310,K311,K310F,K311F (0610- )CVFC) |
| 90301-19020 | Ring, O (For Transmission Oil Cooler) | Oil Cooler & Tube(Cvt) ([10.2006 - ] K310,K311,K310F,K311F (0610- )CVFC) |
| 90301-20012 | Ring, O (For Transmission Oil Cooler) | Oil Cooler & Tube(Cvt) ([10.2006 - ] K310,K311,K310F,K311F (0610- )CVFC) |
| 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) | Oil Cooler & Tube(Cvt) ([10.2006 - ] K310,K311,K310F,K311F (0610- )CVFC) |
