NZE151

Toyota AURIS-COROLLA · 2006 · 3,942 parts · 192 categories

3,942 items

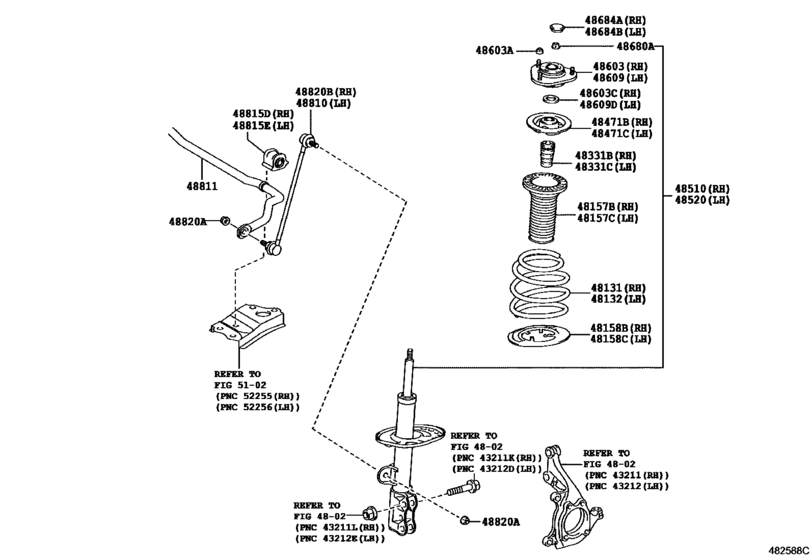

Front Spring & Shock Absorber ([10.2006 - ] (0610- )) 20

#	OEM	Part name
48131	48131-12A40	Spring, Front Coil, Rh
48157	48157-42030	Insulator, Front Coil Spring, Upper
48158	48158-12040	Insulator, Front Coil Spring, Lower
48331	48331-12220	Bumper, Front Spring
48471	48044-42010	Seat, Front Coil Spring, Upper
48510	48510-80334	Absorber Assy, Shock, Front Rh
48510	48510-80457	Absorber Assy, Shock, Front Rh
48520	48520-80108	Absorber Assy, Shock, Front Lh
48520	48520-80200	Absorber Assy, Shock, Front Lh
48603	48609-12500	Support Sub-Assy, Front Suspension
48603	48609-12570	Support Sub-Assy, Front Suspension
48603	90178-10030	Nut(For Front Suspension Support)
48603	90303-22002	Seal, Dust(For Front Suspension Support)
48680	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48684	48684-52010	Cover, Front Suspension Support Dust
48810	48820-42030	Link Assy, Front Stabilizer
48811	48811-12A10	Bar, Stabilizer, Front
48815	48815-12390	Bush, Front Stabilizer Bar, No.1
48815	48815-12370	Bush, Front Stabilizer Bar, No.1
48820	90179-12151	Nut(For Front Stabilizer Link)

OEM	Part name	Category
48044-42010	Seat, Front Coil Spring, Upper	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48131-12A40	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48157-42030	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48158-12040	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48331-12220	Bumper, Front Spring	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48510-80334	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48510-80457	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48520-80108	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48520-80200	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48609-12500	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48609-12570	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48684-52010	Cover, Front Suspension Support Dust	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48811-12A10	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48815-12370	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48815-12390	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
48820-42030	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
90178-10030	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
90179-12151	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
90303-22002	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([10.2006 - ] (0610- ))
