NZE144

Toyota COROLLA-AXIO-FIELDER · 2006 · 5,184 parts · 228 categories
NZE144 ×

← Back to categories

5,184 items

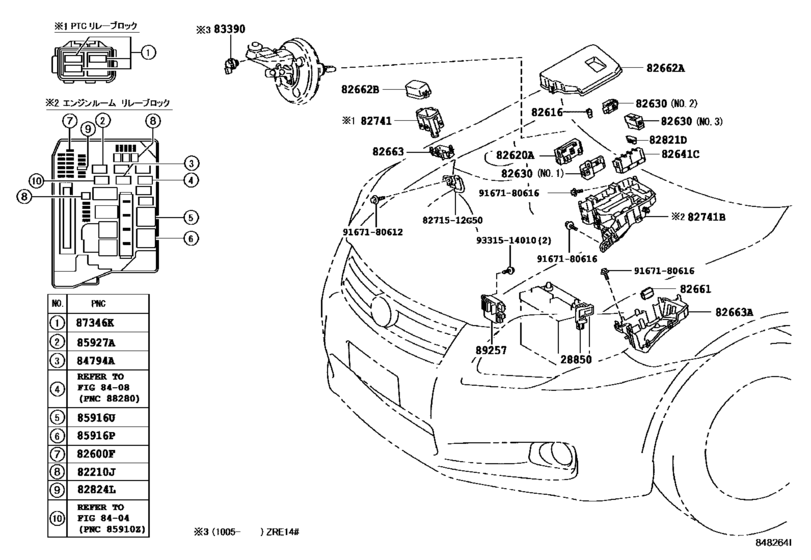

Switch & Relay & Computer ([09.2006 - ] ｴﾝｼﾞﾝﾙｰﾑ (0609- )) 35
#OEMPart name
28850 28850-21020 Sensor Assy, Battery Current
82210 90982-08294 Fusible Link
82210 90982-08295 Fusible Link
82210 90982-08296 Fusible Link
82600 90982-09020 Fusible Link
82600 90982-09021 Fusible Link
82600 90982-09022 Instrument Panel Fuse
82600 90982-09023 Instrument Panel Fuse
82600 90982-09024 Instrument Panel Fuse
82600 90982-09025 Instrument Panel Fuse
82616 82616-58010 Puller, Fuse
82620 82620-12280 Block Assy, Fusible Link
82630 82631-12070 Holder Assy, Fuse
82630 82631-12080 Holder Assy, Fuse
82630 82631-12090 Holder Assy, Fuse
82641 82641-47020 Relay, Integration No.1
82661 82661-12310 Cover, Relay Block, No.1
82662 82662-12330 Cover, Relay Block, Upper, No.1
82662 82662-12331 Cover, Relay Block, Upper, No.1
82662 82662-12280 Cover, Relay Block, Upper, No.2
82663 82663-12070 Cover, Relay Block, Lower
82663 82663-12100 Cover, Relay Block, Lower
82741 82741-12080 Block, Engine Room Relay
82741 82741-12110 Block, Engine Room Relay
82821 82821-47090 Cover, Connector
82824 82824-20140 Connector, Wiring Harness
84794 90987-02027 Relay
85916 90987-02025 Relay
85916 90987-04010 Relay Assy (For Heater Blower Motor)
89257 89257-12010 Computer, Cooling Fan
89257 89257-K0010 COMPUTER COOLING
8271512 82715-12G50 Bracket,wiring Harness Clamp
9167180612 91671-80612 Bolt
9167180616 91671-80616 BOLT FLANGE
9331514010 93315-14010 SCREW
Source
Public OEM parts-catalog data
Variants
2 / 3
Category
228
Collected
2026-08-02
