Search › Model › NZE144

NZE144

Toyota COROLLA-AXIO-FIELDER · 2006 · 5,184 parts · 228 categories

5,184 items

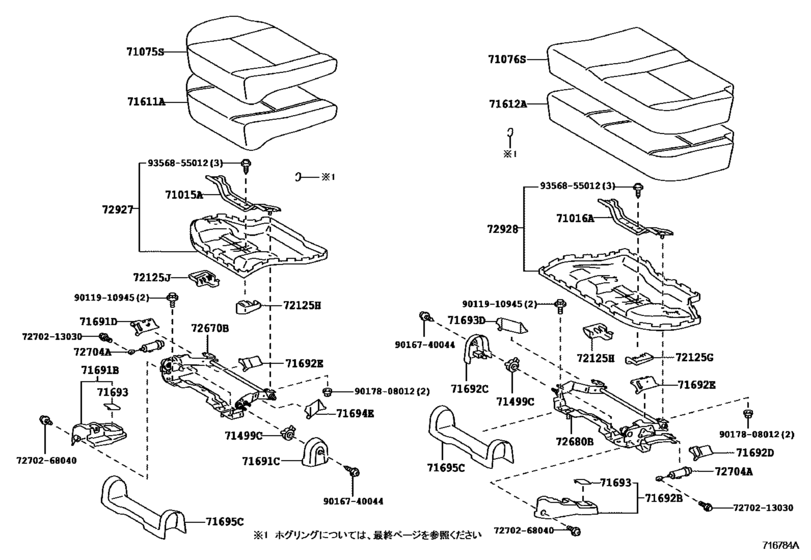

Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG) 78

#	OEM	Part name
71015	71015-1F020	Frame Sub-Assy, Rear Seat Cushion, Rh
71016	71016-13090	Frame Sub-Assy, Rear Seat Cushion, Lh
71075	71075-13A40-B2	Cover, Rear Seat Cushion, Rh (For Separate Type)
71075	71075-13A40-E1	Cover, Rear Seat Cushion, Rh (For Separate Type)
71075	71075-13A50-B2	Cover, Rear Seat Cushion, Rh (For Separate Type)
71075	71075-13A60-B3	Cover, Rear Seat Cushion, Rh (For Separate Type)
71075	71075-13A60-E1	Cover, Rear Seat Cushion, Rh (For Separate Type)
71075	71075-13A80-B0	Cover, Rear Seat Cushion, Rh (For Separate Type)
71075	71075-13A90-B0	Cover, Rear Seat Cushion, Rh (For Separate Type)
71075	71075-13B00-B0	Cover, Rear Seat Cushion, Rh (For Separate Type)
71075	71075-13B20-B0	Cover, Rear Seat Cushion, Rh (For Separate Type)
71075	71075-13B21-B0	Cover, Rear Seat Cushion, Rh (For Separate Type)
71075	71075-13C50-H0	Cover, Rear Seat Cushion, Rh (For Separate Type)
71076	71076-13730-B2	Cover, Rear Seat Cushion, Lh (For Separate Type)
71076	71076-13730-E1	Cover, Rear Seat Cushion, Lh (For Separate Type)
71076	71076-13740-B2	Cover, Rear Seat Cushion, Lh (For Separate Type)
71076	71076-13750-B3	Cover, Rear Seat Cushion, Lh (For Separate Type)
71076	71076-13750-E1	Cover, Rear Seat Cushion, Lh (For Separate Type)
71076	71076-13770-B0	Cover, Rear Seat Cushion, Lh (For Separate Type)
71076	71076-13780-B0	Cover, Rear Seat Cushion, Lh (For Separate Type)
71076	71076-13790-B0	Cover, Rear Seat Cushion, Lh (For Separate Type)
71076	71076-13810-B0	Cover, Rear Seat Cushion, Lh (For Separate Type)
71076	71076-13811-B0	Cover, Rear Seat Cushion, Lh (For Separate Type)
71076	71076-13820-H0	Cover, Rear Seat Cushion, Lh (For Separate Type)
71499	71499-13090	Damper, Rear Seat Cushion Spring
71611	71611-13330	Pad, Rear Seat Cushion, Rh
71611	71611-13340	Pad, Rear Seat Cushion, Rh
71612	71612-13190	Pad, Rear Seat Cushion, Lh
71612	71612-13200	Pad, Rear Seat Cushion, Lh
71691	71691-13030-B0	Cover, Rear Seat Lock, Outer Rh
71691	71691-13030-E0	Cover, Rear Seat Lock, Outer Rh
71691	71691-13040-B0	Cover, Rear Seat Lock, Inner Rh
71691	71691-13040-E0	Cover, Rear Seat Lock, Inner Rh
71691	71691-13050-B0	Cover, Rear Seat Cushion Hinge, Upper Rh
71691	71691-13050-E0	Cover, Rear Seat Cushion Hinge, Upper Rh
71692	71692-13020-B0	Cover, Rear Seat Lock, Outer Lh
71692	71692-13020-E0	Cover, Rear Seat Lock, Outer Lh
71692	71692-13030-B0	Cover, Rear Seat Lock, Inner Lh
71692	71692-13030-E0	Cover, Rear Seat Lock, Inner Lh
71692	71691-13060-B0	Cover, Rear Seat Cushion Hinge, Upper Lh
71692	71691-13060-E0	Cover, Rear Seat Cushion Hinge, Upper Lh
71692	71692-13050-B0	Cover, Rear Seat Cushion Hinge, No.2
71692	71692-13050-E0	Cover, Rear Seat Cushion Hinge, No.2
71692	71692-13060-B0	Cover, Rear Seat Cushion Hinge, No.2
71692	71692-13060-E0	Cover, Rear Seat Cushion Hinge, No.2
71693	71693-13050-B0	Cover, Rear Seat Cushion Hinge, Lower Rh
71693	71693-13050-E0	Cover, Rear Seat Cushion Hinge, Lower Rh
71693	71691-13070-B0	Cover, Rear Seat Cushion Hinge, Inner Rh
71693	71691-13070-E0	Cover, Rear Seat Cushion Hinge, Inner Rh
71694	71692-13040-B0	Cover, Rear Seat Cushion Hinge, Inner Lh
71694	71692-13040-E0	Cover, Rear Seat Cushion Hinge, Inner Lh
71695	71695-13030-B0	Protector, Rear Seat, No.1
71695	71695-13030-E0	Protector, Rear Seat, No.1
72125	72125-13090-B0	Cover, Seat Track Lock Plate, No.1
72125	72125-13090-E0	Cover, Seat Track Lock Plate, No.1
72125	72125-13070-B0	Cover, Seat Track Lock Plate, No.2
72125	72125-13070-E0	Cover, Seat Track Lock Plate, No.2
72125	72125-13080-B0	Cover, Seat Track Lock Plate, No.2
72125	72125-13080-E0	Cover, Seat Track Lock Plate, No.2
72125	72125-13060-B0	Cover, Seat Track Lock Plate, No.3
72125	72125-13060-E0	Cover, Seat Track Lock Plate, No.3
72670	72670-13030	Lock Assy, Rear Seat Cushion, Rh
72670	72670-13031	Lock Assy, Rear Seat Cushion, Rh
72680	72680-13030	Lock Assy, Rear Seat Cushion, Lh
72680	72680-13031	Lock Assy, Rear Seat Cushion, Lh
72704	72704-13040	Cable, Rear Seat Reclining Control
72927	72927-13080-B0	Cover, Rear Seat Cushion Under, Rh
72927	72927-13080-E0	Cover, Rear Seat Cushion Under, Rh
72927	72927-13090-B0	Cover, Rear Seat Cushion Under, Rh
72928	72928-13070-B0	Cover, Rear Seat Cushion Under, Lh
72928	72928-13070-E0	Cover, Rear Seat Cushion Under, Lh
72928	72928-13080-B0	Cover, Rear Seat Cushion Under, Lh
7270213030	72702-13030	Bracket Sub-assy, Rear Seat Back Striker
7270268040	72702-68040	Bracket Sub-assy, Rear Seat Back Striker
9011910945	90119-10945	New Genuine Part
9016740044	90167-40044	BOLT
9017808012	90178-08012	NUT FLANGE
9356855012	93568-55012	SCREW

OEM	Part name	Category
71015-1F020	Frame Sub-Assy, Rear Seat Cushion, Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71016-13090	Frame Sub-Assy, Rear Seat Cushion, Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71075-13A40-B2	Cover, Rear Seat Cushion, Rh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71075-13A40-E1	Cover, Rear Seat Cushion, Rh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71075-13A50-B2	Cover, Rear Seat Cushion, Rh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71075-13A60-B3	Cover, Rear Seat Cushion, Rh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71075-13A60-E1	Cover, Rear Seat Cushion, Rh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71075-13A80-B0	Cover, Rear Seat Cushion, Rh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71075-13A90-B0	Cover, Rear Seat Cushion, Rh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71075-13B00-B0	Cover, Rear Seat Cushion, Rh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71075-13B20-B0	Cover, Rear Seat Cushion, Rh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71075-13B21-B0	Cover, Rear Seat Cushion, Rh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71075-13C50-H0	Cover, Rear Seat Cushion, Rh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71076-13730-B2	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71076-13730-E1	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71076-13740-B2	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71076-13750-B3	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71076-13750-E1	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71076-13770-B0	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71076-13780-B0	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71076-13790-B0	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71076-13810-B0	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71076-13811-B0	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71076-13820-H0	Cover, Rear Seat Cushion, Lh (For Separate Type)	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71499-13090	Damper, Rear Seat Cushion Spring	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71611-13330	Pad, Rear Seat Cushion, Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71611-13340	Pad, Rear Seat Cushion, Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71612-13190	Pad, Rear Seat Cushion, Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71612-13200	Pad, Rear Seat Cushion, Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71691-13030-B0	Cover, Rear Seat Lock, Outer Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71691-13030-E0	Cover, Rear Seat Lock, Outer Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71691-13040-B0	Cover, Rear Seat Lock, Inner Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71691-13040-E0	Cover, Rear Seat Lock, Inner Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71691-13050-B0	Cover, Rear Seat Cushion Hinge, Upper Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71691-13050-E0	Cover, Rear Seat Cushion Hinge, Upper Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71691-13060-B0	Cover, Rear Seat Cushion Hinge, Upper Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71691-13060-E0	Cover, Rear Seat Cushion Hinge, Upper Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71691-13070-B0	Cover, Rear Seat Cushion Hinge, Inner Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71691-13070-E0	Cover, Rear Seat Cushion Hinge, Inner Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71692-13020-B0	Cover, Rear Seat Lock, Outer Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71692-13020-E0	Cover, Rear Seat Lock, Outer Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71692-13030-B0	Cover, Rear Seat Lock, Inner Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71692-13030-E0	Cover, Rear Seat Lock, Inner Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71692-13040-B0	Cover, Rear Seat Cushion Hinge, Inner Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71692-13040-E0	Cover, Rear Seat Cushion Hinge, Inner Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71692-13050-B0	Cover, Rear Seat Cushion Hinge, No.2	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71692-13050-E0	Cover, Rear Seat Cushion Hinge, No.2	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71692-13060-B0	Cover, Rear Seat Cushion Hinge, No.2	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71692-13060-E0	Cover, Rear Seat Cushion Hinge, No.2	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71693-13050-B0	Cover, Rear Seat Cushion Hinge, Lower Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71693-13050-E0	Cover, Rear Seat Cushion Hinge, Lower Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71695-13030-B0	Protector, Rear Seat, No.1	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
71695-13030-E0	Protector, Rear Seat, No.1	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72125-13060-B0	Cover, Seat Track Lock Plate, No.3	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72125-13060-E0	Cover, Seat Track Lock Plate, No.3	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72125-13070-B0	Cover, Seat Track Lock Plate, No.2	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72125-13070-E0	Cover, Seat Track Lock Plate, No.2	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72125-13080-B0	Cover, Seat Track Lock Plate, No.2	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72125-13080-E0	Cover, Seat Track Lock Plate, No.2	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72125-13090-B0	Cover, Seat Track Lock Plate, No.1	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72125-13090-E0	Cover, Seat Track Lock Plate, No.1	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72670-13030	Lock Assy, Rear Seat Cushion, Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72670-13031	Lock Assy, Rear Seat Cushion, Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72680-13030	Lock Assy, Rear Seat Cushion, Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72680-13031	Lock Assy, Rear Seat Cushion, Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72702-13030	Bracket Sub-assy, Rear Seat Back Striker	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72702-68040	Bracket Sub-assy, Rear Seat Back Striker	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72704-13040	Cable, Rear Seat Reclining Control	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72927-13080-B0	Cover, Rear Seat Cushion Under, Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72927-13080-E0	Cover, Rear Seat Cushion Under, Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72927-13090-B0	Cover, Rear Seat Cushion Under, Rh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72928-13070-B0	Cover, Rear Seat Cushion Under, Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72928-13070-E0	Cover, Rear Seat Cushion Under, Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
72928-13080-B0	Cover, Rear Seat Cushion Under, Lh	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
90119-10945	New Genuine Part	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
90167-40044	BOLT	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
90178-08012	NUT FLANGE	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
93568-55012	SCREW	Rear Seat & Seat Track ([09.2006 - ] ｼｰﾄｸｯｼｮﾝ (0609- )WG)
