| 16057-21010 |
Hose Sub-Assy, Radiator |

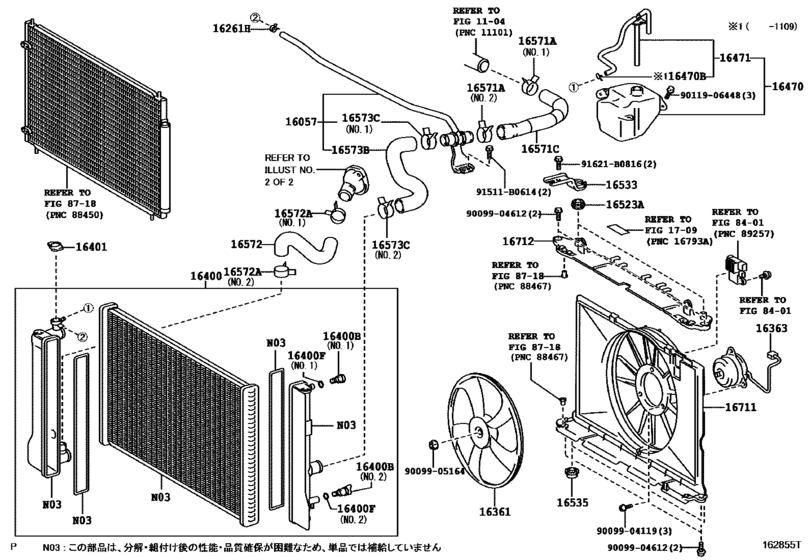

Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16361-21110 |
Fan |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16363-22120 |
Motor, Cooling Fan |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16401-20353 |
Cap Sub-Assy, Radiator |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16401-36030 |
Cap Sub-Assy, Radiator |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16401-72090 |
Cap Sub-Assy, Radiator |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16405-21060 |
Cap Sub-Assy, Reserve Tank |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16410-21180 |
Radiator Assy |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16417-21280 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16417-28530 |
Plug, Radiator Drain Cock |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16418-20290 |
Packing(For Radiator Drain Cock) |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16470-21020 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16492-21050 |
Ring, O(For Oil Cooler Drain Cock) |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16523-21050 |
Cushion, Radiator Support |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16533-21030 |
Support, Radiator, Upper |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16535-21050 |
Support, Radiator, Lower |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16535-21090 |
Support, Radiator, Lower |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16535-21091 |
Support, Radiator, Lower |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16571-21130 |
Hose, Radiator, No.1 |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16572-21100 |
Hose, Radiator, Outlet |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16573-21080 |
Hose, Radiator, No.3 |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16711-21140 |
Shroud, Fan |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 16712-21010 |
Shroud, Fan, No.2 |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 90099-04119 |
BOLT WASHER HEAD |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 90099-04612 |
Bolt |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 90099-05164 |
Nut |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 90119-06448 |
Screw(For Steering Column Tube) |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 90466-11001 |
Clamp Or Clip(For Radiator Reserve Tank Hose) |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 90466-35001 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 90467-15022 |
Clip Or Clamp(For Ventilation Hose) |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 91511-B0614 |
BOLT, FLANGE |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 91621-B0816 |
BOLT WWASHER |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 96136-43901 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
| 96136-44301 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([09.2006 - ] (0609- )1NZFE) |
