Search › Model › NZE144

NZE144

Toyota COROLLA-AXIO-FIELDER · 2006 · 5,184 parts · 228 categories

5,184 items

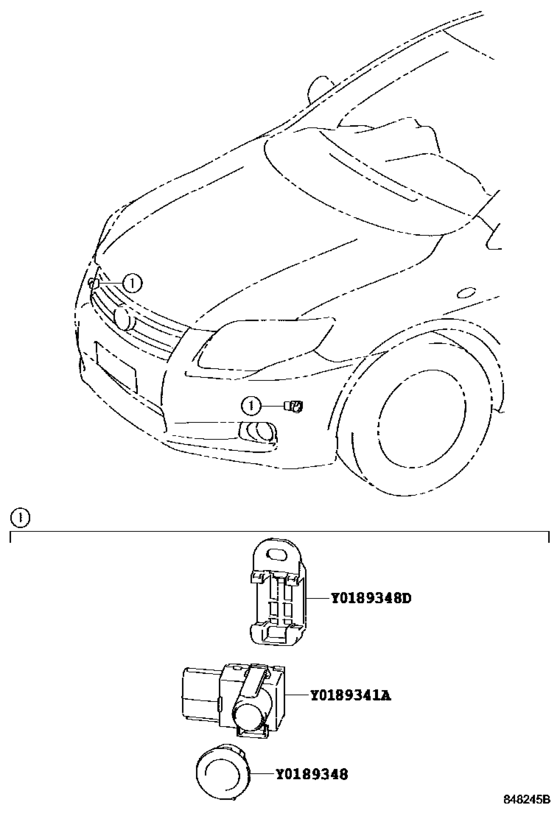

Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X) 26

#	OEM	Part name
89341	89341-12090-A0	Sensor, Ultrasonic, No.1
89341	89341-12090-A1	Sensor, Ultrasonic, No.1
89341	89341-12090-B0	Sensor, Ultrasonic, No.1
89341	89341-12090-C0	Sensor, Ultrasonic, No.1
89341	89341-12090-C1	Sensor, Ultrasonic, No.1
89341	89341-12090-D0	Sensor, Ultrasonic, No.1
89341	89341-12090-E1	Sensor, Ultrasonic, No.1
89341	89341-12090-J0	Sensor, Ultrasonic, No.1
89341	89341-12090-J1	Sensor, Ultrasonic, No.1
89341	89341-12090-B1	Sensor, Ultrasonic, No.1
89341	89341-12090-E0	Sensor, Ultrasonic, No.1
89341	89341-12090-G0	Sensor, Ultrasonic, No.1
89341	89341-12090-J2	Sensor, Ultrasonic, No.1
89348	89348-12010-A0	Retainer, Ultrasonic Sensor, No.1
89348	89348-12010-A1	Retainer, Ultrasonic Sensor, No.1
89348	89348-12010-B0	Retainer, Ultrasonic Sensor, No.1
89348	89348-12010-C0	Retainer, Ultrasonic Sensor, No.1
89348	89348-12010-D0	Retainer, Ultrasonic Sensor, No.1
89348	89348-12010-E1	Retainer, Ultrasonic Sensor, No.1
89348	89348-12010-J0	Retainer, Ultrasonic Sensor, No.1
89348	89348-12010-J1	Retainer, Ultrasonic Sensor, No.1
89348	89348-33090	Clip, Ultrasonic Sensor
89348	89348-12010-B1	Retainer, Ultrasonic Sensor, No.1
89348	89348-12010-E0	Retainer, Ultrasonic Sensor, No.1
89348	89348-12010-G0	Retainer, Ultrasonic Sensor, No.1
89348	89348-12010-J6	Retainer, Ultrasonic Sensor, No.1

OEM	Part name	Category
89341-12090-A0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89341-12090-A1	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89341-12090-B0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89341-12090-B1	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89341-12090-C0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89341-12090-C1	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89341-12090-D0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89341-12090-E0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89341-12090-E1	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89341-12090-G0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89341-12090-J0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89341-12090-J1	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89341-12090-J2	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-12010-A0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-12010-A1	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-12010-B0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-12010-B1	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-12010-C0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-12010-D0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-12010-E0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-12010-E1	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-12010-G0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-12010-J0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-12010-J1	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-12010-J6	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)
89348-33090	Clip, Ultrasonic Sensor	Clearance & Back Sonar ([09.2006 - ] (0609- )S..HTWC ; (0609- )CVFC..G,LXL,X)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 228
Collected: 2026-08-02
