NZE140

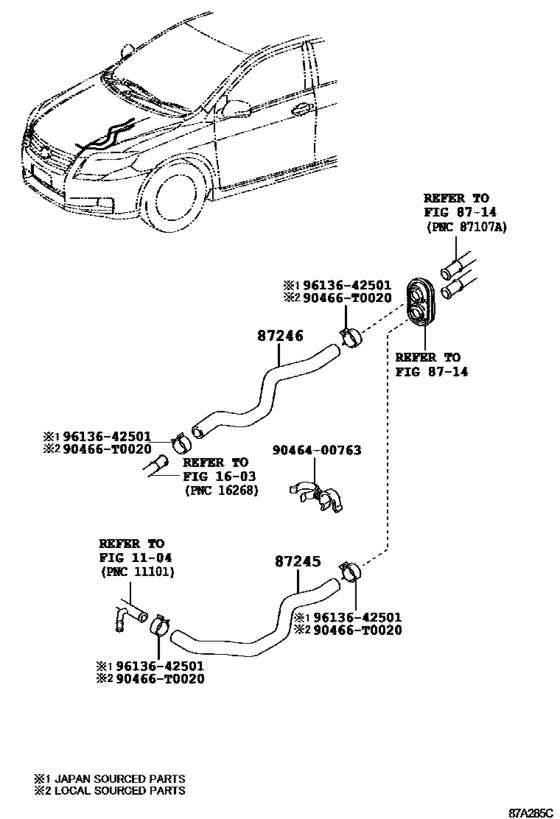

Heating & Air Conditioning - Water Piping ([08.2008 - ] (0808- )NZE140) 5
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-02D80 | Hose, Heater Water, Inlet |
| 87246 | 87245-02D90 | Hose, Heater Water, Outlet |
| 90466 | 90466-T0020 | Clip(For Water By-Pass Hose No.1) |
| 9046400763 | 90464-00763 | Clamp, Hose(For Water Hose) |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 87245-02D80 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([08.2008 - ] (0808- )NZE140) |
| 87245-02D90 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([08.2008 - ] (0808- )NZE140) |
| 90464-00763 | Clamp, Hose(For Water Hose) | Heating & Air Conditioning - Water Piping ([08.2008 - ] (0808- )NZE140) |
| 90466-T0020 | Clip(For Water By-Pass Hose No.1) | Heating & Air Conditioning - Water Piping ([08.2008 - ] (0808- )NZE140) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([08.2008 - ] (0808- )NZE140) |
