NZE140

Toyota COROLLA-ALTIS · 2008 · 2,804 parts · 167 categories
NZE140 ×

← Back to categories

2,804 items

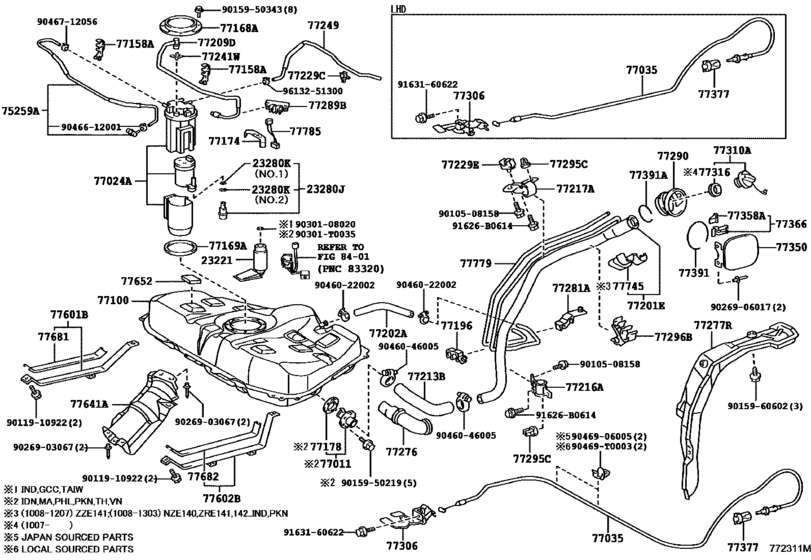

Fuel Tank & Tube ([12.2007 - ] FUEL TANK (0712- )HTWC) 80
#OEMPart name
23221 23220-0M030 Pump, Fuel
23280 23280-21020 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
75259 77259-02060 Hose, Fuel
77011 77011-02040 Pipe Sub-Assy, Fuel Tank Filler, Lower
77024 77024-02142 Plate Sub-Assy, Fuel Suction
77035 77035-02260 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-02420 Tank Sub-Assy, Fuel
77158 77158-20040 Support, Tank Suction Tube
77168 77168-52020 Plate, Fuel Tank Vent Tube Set
77169 77169-52010 Gasket, Fuel Suction Tube Set
77174 77174-02080 Support, Fuel Suction, No.1
77178 77178-0A010 Gasket, Fuel Tank Filler Pipe, Lower
77196 77196-12060 Clamp, Evaporation Vent Tube, No.1
77201 77201-02270 Pipe Sub-Assy, Fuel Tank Filler
77202 95313-13034 Hose, Fuel, No.1 (For Breather Tube)
77209 77209-02130 Tube Sub-Assy, Fuel Tank Main
77213 77213-32090 Hose, Fuel Tank To Filler Pipe
77216 77216-02140 Support, Fuel Tank Filler Pipe, No.1
77217 77217-02100 Support, Fuel Tank Filler Pipe, No.2
77229 77229-12110 Clamp, Breather Tube
77229 77229-12100 Clamp, Breather Tube
77241 77241-33011 Clip, Tube Joint
77241 77241-60320 Clip, Tube Joint
77249 77249-02030 Hose, Fuel Emission
77276 77276-12050 Protector, Fuel Hose
77276 77276-12120 Protector, Fuel Hose
77276 77276-12130 Protector, Fuel Hose
77277 77277-02090 Protector, Fuel Tank Filler Pipe
77281 77281-12110 Clamp, Fuel Filler Pipe
77289 77289-52100 Clamp, Fuel Tube, No.3
77290 77291-02130 Shield Assy, Fuel Tank Filler Pipe
77295 77295-12070 Grommet, Fuel Tube
77296 77296-12070 Plate, Fuel Tube Support
77306 64606-12060 Lever Sub-Assy, Luggage Door Lock Open
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77350 77350-02080 Lid Assy, Fuel Filler Opening
77358 77358-30060 Stopper, Fuel Filler Opening Lid
77366 77360-30080 Spring Assy, Fuel Filler Opening Lid
77377 77377-06020 Retainer, Fuel Filler Opening Lid Lock
77391 77391-12060 Ring, Fuel Inlet Box
77391 77391-02020 Ring, Fuel Inlet Box
77391 77391-12020 Ring, Fuel Inlet Box
77601 77601-02090 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-02090 Band Sub-Assy, Fuel Tank, No.1 Lh
77641 77641-02150 Protector, Fuel Tank, No.1
77652 77651-02060 Cushion, Fuel Tank, No.1
77652 77651-20090 Cushion, Fuel Tank, No.1
77681 77616-02050 Seat, Fuel Tank Band, Rh
77681 77616-68010 Seat, Fuel Tank Band, Rh
77682 77681-02060 Seat, Fuel Tank Band, Lh
77682 77681-12070 Seat, Fuel Tank Band, Rh
77745 77745-52030 Filter, Charcoal Canister, No.1
77779 77779-02030 Tube, Charcoal Canister Outlet
77785 77785-02060 Harness, Fuel Pump
77785 77785-02061 Harness, Fuel Pump
90301 90301-T0035 Ring, O(For Fuel Pump)
90469 90469-T0003 Clamp(For Hood Lock Control Cable)
91626 91626-B0614 BOLT, W/WASHER
9010508158 90105-08158 Plug(For Fuel Sub-Tank)
9011910922 90119-10922 BOLT WWASHER
9011910922 90080-11654 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015950343 90159-50343 SCREW, W-WASHER
9015960602 90159-60602 SCREW
9026903067 90269-03067 RIVET
9026906017 90269-06017 RIVET
9030108020 90301-08020 Ring, O(For Fuel Pump)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046612001 90466-12001 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046906005 90469-06005 Clamp(For Hood Lock Control Cable)
9163160622 91631-60622 Screw
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
