Search › Model › NZE140

NZE140

Toyota COROLLA-ALTIS · 2008 · 2,804 parts · 167 categories

2,804 items

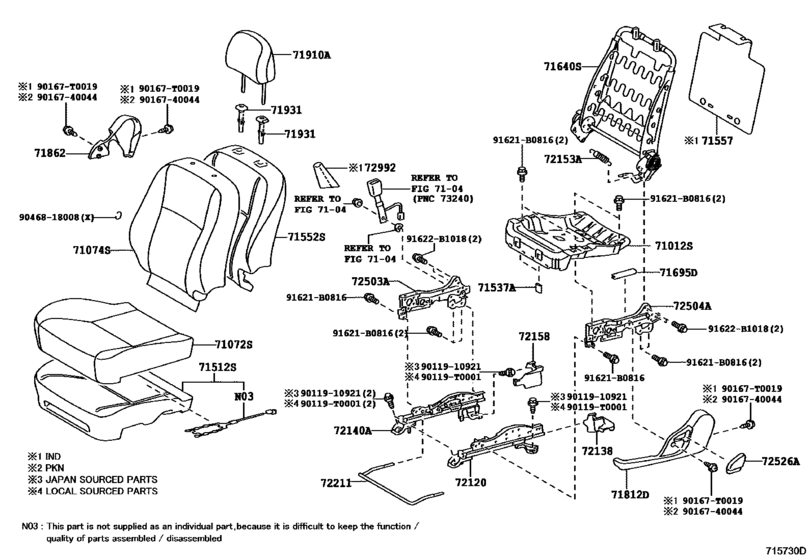

Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN) 37

#	OEM	Part name
71012	71011-0K030	Frame Sub-Assy, Front Seat Cushion, Rh
71012	71011-0K050	Frame Sub-Assy, Front Seat Cushion, Rh
71072	71072-02L30-E1	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-02L30-E2	Cover, Front Seat Cushion, Lh(For Separate Type)
71074	71074-02S70-E1	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-02S70-E2	Cover, Front Seat Back, Lh(For Separate Type)
71512	71512-02270	Pad, Front Seat Cushion, Lh (For Separate Type)
71537	71537-0K020	Protector, Front Seat Cushion
71552	71552-02440	Pad, Front Seat Back, Lh(For Separate Type)
71640	71640-0K040	Spring Assy, Front Seat Back, Lh(For Separate Type)
71695	71537-71010	Protector, Front Seat Cushion Edge, Rh
71812	71812-0K020-E0	Shield, Front Seat Cushion, Lh
71862	71862-0K020-E0	Shield, Front Seat Cushion, Inner Lh
71910	71910-02C20-E1	Headrest Assy, Front Seat
71910	71910-02C20-E2	Headrest Assy, Front Seat
71910	71910-02C20-E3	Headrest Assy, Front Seat
71931	71930-02050-E1	Support, Front Seat Headrest
71931	71931-02030-E1	Support, Front Seat Headrest
72120	72120-02100	Track Assy, Front Seat, Outer Lh
72138	72138-02160	Cover, Seat Track, Outer Lh - SEAT TRACK OUTER, LH
72140	72140-02100	Track Assy, Front Seat,inner Lh
72153	72637-0K010	Spring, Seat Back, Rh
72158	72158-02170	Cover, Seat Track Bracket, Inner Lh
72211	72211-0K010	Handle Sub-Assy, Seat Track Rh
72503	72503-0K040	Arm Sub-Assy, Reclining Adjuster, Lower Rh
72503	72503-0K041	Arm Sub-Assy, Reclining Adjuster, Lower Rh
72503	73214-0K010	Plate, Front Seat Belt Anchor
72504	72504-0K030	Arm Sub-Assy, Reclining Adjuster, Lower Lh
72526	72526-0K040-E0	Handle, Reclining Adjuster Release, Lh
90119	90119-T0001	BOLTWWSH
90167	90167-T0019	SCREW PAN TAPPING
91621	91621-B0816	BOLT WWASHER
91622	91622-B1018	BOLT WWASHER
9011910921	90119-10921	BOLT WWASHER
9016740044	90167-40044	BOLT
9046818008	90468-18008	Clip (For Rear Seat Back)
9046818008	90468-16019	Clip (For Rear Seat Back)

OEM	Part name	Category
71011-0K030	Frame Sub-Assy, Front Seat Cushion, Rh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71011-0K050	Frame Sub-Assy, Front Seat Cushion, Rh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71072-02L30-E1	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71072-02L30-E2	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71074-02S70-E1	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71074-02S70-E2	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71512-02270	Pad, Front Seat Cushion, Lh (For Separate Type)	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71537-0K020	Protector, Front Seat Cushion	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71537-71010	Protector, Front Seat Cushion Edge, Rh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71552-02440	Pad, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71640-0K040	Spring Assy, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71812-0K020-E0	Shield, Front Seat Cushion, Lh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71862-0K020-E0	Shield, Front Seat Cushion, Inner Lh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71910-02C20-E1	Headrest Assy, Front Seat	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71910-02C20-E2	Headrest Assy, Front Seat	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71910-02C20-E3	Headrest Assy, Front Seat	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71930-02050-E1	Support, Front Seat Headrest	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
71931-02030-E1	Support, Front Seat Headrest	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
72120-02100	Track Assy, Front Seat, Outer Lh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
72138-02160	Cover, Seat Track, Outer Lh - SEAT TRACK OUTER, LH	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
72140-02100	Track Assy, Front Seat,inner Lh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
72158-02170	Cover, Seat Track Bracket, Inner Lh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
72211-0K010	Handle Sub-Assy, Seat Track Rh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
72503-0K040	Arm Sub-Assy, Reclining Adjuster, Lower Rh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
72503-0K041	Arm Sub-Assy, Reclining Adjuster, Lower Rh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
72504-0K030	Arm Sub-Assy, Reclining Adjuster, Lower Lh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
72526-0K040-E0	Handle, Reclining Adjuster Release, Lh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
72637-0K010	Spring, Seat Back, Rh	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
73214-0K010	Plate, Front Seat Belt Anchor	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
90119-10921	BOLT WWASHER	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
90119-T0001	BOLTWWSH	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
90167-40044	BOLT	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
90167-T0019	SCREW PAN TAPPING	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
90468-16019	Clip (For Rear Seat Back)	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
90468-18008	Clip (For Rear Seat Back)	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
91621-B0816	BOLT WWASHER	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)
91622-B1018	BOLT WWASHER	Front Seat & Seat Track ([08.2008 - ] LH MANUAL SEAT (0808- )IND,PKN)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 167
Collected: 2026-08-02
