Search › Model › NZE124

NZE124

Toyota COROLLA-RUNX-ALLEX · 2001 · 5,243 parts · 234 categories

5,243 items

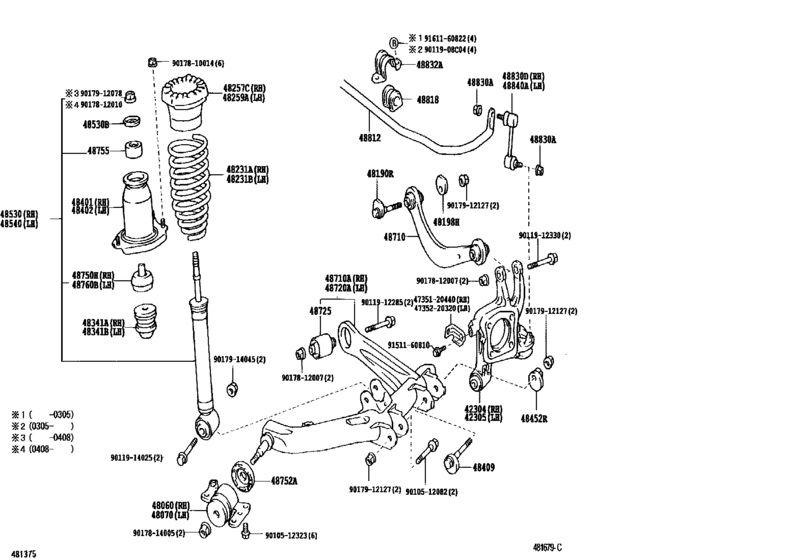

Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124) 51

#	OEM	Part name
42304	42304-63010	Carrier Sub-Assy, Rear Axle, Rh
42305	42305-63010	Carrier Sub-Assy, Rear Axle, Lh
48060	48060-32040	Bracket Assy, Rear Suspension Arm, Rh
48070	48070-32040	Bracket Assy, Rear Suspension Arm, Lh
48190	48190-32010	Cam Assy, Camber Adjust
48198	48198-32040	Cam, Rear Suspension Camber Adjust, No.2 Rh
48231	48231-1H660	Spring, Coil, Rear Rh
48257	48257-12030	Insulator, Rear Coil Spring, Upper Rh
48341	48341-32100	Bumper, Rear Spring, No.1
48401	48401-32010	Bracket Sub-Assy, Rear Spring, Front Rh
48409	48409-32040	Cam Sub-Assy, Rear Suspension Toe Adjust
48452	48452-32040	Plate, Rear Suspension Toe Adjust, No.2
48530	48530-80041	Absorber Assy, Shock, Rear Rh
48530	48530-80056	Absorber Assy, Shock, Rear Rh
48530	48530-80098	Absorber Assy, Shock, Rear
48530	48530-80280	Absorber Assy, Shock, Rear
48530	48530-80272	Absorber Assy, Shock, Rear
48530	90948-03021	Washer, Rear Shock Absorber Cushion, No.1
48710	48770-20010	Arm Assy, Upper Control
48710	48770-20020	Arm Assy, Upper Control
48710	48710-32093	Arm Assy, Rear Suspension, No.1 Rh
48720	48720-32093	Arm Assy, Rear Suspension, No.1 Lh
48725	48725-32250	Bush, Lower Control Arm
48750	48750-32170	Support Assy, Rear Suspension, Rh
48752	48752-32011	Stopper, Rear Suspension Support
48755	48755-20010	Cushion, Rear Shock Absorber, No.1
48812	48812-12320	Bar, Stabilizer, Rear
48812	48812-12340	Bar, Stabilizer, Rear
48818	48818-12260	Bush, Stabilizer, Rear
48818	48818-20350	Bush, Stabilizer, Rear
48830	90179-10183	Nut(For Front Stabilizer Link)
48830	48830-32050	Link Assy, Rear Stabilizer
48832	48832-32120	Bracket, Rear Stabilizer Bar, No.1
9011908	90119-08C04	BOLT WWASHER
4735120440	47351-20440	Bracket, Flexible Hose, Rh
4735220320	47352-20320	Bracket, Flexible Hose, Lh
9010512082	90105-12082	Bolt(For Strut Rod)
9010512323	90105-12323	BOLT FLANGE
9011912285	90119-12285	Bolt(For Rear Suspension Arm)
9011912330	90119-12330	BOLT WWASHER
9011914025	90119-14025	Bolt (For Rear Axle Carrier)
9017810014	90178-10014	Nut(For Front Suspension Support)
9017812007	90178-12007	NUT FLANGE
9017812010	90178-12010	NUT FLANGE
9017814005	90178-14005	NUT FLANGE
9017912078	90179-12078	New Genuine Part
9017912127	90179-12127	Nut
9017912127	90178-A0071	New Genuine Part
9017914045	90179-14045	Nut(For Front Shock Absorber Bracket Lower)
9151160810	91511-60810	BOLT
9161160822	91611-60822	Bolt

OEM	Part name	Category
42304-63010	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
42305-63010	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
47351-20440	Bracket, Flexible Hose, Rh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
47352-20320	Bracket, Flexible Hose, Lh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48060-32040	Bracket Assy, Rear Suspension Arm, Rh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48070-32040	Bracket Assy, Rear Suspension Arm, Lh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48190-32010	Cam Assy, Camber Adjust	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48198-32040	Cam, Rear Suspension Camber Adjust, No.2 Rh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48231-1H660	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48257-12030	Insulator, Rear Coil Spring, Upper Rh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48341-32100	Bumper, Rear Spring, No.1	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48401-32010	Bracket Sub-Assy, Rear Spring, Front Rh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48409-32040	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48452-32040	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48530-80041	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48530-80056	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48530-80098	Absorber Assy, Shock, Rear	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48530-80272	Absorber Assy, Shock, Rear	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48530-80280	Absorber Assy, Shock, Rear	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48710-32093	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48720-32093	Arm Assy, Rear Suspension, No.1 Lh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48725-32250	Bush, Lower Control Arm	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48750-32170	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48752-32011	Stopper, Rear Suspension Support	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48755-20010	Cushion, Rear Shock Absorber, No.1	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48770-20010	Arm Assy, Upper Control	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48770-20020	Arm Assy, Upper Control	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48812-12320	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48812-12340	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48818-12260	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48818-20350	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48830-32050	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
48832-32120	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90105-12082	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90105-12323	BOLT FLANGE	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90119-08C04	BOLT WWASHER	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90119-12285	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90119-12330	BOLT WWASHER	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90119-14025	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90178-10014	Nut(For Front Suspension Support)	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90178-12007	NUT FLANGE	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90178-12010	NUT FLANGE	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90178-14005	NUT FLANGE	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90178-A0071	New Genuine Part	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90179-12078	New Genuine Part	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90179-12127	Nut	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90179-14045	Nut(For Front Shock Absorber Bracket Lower)	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
90948-03021	Washer, Rear Shock Absorber Cushion, No.1	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
91511-60810	BOLT	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)
91611-60822	Bolt	Rear Spring & Shock Absorber ([04.2001 - ] (0104- )NZE124,ZZE124)

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 234
Collected: 2026-08-02
