NZE121

Toyota COROLLA-RUNX-ALLEX · 2001 · 4,990 parts · 224 categories

4,990 items

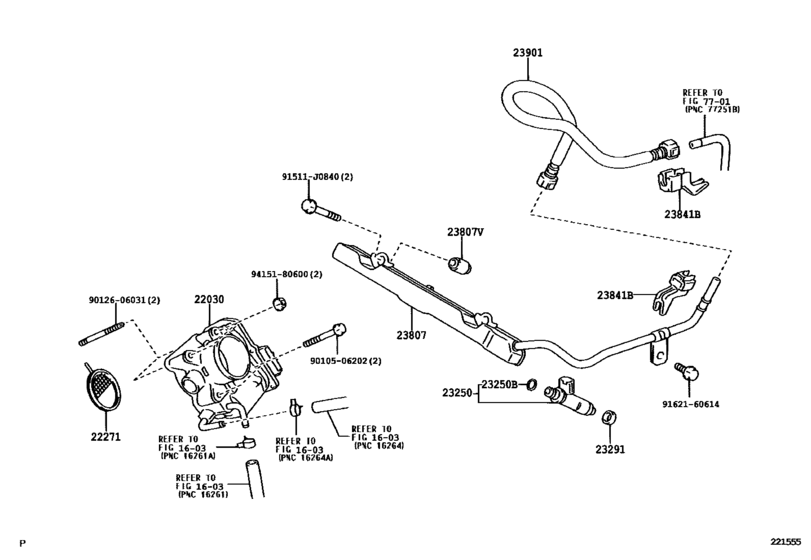

Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121) 23

#	OEM	Part name
22030	22030-21030	Body Assy, Throttle W/motor
22271	22271-21020	Gasket, Throttle Body
22271	22271-21060	Gasket, Throttle Body
23250	23209-21020	Injector Assy, Fuel
23250	23209-21040	Injector Assy, Fuel
23250	23209-21120	Injector Assy, Fuel
23250	90301-07024	Ring, O(For Fuel Injector)
23250	90301-07037	Ring, O(For Fuel Injector)
23291	23291-41010	Insulator, Injector Vibration
23807	23807-21010	Pipe Sub-Assy, Fuel Delivery
23807	23807-21021	Pipe Sub-Assy, Fuel Delivery
23807	23807-21030	Pipe Sub-Assy, Fuel Delivery
23807	23807-21031	Pipe Sub-Assy, Fuel Delivery
23807	23891-21010	Spacer, No.1(For Delivery Pipe)
23841	23841-28010	Clamp, Fuel Pipe, No.1(For Efi)
23841	23841-21050	Clamp, Fuel Pipe, No.1(For Efi)
23901	23901-21030	Tube Sub-Assy, Fuel
23901	23901-21090	Tube Sub-Assy, Fuel
91511	91511-J0840	Bolt(For Alternator)
9010506202	90105-06202	Bolt(For Cylinder Head Cover)
9012606031	90126-06031	Stud, Bolt
9162160614	91621-60614	Bolt(For Transaxle & Engine Setting)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
22030-21030	Body Assy, Throttle W/motor	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
22271-21020	Gasket, Throttle Body	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
22271-21060	Gasket, Throttle Body	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23209-21020	Injector Assy, Fuel	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23209-21040	Injector Assy, Fuel	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23209-21120	Injector Assy, Fuel	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23291-41010	Insulator, Injector Vibration	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23807-21010	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23807-21021	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23807-21030	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23807-21031	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23841-21050	Clamp, Fuel Pipe, No.1(For Efi)	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23841-28010	Clamp, Fuel Pipe, No.1(For Efi)	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23891-21010	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23901-21030	Tube Sub-Assy, Fuel	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
23901-21090	Tube Sub-Assy, Fuel	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
90105-06202	Bolt(For Cylinder Head Cover)	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
90126-06031	Stud, Bolt	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
90301-07024	Ring, O(For Fuel Injector)	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
90301-07037	Ring, O(For Fuel Injector)	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
91511-J0840	Bolt(For Alternator)	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
91621-60614	Bolt(For Transaxle & Engine Setting)	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Fuel Injection System ([04.2004 - ] (0404- )1NZFE..NZE121)
