Search › Model › NUK15

NUK15

Toyota ETIOS-LIVA-CROSS · 2011 · 2,908 parts · 173 categories

2,908 items

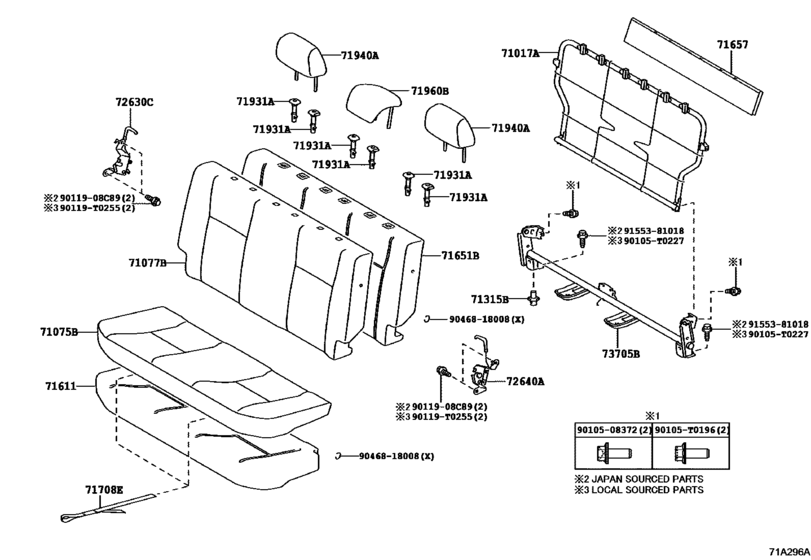

Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15) 50

#	OEM	Part name
71017	71017-0D740	Frame Sub-Assy, Rear Seat Back
71075	71075-0D650-B1	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-0DT70-B0	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-0DD60-E1	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-0DD60-E3	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-0DD61-E4	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-0DE90-B0	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-0DE90-B1	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-0DK20-B0	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-0DT80-E0	Cover, Rear Seat Cushion (For Bench Type)
71077	71077-0D420-B1	Cover, Rear Seat Back (For Bench Type)
71077	71077-0DY20-B0	Cover, Rear Seat Back (For Bench Type)
71077	71077-0DK20-E0	Cover, Rear Seat Back (For Bench Type)
71077	71077-0DK21-E1	Cover, Rear Seat Back (For Bench Type)
71077	71077-0DK50-E0	Cover, Rear Seat Back (For Bench Type)
71077	71077-0DL80-B1	Cover, Rear Seat Back (For Bench Type)
71077	71077-0DY30-E0	Cover, Rear Seat Back (For Bench Type)
71315	71315-0D010	Pin, Rear Seat Hinge
71611	71503-0D130	Pad, Rear Seat Cushion
71611	71503-0D600	Pad, Rear Seat Cushion
71611	71503-0D140	Pad, Rear Seat Cushion
71651	71507-0D030	Pad, Rear Seat Back(For Bench Type)
71651	71651-0DA30	Pad, Rear Seat Back(For Bench Type)
71651	71507-0D130	Pad, Rear Seat Back(For Bench Type)
71651	71507-0D160	Pad, Rear Seat Back(For Bench Type)
71657	71657-0D010	Cloth, Rear Seat Back Under
71708	71737-0D010-B0	Strap Sub-Assy, Rear Seat Cover
71708	71737-0D010-C0	Strap Sub-Assy, Rear Seat Cover
71708	71737-0D010-E0	Strap Sub-Assy, Rear Seat Cover
71708	71737-0D010-E1	Strap Sub-Assy, Rear Seat Cover
71931	71956-47010-C0	Support, Rear Seat Headrest
71931	71970-47010-C0	Support, Rear Seat Headrest
71931	71956-47010-E2	Support, Rear Seat Headrest
71931	71970-47010-E2	Support, Rear Seat Headrest
71940	71940-0DL10-B0	Headrest Assy, Rear Seat
71940	71940-0DL20-E0	Headrest Assy, Rear Seat
71960	71960-0DB40-B0	Headrest Assy, Rear Seat, Center
71960	71960-0DB50-E0	Headrest Assy, Rear Seat, Center
72630	72630-0D190-C0	Lock Assy, Rear Seat Back, Rh
72640	72640-0D190-C0	Lock Assy, Rear Seat Back, Lh
73705	73705-0D100	Bracket Sub-Assy, Cross Anchor
73705	73705-0D580	Bracket Sub-Assy, Cross Anchor
90105	90105-T0196	New Genuine Part
90105	90105-T0227	New Genuine Part
90119	90119-T0255	New Genuine Part
9011908	90119-08C89	BOLT WWASHER
9010508372	90105-08372	BOLT WASHER BASED
9046818008	90468-18008	Clip (For Rear Seat Back)
9046818008	90468-16019	Clip (For Rear Seat Back)
9155381018	91553-81018	New Genuine Part

OEM	Part name	Category
71017-0D740	Frame Sub-Assy, Rear Seat Back	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71075-0D650-B1	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71075-0DD60-E1	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71075-0DD60-E3	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71075-0DD61-E4	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71075-0DE90-B0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71075-0DE90-B1	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71075-0DK20-B0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71075-0DT70-B0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71075-0DT80-E0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71077-0D420-B1	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71077-0DK20-E0	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71077-0DK21-E1	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71077-0DK50-E0	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71077-0DL80-B1	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71077-0DY20-B0	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71077-0DY30-E0	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71315-0D010	Pin, Rear Seat Hinge	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71503-0D130	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71503-0D140	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71503-0D600	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71507-0D030	Pad, Rear Seat Back(For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71507-0D130	Pad, Rear Seat Back(For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71507-0D160	Pad, Rear Seat Back(For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71651-0DA30	Pad, Rear Seat Back(For Bench Type)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71657-0D010	Cloth, Rear Seat Back Under	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71737-0D010-B0	Strap Sub-Assy, Rear Seat Cover	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71737-0D010-C0	Strap Sub-Assy, Rear Seat Cover	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71737-0D010-E0	Strap Sub-Assy, Rear Seat Cover	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71737-0D010-E1	Strap Sub-Assy, Rear Seat Cover	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71940-0DL10-B0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71940-0DL20-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71956-47010-C0	Support, Rear Seat Headrest	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71956-47010-E2	Support, Rear Seat Headrest	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71960-0DB40-B0	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71960-0DB50-E0	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71970-47010-C0	Support, Rear Seat Headrest	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
71970-47010-E2	Support, Rear Seat Headrest	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
72630-0D190-C0	Lock Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
72640-0D190-C0	Lock Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
73705-0D100	Bracket Sub-Assy, Cross Anchor	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
73705-0D580	Bracket Sub-Assy, Cross Anchor	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
90105-08372	BOLT WASHER BASED	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
90105-T0196	New Genuine Part	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
90105-T0227	New Genuine Part	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
90119-08C89	BOLT WWASHER	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
90119-T0255	New Genuine Part	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
90468-16019	Clip (For Rear Seat Back)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
90468-18008	Clip (For Rear Seat Back)	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
91553-81018	New Genuine Part	Rear Seat & Seat Track ([09.2016 - ] (1609- )NGK15,NUK15)
