Search › Model › NUK15

NUK15

Toyota ETIOS-LIVA-CROSS · 2011 · 2,908 parts · 173 categories

2,908 items

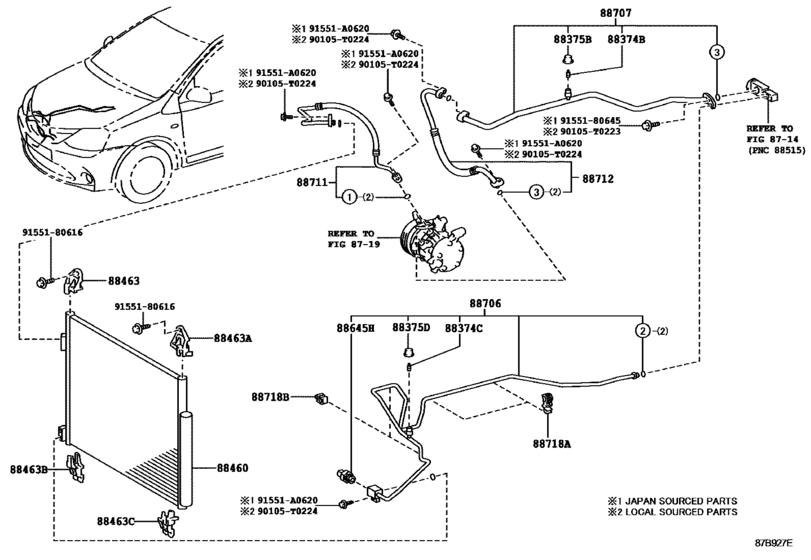

Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#) 22

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88375	88375-30290	Cap, Service Valve (For Cooler Pipe)
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88460	88460-0D170	Condenser Assy, Cooler
88463	88688-0D270	Bracket, Cooler Condenser, No.1
88463	88688-0D280	Bracket, Cooler Condenser, No.2
88463	88688-0D290	Bracket, Cooler Condenser, No.3
88463	88688-0D300	Bracket, Cooler Condenser, No.4
88645	88645-34010	Switch, Pressure
88645	88645-04040	Switch, Pressure
88706	88706-0D370	Pipe Sub-Assy, Liquid
88706	88706-0D371	Pipe Sub-Assy, Liquid
88707	88707-0D220	Pipe Sub-Assy, Suction
88711	88711-0D290	Hose, Cooler Refrigerant Discharge, No.1
88712	88712-0D380	Hose, Cooler Refrigerant Suction, No.1
88718	88718-0D400	Clamp(For Cooler Refrigerant Pipe), No.1
88718	88718-0D410	Clamp(For Cooler Refrigerant Pipe), No.2
90105	90105-T0223	New Genuine Part
90105	90105-T0224	New Genuine Part
91551	91551-A0620	New Genuine Part
9155180616	91551-80616	BOLT FLANGE
9155180645	91551-80645	BOLT FLANGE

OEM	Part name	Category
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88375-30290	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88460-0D170	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88645-04040	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88645-34010	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88688-0D270	Bracket, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88688-0D280	Bracket, Cooler Condenser, No.2	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88688-0D290	Bracket, Cooler Condenser, No.3	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88688-0D300	Bracket, Cooler Condenser, No.4	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88706-0D370	Pipe Sub-Assy, Liquid	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88706-0D371	Pipe Sub-Assy, Liquid	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88707-0D220	Pipe Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88711-0D290	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88712-0D380	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88718-0D400	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
88718-0D410	Clamp(For Cooler Refrigerant Pipe), No.2	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
90105-T0223	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
90105-T0224	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
91551-80616	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
91551-80645	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
91551-A0620	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([08.2011 - ] (1108- )NUK1#)
