Search › Model › NUK15

NUK15

Toyota ETIOS-LIVA-CROSS · 2011 · 2,908 parts · 173 categories

2,908 items

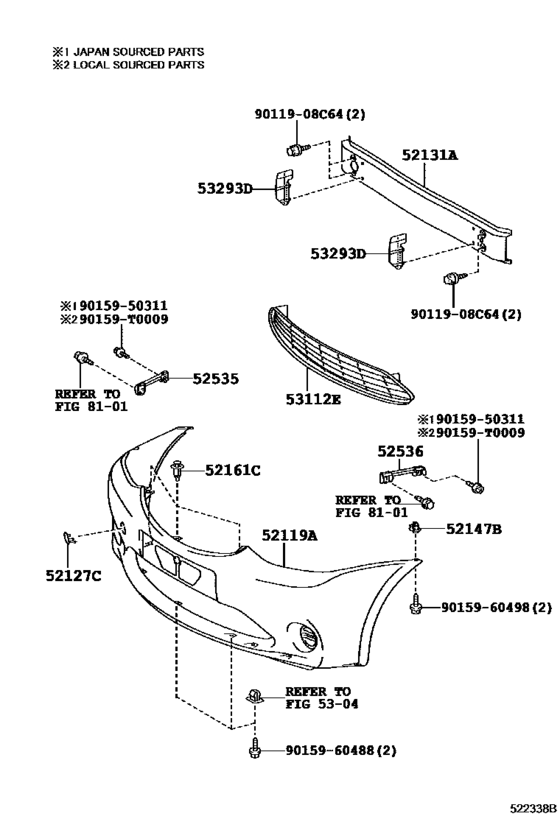

Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V) 21

#	OEM	Part name
52119	52119-0U902	Cover, Front Bumper
52119	52119-YP900	Cover, Front Bumper
52127	52127-0D914	Cover, Front Bumper Hole
52131	52131-0D090	Reinforcement, Front Bumper
52131	52131-0D130	Reinforcement, Front Bumper
52147	52147-0D070	Bracket, Front Bumper Mounting
52161	52161-0K040	Clip
52161	52161-02020	Clip
52161	52161-16010	Clip
52535	52535-0D050	Retainer, Front Bumper Side, Rh
52536	52536-0D050	Retainer, Front Bumper Side, Lh
53112	53112-0D180	Grille, Radiator, Lower No.1
53112	53112-YP020	Grille, Radiator, Lower No.1
53293	53293-0D020	Deflector, Radiator Upper Air
53293	53293-YP020	Deflector, Radiator Upper Air
90159	90159-T0009	SCREWWWASHER TAP
9011908	90119-08C64	Bolt with washer
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015960488	90159-60488	SCREW WWASHER
9015960498	90159-60498	SCREW W-WASHER

OEM	Part name	Category
52119-0U902	Cover, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
52119-YP900	Cover, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
52127-0D914	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
52131-0D090	Reinforcement, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
52131-0D130	Reinforcement, Front Bumper	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
52147-0D070	Bracket, Front Bumper Mounting	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
52161-02020	Clip	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
52161-0K040	Clip	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
52161-16010	Clip	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
52535-0D050	Retainer, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
52536-0D050	Retainer, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
53112-0D180	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
53112-YP020	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
53293-0D020	Deflector, Radiator Upper Air	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
53293-YP020	Deflector, Radiator Upper Air	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
90119-08C64	Bolt with washer	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
90159-50311	SCREW	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
90159-60488	SCREW WWASHER	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
90159-60498	SCREW W-WASHER	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
90159-A0034	SCREW WWASHER	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)
90159-T0009	SCREWWWASHER TAP	Front Bumper & Bumper Stay ([12.2010 - ] (1012- )G,STD,V)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 173
Collected: 2026-08-03
