Search › Model › NUK15
NUK15

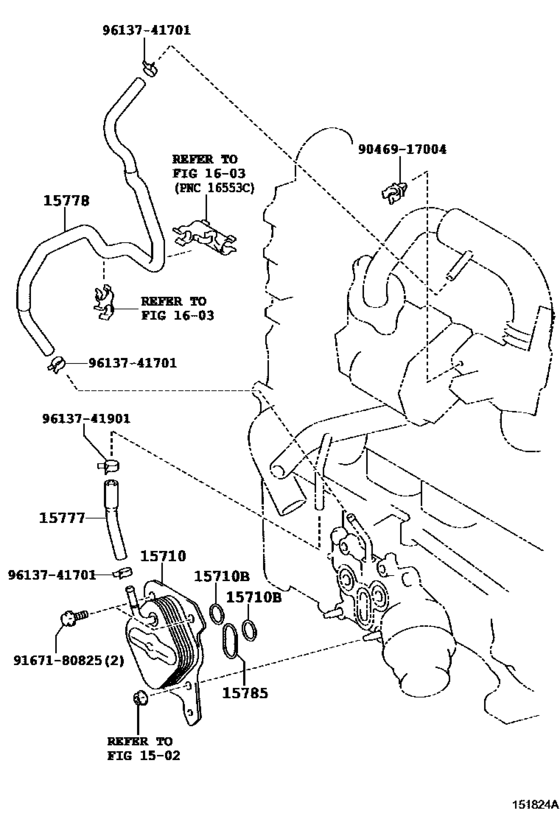

Engine Oil Cooler ([08.2011 - ] (1108- )1NDTV) 9
| # | OEM | Part name |
|---|---|---|
| 15710 | 15710-33050 | Cooler Assy, Oil |
| 15710 | 96723-35024 | Ring, O(For Oil Cooler) |
| 15777 | 15777-33010 | Hose, Oil Cooler |
| 15778 | 15778-33040 | Hose, Oil Cooler, No.2 |
| 15785 | 15785-33010 | Gasket, Oil Cooler |
| 9046917004 | 90469-17004 | New Genuine Part |
| 9167180825 | 91671-80825 | Bolt, Compressor, No.1 |
| 9613741701 | 96137-41701 | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 9613741901 | 96137-41901 | Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE) |
| OEM | Part name | Category |
|---|---|---|
| 15710-33050 | Cooler Assy, Oil | Engine Oil Cooler ([08.2011 - ] (1108- )1NDTV) |
| 15777-33010 | Hose, Oil Cooler | Engine Oil Cooler ([08.2011 - ] (1108- )1NDTV) |
| 15778-33040 | Hose, Oil Cooler, No.2 | Engine Oil Cooler ([08.2011 - ] (1108- )1NDTV) |
| 15785-33010 | Gasket, Oil Cooler | Engine Oil Cooler ([08.2011 - ] (1108- )1NDTV) |
| 90469-17004 | New Genuine Part | Engine Oil Cooler ([08.2011 - ] (1108- )1NDTV) |
| 91671-80825 | Bolt, Compressor, No.1 | Engine Oil Cooler ([08.2011 - ] (1108- )1NDTV) |
| 96137-41701 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Engine Oil Cooler ([08.2011 - ] (1108- )1NDTV) |
| 96137-41901 | Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE) | Engine Oil Cooler ([08.2011 - ] (1108- )1NDTV) |
| 96723-35024 | Ring, O(For Oil Cooler) | Engine Oil Cooler ([08.2011 - ] (1108- )1NDTV) |
