Search › Model › NUK15

NUK15

Toyota ETIOS-LIVA-CROSS · 2011 · 2,908 parts · 173 categories

2,908 items

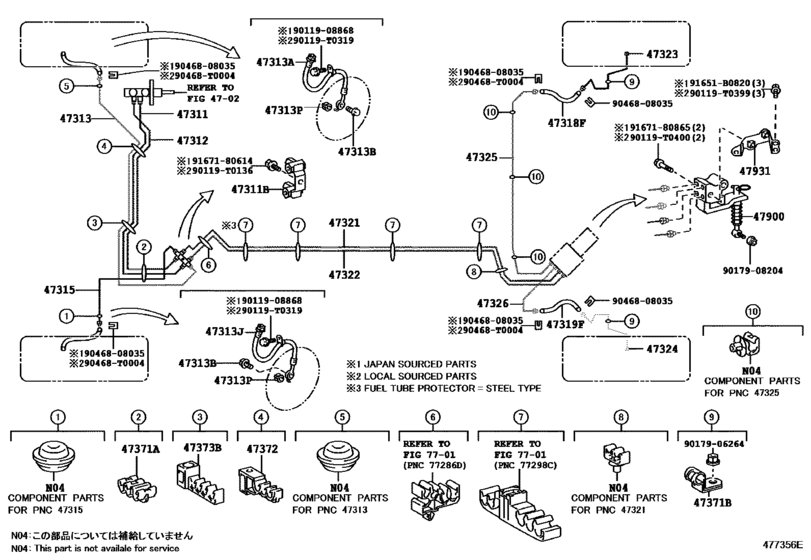

Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- )) 49

#	OEM	Part name
47311	47311-0D400	Tube, Front Brake, No.1
47311	47311-0DB10	Tube, Front Brake, No.1
47311	90412-10285	Way, No.1(For Front Brake Tube)
47311	90413-10322	Way, No.1(For Front Brake Tube)
47311	47311-0D390	Tube, Front Brake, No.1
47312	47312-0D340	Tube, Front Brake, No.2
47312	47312-0DA40	Tube, Front Brake, No.2
47312	47312-0D330	Tube, Front Brake, No.2
47313	47313-0D270	Tube, Front Brake, No.3
47313	47313-0D860	Tube, Front Brake, No.3
47313	90947-T2064	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-T2065	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47313	47313-0D260	Tube, Front Brake, No.3
47315	47315-0D310	Tube, Front Brake, No.5
47315	47315-0D840	Tube, Front Brake, No.5
47315	47315-0D300	Tube, Front Brake, No.5
47318	90947-T2066	Hose, Clutch
47321	47321-0D240	Tube, Rear Brake, No.1
47321	47321-0D250	Tube, Rear Brake, No.1
47322	47322-0D240	Tube, Rear Brake, No.2
47322	47322-0D250	Tube, Rear Brake, No.2
47323	47323-0D170	Tube, Rear Brake, No.3
47324	47324-0D170	Tube, Rear Brake, No.4
47325	47325-0D020	Tube, Rear Brake, No.5
47326	47326-0D020	Tube, Rear Brake, No.6
47371	90464-00868	Clamp, Brake Tube, No.1
47371	90461-10781	Clamp, Brake Tube, No.6
47372	90949-01D02	Clamp, Brake Tube, No.2
47373	90949-01D44	Clamp, Brake Tube, No.5
47900	47900-0D060	Valve Assy, Load Sensing W/spring
47900	47900-0D061	Valve Assy, Load Sensing W/spring
47931	47931-0D060	Bracket, Load Sensing Valve
90119	90119-T0136	New Genuine Part
90119	90119-T0319	New Genuine Part
90119	90119-T0399	New Genuine Part
90119	90119-T0400	New Genuine Part
90468	90468-T0004	CLIP
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9017906264	90179-06264	NUT, WWASHER
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167180865	91671-80865	New Genuine Part

OEM	Part name	Category
47311-0D390	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47311-0D400	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47311-0DB10	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47312-0D330	Tube, Front Brake, No.2	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47312-0D340	Tube, Front Brake, No.2	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47312-0DA40	Tube, Front Brake, No.2	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47313-0D260	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47313-0D270	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47313-0D860	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47315-0D300	Tube, Front Brake, No.5	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47315-0D310	Tube, Front Brake, No.5	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47315-0D840	Tube, Front Brake, No.5	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47321-0D240	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47321-0D250	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47322-0D240	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47322-0D250	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47323-0D170	Tube, Rear Brake, No.3	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47324-0D170	Tube, Rear Brake, No.4	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47325-0D020	Tube, Rear Brake, No.5	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47326-0D020	Tube, Rear Brake, No.6	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47900-0D060	Valve Assy, Load Sensing W/spring	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47900-0D061	Valve Assy, Load Sensing W/spring	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
47931-0D060	Bracket, Load Sensing Valve	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90080-11347	New Genuine Part	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90080-18070	NUT, WWASHER	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90119-T0136	New Genuine Part	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90119-T0319	New Genuine Part	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90119-T0399	New Genuine Part	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90119-T0400	New Genuine Part	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90179-06264	NUT, WWASHER	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90179-08204	Nut	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90412-10285	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90413-10322	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90461-10781	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90464-00868	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90468-08035	CLIP	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90468-A0007	New Genuine Part	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90468-T0004	CLIP	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90947-T2064	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90947-T2065	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90947-T2066	Hose, Clutch	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90949-01D02	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
90949-01D44	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
91651-B0820	Bolt, Radiator Side Support Plate	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
91671-80614	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
91671-80865	New Genuine Part	Brake Tube & Clamp ([12.2010 - ] W/O(ABS) (1012- ))
