Search › Model › NUK10

NUK10

Toyota ETIOS-LIVA-CROSS · 2011 · 2,510 parts · 167 categories

2,510 items

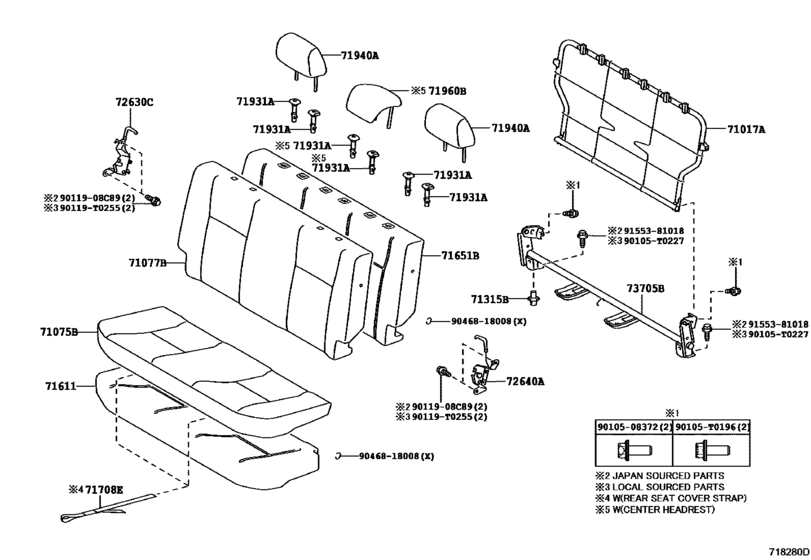

Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A) 29

#	OEM	Part name
71017	71017-0D510	Frame Sub-Assy, Rear Seat Back
71017	71017-0D730	Frame Sub-Assy, Rear Seat Back
71075	71075-0DK00-C0	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-0DU50-C0	Cover, Rear Seat Cushion (For Bench Type)
71077	71077-0DN40-C0	Cover, Rear Seat Back (For Bench Type)
71077	71077-0DY90-C0	Cover, Rear Seat Back (For Bench Type)
71315	71315-0D010	Pin, Rear Seat Hinge
71611	71503-0D160	Pad, Rear Seat Cushion
71611	71503-0D610	Pad, Rear Seat Cushion
71651	71651-0D530	Pad, Rear Seat Back(For Bench Type)
71651	71651-0DA10	Pad, Rear Seat Back(For Bench Type)
71708	71737-0D010-C0	Strap Sub-Assy, Rear Seat Cover
71931	71956-47010-C0	Support, Rear Seat Headrest
71931	71970-47010-C0	Support, Rear Seat Headrest
71940	71940-0DD90-C0	Headrest Assy, Rear Seat
71940	71940-0DL70-C0	Headrest Assy, Rear Seat
71960	71960-0DB70-C0	Headrest Assy, Rear Seat, Center
72630	72630-0D031-C0	Lock Assy, Rear Seat Back, Rh
72640	72640-0D031-C0	Lock Assy, Rear Seat Back, Lh
73705	73705-0D111	Bracket Sub-Assy, Cross Anchor
73705	73705-0D570	Bracket Sub-Assy, Cross Anchor
90105	90105-T0196	New Genuine Part
90105	90105-T0227	New Genuine Part
90119	90119-T0255	New Genuine Part
9011908	90119-08C89	BOLT WWASHER
9010508372	90105-08372	BOLT WASHER BASED
9046818008	90468-18008	Clip (For Rear Seat Back)
9046818008	90468-16019	Clip (For Rear Seat Back)
9155381018	91553-81018	New Genuine Part

OEM	Part name	Category
71017-0D510	Frame Sub-Assy, Rear Seat Back	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71017-0D730	Frame Sub-Assy, Rear Seat Back	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71075-0DK00-C0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71075-0DU50-C0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71077-0DN40-C0	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71077-0DY90-C0	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71315-0D010	Pin, Rear Seat Hinge	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71503-0D160	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71503-0D610	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71651-0D530	Pad, Rear Seat Back(For Bench Type)	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71651-0DA10	Pad, Rear Seat Back(For Bench Type)	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71737-0D010-C0	Strap Sub-Assy, Rear Seat Cover	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71940-0DD90-C0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71940-0DL70-C0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71956-47010-C0	Support, Rear Seat Headrest	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71960-0DB70-C0	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
71970-47010-C0	Support, Rear Seat Headrest	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
72630-0D031-C0	Lock Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
72640-0D031-C0	Lock Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
73705-0D111	Bracket Sub-Assy, Cross Anchor	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
73705-0D570	Bracket Sub-Assy, Cross Anchor	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
90105-08372	BOLT WASHER BASED	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
90105-T0196	New Genuine Part	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
90105-T0227	New Genuine Part	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
90119-08C89	BOLT WWASHER	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
90119-T0255	New Genuine Part	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
90468-16019	Clip (For Rear Seat Back)	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
90468-18008	Clip (For Rear Seat Back)	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
91553-81018	New Genuine Part	Rear Seat & Seat Track ([03.2013 - 09.2016] (1303-1609)NGK10,12,NUK10..G,SUVG,SUVV,V..IND,SA ; (1609- )NGK10,12,NUK10..IND,S A)
