Search › Model › NUK10
NUK10

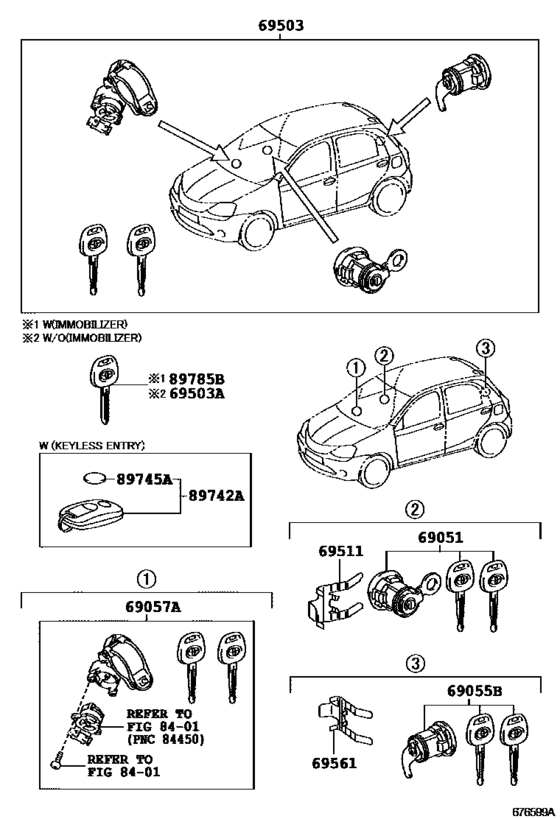

Lock Cylinder Set ([12.2010 - ] (1012- )5D) 9
| # | OEM | Part name |
|---|---|---|
| 69051 | 69051-0D150 | Cylinder & Key Set, Door Lock, Rh |
| 69055 | 69055-0D150 | Cylinder & Key Set, Back Door Lock |
| 69057 | 69057-0D290 | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | 69005-0D170 | Cylinder Set, Lock |
| 69511 | 69511-0D020 | Retainer, Front Door Lock Cylinder |
| 69511 | 69511-16030 | Retainer, Front Door Lock Cylinder |
| 89742 | 89742-0D020 | Transmitter, Door Control |
| 89745 | 89745-0D010 | Battery, Transmitter |
| 89785 | 89785-0D120 | Transmitter, Transponder Key Master |
| OEM | Part name | Category |
|---|---|---|
| 69005-0D170 | Cylinder Set, Lock | Lock Cylinder Set ([12.2010 - ] (1012- )5D) |
| 69051-0D150 | Cylinder & Key Set, Door Lock, Rh | Lock Cylinder Set ([12.2010 - ] (1012- )5D) |
| 69055-0D150 | Cylinder & Key Set, Back Door Lock | Lock Cylinder Set ([12.2010 - ] (1012- )5D) |
| 69057-0D290 | Cylinder & Key Set, Ignition Switch Lock | Lock Cylinder Set ([12.2010 - ] (1012- )5D) |
| 69511-0D020 | Retainer, Front Door Lock Cylinder | Lock Cylinder Set ([12.2010 - ] (1012- )5D) |
| 69511-16030 | Retainer, Front Door Lock Cylinder | Lock Cylinder Set ([12.2010 - ] (1012- )5D) |
| 89742-0D020 | Transmitter, Door Control | Lock Cylinder Set ([12.2010 - ] (1012- )5D) |
| 89745-0D010 | Battery, Transmitter | Lock Cylinder Set ([12.2010 - ] (1012- )5D) |
| 89785-0D120 | Transmitter, Transponder Key Master | Lock Cylinder Set ([12.2010 - ] (1012- )5D) |
