NUK10

Toyota ETIOS-LIVA-CROSS · 2011 · 2,510 parts · 167 categories

2,510 items

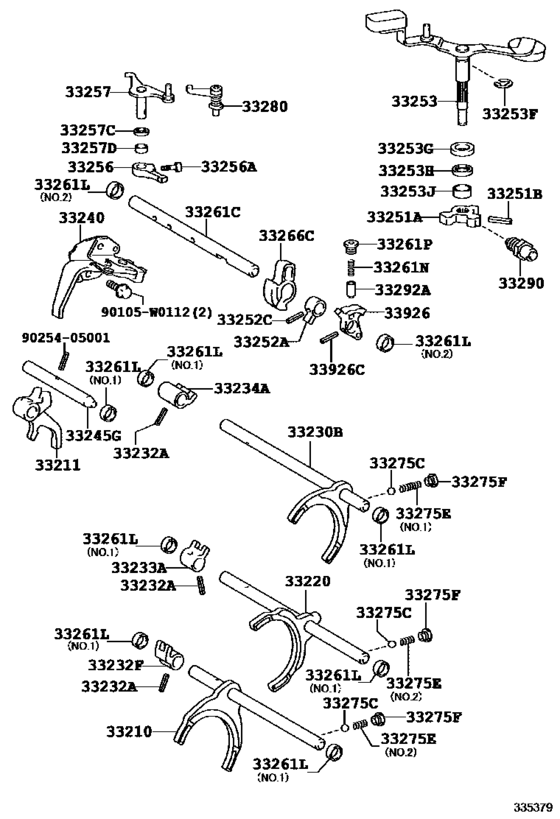

Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#) 66

#	OEM	Part name
33210	33210-20020	Fork Assy, Gear Shift, No.1
33211	33211-05020	Fork, Reverse Shift
33220	33220-20020	Fork Assy, Gear Shift, No.2
33230	33230-20030	Fork Assy, Gear Shift, No.3
33232	90254-05001	Pin, Slotted Spring(For Shift Lever Shaft Set)
33232	33232-0D040	Head, Gear Shift, No.1
33232	33232-20070	Head, Gear Shift, No.1
33233	33233-0D010	Head, Gear Shift, No.2
33233	33233-20040	Head, Gear Shift, No.2
33234	33234-0D020	Head, Gear Shift, No.3
33234	33234-20020	Head, Gear Shift, No.3
33240	33240-0D021	Bracket Assy, Reverse Shift Arm
33240	33240-20041	Bracket Assy, Reverse Shift Arm
33240	33240-20042	Bracket Assy, Reverse Shift Arm
33245	33245-0D010	Shaft, Gear Shift Fork, No.4
33251	33251-0D060	Lever, Shift, Inner No.1
33251	33251-12120	Lever, Shift, Inner No.1
33251	33251-20120	Lever, Shift, Inner No.1
33251	90254-05011	Pin, Slotted Spring (For Shift Inner Lever)
33252	33252-0D040	Lever, Shift, Inner No.2
33252	33252-20060	Lever, Shift, Inner No.2
33253	33253-52060	Lever, Shift Outer, No.1
33253	33253-52070	Lever, Shift Outer, No.1
33253	90523-15003	Ring, E(For Shift Outer Lever)
33253	90523-T0005	Ring, E(For Shift Outer Lever)
33253	90560-18017	Spacer(For Shift Outer Lever)
33253	90560-T0032	Spacer(For Shift Outer Lever)
33253	90310-18003	Seal, Oil(For Shift Outer Lever)
33253	90310-T0013	Seal, Oil(For Shift Outer Lever)
33253	90384-18018	Bush(For Shift Outer Lever)
33253	90384-T0014	Bush(For Shift Outer Lever)
33256	33256-0D060	Lever, Select Inner
33256	33256-20030	Lever, Select Inner
33256	90110-08041	Bolt, Set (For Select Inner Lever)
33257	33257-52021	Lever, Select Outer
33257	90310-15005	Seal, Oil(For Outer Select Lever)
33257	90310-T0014	Seal, Oil(For Outer Select Lever)
33257	90384-15002	Bush, Bimetal Formed(For Outer Select Lever)
33257	90384-T0013	Bush, Bimetal Formed(For Outer Select Lever)
33261	33261-0D090	Shaft, Shift & Select Lever
33261	33261-20120	Shaft, Shift & Select Lever
33261	90384-14008	Bush, Bimetal Formed (For Shift & Select Lever Shaft)
33261	90384-16005	Bush, Bimetal Formed (For Shift & Select Lever Shaft)
33261	90384-T0022	Bush, Bimetal Formed (For Shift & Select Lever Shaft)
33261	90384-T0023	Bush, Bimetal Formed (For Shift & Select Lever Shaft)
33261	90501-11108	Spring, Compression(For Shift & Select Lever Shaft)
33261	90501-T0054	Spring, Compression(For Shift & Select Lever Shaft)
33261	90341-16013	Plug, W/head Straight Screw, No.1(For Cylinder Block)
33266	33266-20061	Plate, Shift Inter Lock
33266	33266-20062	Plate, Shift Inter Lock
33275	90360-10003	Ball(For Transmission Oil Pump Cover)
33275	90501-11110	Spring, Compression (For Shift Detent Ball)
33275	90501-13088	Spring, Compression (For Shift Detent Ball)
33275	90501-13089	Spring, Compression (For Shift Detent Ball)
33275	90501-T0053	Spring, Compression (For Shift Detent Ball)
33275	90501-T0055	Spring, Compression (For Shift Detent Ball)
33275	90341-12004	Plug, Oil Pan(For Oil Cooler)
33280	33280-20050	Pin Assy, Reverse Restrict
33290	33290-0D030	Ball Assy, Lock, No.1
33290	33290-12020	Ball Assy, Lock, No.1
33290	33290-52040	Ball Assy, Lock, No.1
33292	33292-05020	Pin, Lock Ball
33292	33292-20010	Pin, Lock Ball - LOCK BALL NO.2
33926	33926-0D020	Lever, Shift Inner, Front
33926	33926-20011	Lever, Shift Inner, Front
90105	90105-W0112	BOLT FLANGE

OEM	Part name	Category
33210-20020	Fork Assy, Gear Shift, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33211-05020	Fork, Reverse Shift	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33220-20020	Fork Assy, Gear Shift, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33230-20030	Fork Assy, Gear Shift, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33232-0D040	Head, Gear Shift, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33232-20070	Head, Gear Shift, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33233-0D010	Head, Gear Shift, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33233-20040	Head, Gear Shift, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33234-0D020	Head, Gear Shift, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33234-20020	Head, Gear Shift, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33240-0D021	Bracket Assy, Reverse Shift Arm	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33240-20041	Bracket Assy, Reverse Shift Arm	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33240-20042	Bracket Assy, Reverse Shift Arm	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33245-0D010	Shaft, Gear Shift Fork, No.4	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33251-0D060	Lever, Shift, Inner No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33251-12120	Lever, Shift, Inner No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33251-20120	Lever, Shift, Inner No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33252-0D040	Lever, Shift, Inner No.2	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33252-20060	Lever, Shift, Inner No.2	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33253-52060	Lever, Shift Outer, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33253-52070	Lever, Shift Outer, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33256-0D060	Lever, Select Inner	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33256-20030	Lever, Select Inner	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33257-52021	Lever, Select Outer	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33261-0D090	Shaft, Shift & Select Lever	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33261-20120	Shaft, Shift & Select Lever	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33266-20061	Plate, Shift Inter Lock	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33266-20062	Plate, Shift Inter Lock	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33280-20050	Pin Assy, Reverse Restrict	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33290-0D030	Ball Assy, Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33290-12020	Ball Assy, Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33290-52040	Ball Assy, Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33292-05020	Pin, Lock Ball	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33292-20010	Pin, Lock Ball - LOCK BALL NO.2	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33926-0D020	Lever, Shift Inner, Front	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
33926-20011	Lever, Shift Inner, Front	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90105-W0112	BOLT FLANGE	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90110-08041	Bolt, Set (For Select Inner Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90254-05001	Pin, Slotted Spring(For Shift Lever Shaft Set)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90254-05011	Pin, Slotted Spring (For Shift Inner Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90310-15005	Seal, Oil(For Outer Select Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90310-18003	Seal, Oil(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90310-T0013	Seal, Oil(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90310-T0014	Seal, Oil(For Outer Select Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90341-12004	Plug, Oil Pan(For Oil Cooler)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90341-16013	Plug, W/head Straight Screw, No.1(For Cylinder Block)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90360-10003	Ball(For Transmission Oil Pump Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90384-14008	Bush, Bimetal Formed (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90384-15002	Bush, Bimetal Formed(For Outer Select Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90384-16005	Bush, Bimetal Formed (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90384-18018	Bush(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90384-T0013	Bush, Bimetal Formed(For Outer Select Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90384-T0014	Bush(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90384-T0022	Bush, Bimetal Formed (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90384-T0023	Bush, Bimetal Formed (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90501-11108	Spring, Compression(For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90501-11110	Spring, Compression (For Shift Detent Ball)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90501-13088	Spring, Compression (For Shift Detent Ball)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90501-13089	Spring, Compression (For Shift Detent Ball)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90501-T0053	Spring, Compression (For Shift Detent Ball)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90501-T0054	Spring, Compression(For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90501-T0055	Spring, Compression (For Shift Detent Ball)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90523-15003	Ring, E(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90523-T0005	Ring, E(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90560-18017	Spacer(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
90560-T0032	Spacer(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([02.2016 - ] EC55 *434 (1602- )NUK1#)
