Search › Model › NUK10
NUK10

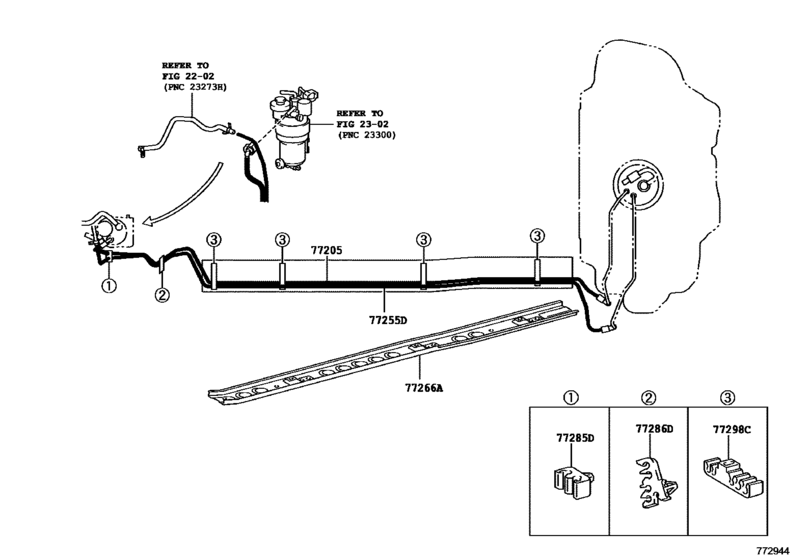

Fuel Tank & Tube ([08.2011 - ] FUEL TUBE (1108- )NUK1#) 6
| # | OEM | Part name |
|---|---|---|
| 77205 | 77205-0D010 | Tube Sub-Assy, Fuel Main |
| 77255 | 77255-0D050 | Tube, Fuel Return |
| 77266 | 77266-0D080 | Protector, Fuel Tube, No.1 |
| 77285 | 77285-0D030 | Clamp, Fuel Tube, No.1 |
| 77286 | 77286-0D050 | Clamp, Fuel Tube, No.2 |
| 77298 | 77298-0D070 | Clamp, Fuel Tube, No.4 |
| OEM | Part name | Category |
|---|---|---|
| 77205-0D010 | Tube Sub-Assy, Fuel Main | Fuel Tank & Tube ([08.2011 - ] FUEL TUBE (1108- )NUK1#) |
| 77255-0D050 | Tube, Fuel Return | Fuel Tank & Tube ([08.2011 - ] FUEL TUBE (1108- )NUK1#) |
| 77266-0D080 | Protector, Fuel Tube, No.1 | Fuel Tank & Tube ([08.2011 - ] FUEL TUBE (1108- )NUK1#) |
| 77285-0D030 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([08.2011 - ] FUEL TUBE (1108- )NUK1#) |
| 77286-0D050 | Clamp, Fuel Tube, No.2 | Fuel Tank & Tube ([08.2011 - ] FUEL TUBE (1108- )NUK1#) |
| 77298-0D070 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([08.2011 - ] FUEL TUBE (1108- )NUK1#) |
