NUK10

Toyota ETIOS-LIVA-CROSS · 2011 · 2,510 parts · 167 categories

2,510 items

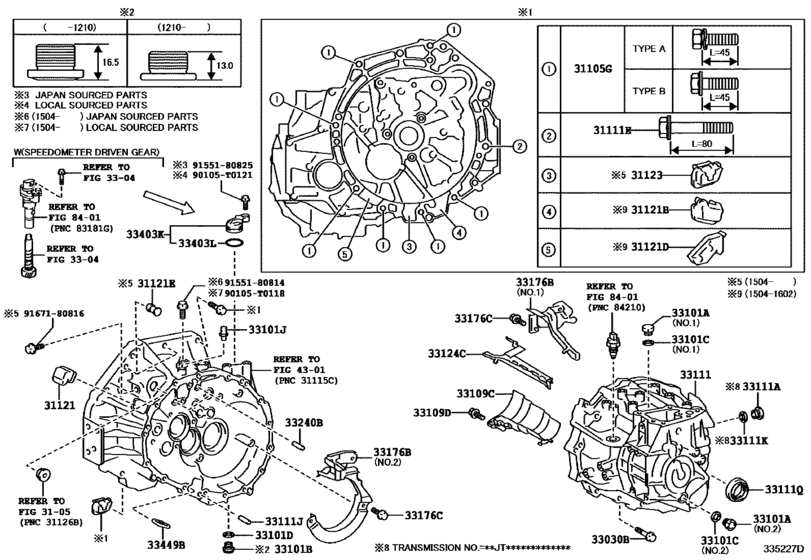

Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#) 47

#	OEM	Part name
31105	90105-T0079	Bolt, No.2(For Alternator)
31105	90119-T0225	Bolt(For Transaxle & Engine Setting)
31105	91552-81045	Bolt, No.1(For Alternator)
31105	91612-61045	Bolt(For Transaxle & Engine Setting)
31111	90105-T0211	Bolt(For Alternator)
31111	91552-81080	Bolt(For Alternator)
31121	31121-0D070	Cover, Clutch Housing, No.1
31121	31121-52020	Cover, Clutch Housing, No.1
31121	31121-52080	Cover, Clutch Housing, No.1
31121	31121-52060	Cover, Clutch Housing, No.3
31121	31121-52070	Cover, Clutch Housing, No.4
31121	31121-52040	Cover, Clutch Housing, No.5
31123	31121-52050	Cover, Clutch Housing, No.2
33030	91551-10840	Bolt(For Transaxle Case & Transmission Case Setting)
33101	90341-14032	Plug, W/head Taper Screw, No.1
33101	90341-18033	Plug(For Manual Transmission Filler)
33101	90341-18023	Plug, W/head Straight Screw, No.1
33101	12157-10010	Gasket (For Drain Plug)
33101	90430-14003	Gasket(For Manual Transmission Filler Plug)
33101	90430-T0011	Gasket(For Manual Transmission Filler Plug)
33101	90430-T0026	Gasket(For Manual Transmission Filler Plug)
33101	90930-03133	Plug, Breather
33109	33109-20020	Separator Sub-Assy, Manual Transmission Oil
33109	33109-52010	Separator Sub-Assy, Manual Transmission Oil
33109	90105-W0035	Bolt(For Manual Transmission Oil Separator)
33109	91551-80816	Bolt(For Manual Transmission Oil Separator)
33111	33111-0D100	Case, Manual Transmission
33111	33111-12291	Case, Manual Transmission
33111	33111-20221	Case, Manual Transmission
33111	90341-18006	Plug (No magnet)
33111	90250-08054	Pin, Straight
33111	90311-35066	Oil Seal, Front Drive Shaft, Lh
33111	90311-35075	Oil Seal, Front Drive Shaft, Lh
33111	90311-T0085	Seal, Oil(For Transmission Case)
33124	33124-0D040	Pipe, Oil Receiver, No.1(Mtm)
33124	33124-20080	Pipe, Oil Receiver, No.1(Mtm)
33176	33176-20080	Separator, Transmission Oil(Mtm)
33176	33176-20090	Separator, Transmission Oil(Mtm)
33403	33403-0D020	Cover Sub-Assy, Speedometer Driven Hole
33403	33403-35230	Cover Sub-Assy, Speedometer Driven Hole
33403	96711-24030	Ring,o (For Speedometer Driven Hole Cover)
33449	33449-20010	Magnet, Transmission
90105	90105-T0118	BOLT FLANGE
90105	90105-T0121	New Genuine Part
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
31121-0D070	Cover, Clutch Housing, No.1	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
31121-52020	Cover, Clutch Housing, No.1	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
31121-52040	Cover, Clutch Housing, No.5	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
31121-52050	Cover, Clutch Housing, No.2	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
31121-52060	Cover, Clutch Housing, No.3	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
31121-52070	Cover, Clutch Housing, No.4	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
31121-52080	Cover, Clutch Housing, No.1	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
33109-20020	Separator Sub-Assy, Manual Transmission Oil	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
33109-52010	Separator Sub-Assy, Manual Transmission Oil	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
33111-0D100	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
33111-12291	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
33111-20221	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
33124-0D040	Pipe, Oil Receiver, No.1(Mtm)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
33124-20080	Pipe, Oil Receiver, No.1(Mtm)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
33176-20080	Separator, Transmission Oil(Mtm)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
33176-20090	Separator, Transmission Oil(Mtm)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
33403-0D020	Cover Sub-Assy, Speedometer Driven Hole	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
33403-35230	Cover Sub-Assy, Speedometer Driven Hole	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
33449-20010	Magnet, Transmission	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90105-T0079	Bolt, No.2(For Alternator)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90105-T0118	BOLT FLANGE	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90105-T0121	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90105-T0211	Bolt(For Alternator)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90105-W0035	Bolt(For Manual Transmission Oil Separator)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90119-T0225	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90250-08054	Pin, Straight	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90311-35066	Oil Seal, Front Drive Shaft, Lh	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90311-35075	Oil Seal, Front Drive Shaft, Lh	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90311-T0085	Seal, Oil(For Transmission Case)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90341-14032	Plug, W/head Taper Screw, No.1	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90341-18006	Plug (No magnet)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90341-18023	Plug, W/head Straight Screw, No.1	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90341-18033	Plug(For Manual Transmission Filler)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90430-14003	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90430-T0011	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90430-T0026	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
90930-03133	Plug, Breather	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
91551-10840	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
91551-80816	Bolt(For Manual Transmission Oil Separator)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
91551-80825	Bolt(For Cylinder Head Set Sub)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
91552-81045	Bolt, No.1(For Alternator)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
91552-81080	Bolt(For Alternator)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
91612-61045	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
96711-24030	Ring,o (For Speedometer Driven Hole Cover)	Clutch Housing & Transmission Case (Mtm) ([08.2011 - ] EC55 (1108- )NUK1#)
