NUK10

Toyota ETIOS-LIVA-CROSS · 2011 · 2,510 parts · 167 categories

2,510 items

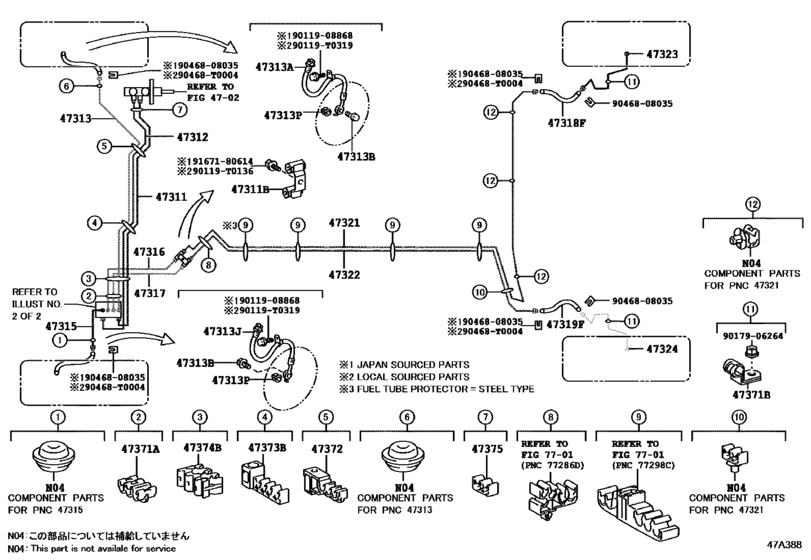

Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA) 37

#	OEM	Part name
47311	47311-0D390	Tube, Front Brake, No.1
47311	47311-0DB10	Tube, Front Brake, No.1
47311	90412-10285	Way, No.1(For Front Brake Tube)
47312	47312-0D330	Tube, Front Brake, No.2
47312	47312-0DA40	Tube, Front Brake, No.2
47313	47313-0D260	Tube, Front Brake, No.3
47313	47313-0D860	Tube, Front Brake, No.3
47313	90947-T2064	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-T2065	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47315	47315-0D300	Tube, Front Brake, No.5
47315	47315-0D840	Tube, Front Brake, No.5
47316	47316-0D230	Tube, Front Brake, No.6
47316	47316-0D750	Tube, Front Brake, No.6
47317	47317-0D230	Tube, Front Brake, No.7
47317	47317-0D750	Tube, Front Brake, No.7
47318	90947-T2066	Hose, Clutch
47321	47321-0D150	Tube, Rear Brake, No.1
47322	47322-0D150	Tube, Rear Brake, No.2
47323	47323-0D170	Tube, Rear Brake, No.3
47324	47324-0D170	Tube, Rear Brake, No.4
47371	90464-00868	Clamp, Brake Tube, No.1
47371	90461-10781	Clamp, Brake Tube, No.6
47372	90949-01D02	Clamp, Brake Tube, No.2
47373	90949-01D44	Clamp, Brake Tube, No.5
47374	90949-01969	Clamp, Brake Tube, No.6
47374	90080-46365	Clamp, Brake Tube, No.5
47375	90949-01972	Grommet, No.1(For Front Brake Tube)
90119	90119-T0136	New Genuine Part
90119	90119-T0319	New Genuine Part
90468	90468-T0004	CLIP
9011908868	90119-08868	BOLT WWASHER
9017906264	90179-06264	NUT, WWASHER
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
47311-0D390	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47311-0DB10	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47312-0D330	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47312-0DA40	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47313-0D260	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47313-0D860	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47315-0D300	Tube, Front Brake, No.5	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47315-0D840	Tube, Front Brake, No.5	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47316-0D230	Tube, Front Brake, No.6	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47316-0D750	Tube, Front Brake, No.6	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47317-0D230	Tube, Front Brake, No.7	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47317-0D750	Tube, Front Brake, No.7	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47321-0D150	Tube, Rear Brake, No.1	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47322-0D150	Tube, Rear Brake, No.2	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47323-0D170	Tube, Rear Brake, No.3	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47324-0D170	Tube, Rear Brake, No.4	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90080-46365	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90119-T0136	New Genuine Part	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90119-T0319	New Genuine Part	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90179-06264	NUT, WWASHER	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90412-10285	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90461-10781	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90464-00868	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90468-08035	CLIP	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90468-T0004	CLIP	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90947-T2064	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90947-T2065	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90947-T2066	Hose, Clutch	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90949-01969	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90949-01972	Grommet, No.1(For Front Brake Tube)	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90949-01D02	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
90949-01D44	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([09.2016 - ] W(ABS) (1609- )IND,SA)
